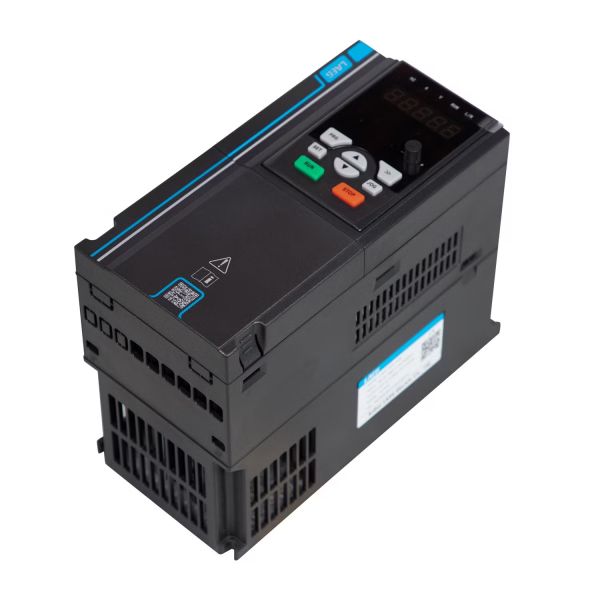

380V 50Hz / 60Hz VFD AC Drive 3 Phase 22kw VFD For Water Pump
380V 50Hz / 60Hz VFD AC Drive 3 Phase 22kw VFD For Water Pump
380V 50Hz / 60Hz VFD AC Drive 3 Phase 22kw VFD For Water Pump
380V 50Hz / 60Hz VFD AC Drive 3 Phase 22kw VFD For Water Pump
380V 50Hz / 60Hz VFD AC Drive 3 Phase 22kw VFD For Water Pump
380V 50Hz / 60Hz VFD AC Drive 3 Phase 22kw VFD For Water Pump
380V 50Hz / 60Hz VFD AC Drive 3 Phase 22kw VFD For Water Pump
380V 50Hz / 60Hz VFD AC Drive 3 Phase 22kw VFD For Water Pump
380V 50Hz / 60Hz VFD AC Drive 3 Phase 22kw VFD For Water Pump
380V 50Hz / 60Hz VFD AC Drive 3 Phase 22kw VFD For Water Pump
380V 50Hz / 60Hz VFD AC Drive 3 Phase 22kw VFD For Water Pump
380V 50Hz / 60Hz VFD AC Drive 3 Phase 22kw VFD For Water Pump
Specifications
Displaytype :
LCD or LED display
Packaging Specifications :
50ml~1000ml
Input Voltage :
220V to 380V
Frequency Resolution :
0.01Hz
Shipping Method :
DHL/FedEx/EMS/TNT
Controlmethod :
V/f control, Vector control, Sensorless vector control
Brand Name :
LAEG
Model Number :
LD350-022G-T4B
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
243 USD
Payment Terms :
L/C,T/T
Supply Ability :
5000/Months
Delivery Time :
15days
Packaging Details :
12*9*9 cm
Energy Regeneration :
Four-quadrant
Powerrating :
0.5 kW to 500 kW
Power Range :
2.2KW-5000KW
Output Phase :
3phase
Output Power :
0.75KW-55KW
Voltage :
220V,380V,400V,415V,440V,460V,480V
Model No :
N310-20P5
Drive Type :
Frequency Inverter
Name :
Variable Frequency Drive
Energy Function :
Four-quadrant Energy regeneration
Insulation Voltage :
800V/1600V
Size :
167.5*185.8*80mm
Response Speed :
Rapid
Motor Compatibility :
PMSM Motor
Accuracy :
0.5% for VF application
Inputfrequency :
50/60 Hz
Torque Control :
Direct
Colour :
grey
Humidityrange :
5% to 95% non-condensing
Protectionfeatures :
Overvoltage, undervoltage, overload, short circuit, phase loss
Output Voltage :
Customizable
Application :
Pumps,fans,compresors,conveyors,Crane
Description
3-Phase 380V 50/60Hz 22kw VFD AC Drive Variable Frequency Inverter for Water-Pump
Product Overview
The LD350-022G-T4B variable frequency drive features advanced vector control technology with PWM control for precise motor speed regulation. Designed for water pump applications, this industrial-grade inverter delivers reliable performance in demanding environments.
Technical Specifications
Parameter Specification
Model LD350-022G-T4B
Control Principle Vector Control Transducer
Switch Mode PWM Control
Power Supply Voltage Low Voltage (380V, Customizable)
Output Frequency Range 0.01-400 Hz
Protection Degree IP55/65
Brand Laeg
Origin Anhui, China
Detailed Model Specifications - AD10-4R0G-T4-B
380V 50Hz / 60Hz VFD AC Drive 3 Phase 22kw VFD For Water Pump
Parameter Value
Motor Power 4 kW / 5 HP
Rated Output Capacity 5.9 KVA
Rated Output Current 9 A
Output Frequency 0.01-400 Hz
Carrier Frequency 1-16 kHz
Overload Capacity 150% for 60s, 200% for 3s
Input Current 10.5 A
Input Voltage & Frequency 3 Phase 380V, 50-60Hz
Voltage Range 315-450V
Cooling System Forced Air Cooling
Brake Unit Built-in
Complete Product Series Specifications
Input Voltage/Frequency Model Input Current (A) Motor Power (KW) Motor Horsepower (HP) Rated Output Capacity (KVA) Output Current (A)
1AC 220V 50/60Hz AD10-0R7G-S2B 8.2 0.75 1 1.5 4
AD10-1R5G-S2B 14 1.5 2 3 7
AD10-2R2G-S2B 23 2.2 3 4 9.6
3AC 380V 50/60Hz AD10-0R7G-T4B 3.4 0.75 1 1.5 2.1
AD10-1R5G-T4B 5 1.5 2 3 3.8
AD10-2R2G-T4B 5.8 2.2 3 4 5.1
AD10-4R0G-T4B 10.5 3.7 5 5.9 9
AD10-5R5G-T4B 14.6 5.5 7.5 8.9 13
AD10-7R5G-T4B 20.5 7.5 10 11 17
AD10-011G-T4B 26 11 15 17 25
Key Advantages
  • Compact Design: 30% smaller than comparable inverters with advanced modular construction
  • Enhanced Excitation Performance: Automatic motor excitation current adjustment for improved efficiency
  • Multiple Display Options: Digital or LCD operation panels for comprehensive parameter monitoring
  • Universal Motor Compatibility: Supports three-phase asynchronous, permanent magnet synchronous, and servo motors
  • High Reliability: Long-life components and robust construction with ROHS compliance and CE certification
Manufacturer Profile
380V 50Hz / 60Hz VFD AC Drive 3 Phase 22kw VFD For Water Pump
With over 55 years of industrial experience, Lu'an Jianghuai Motor is a leading manufacturer in the motor industry. ANHUI LAEG, as a specialized branch, focuses exclusively on variable frequency drive production with over 20 years of expertise. Our comprehensive product range serves diverse industries including power generation, metallurgy, mining, petroleum, chemical processing, and water management.
Application Areas
380V 50Hz / 60Hz VFD AC Drive 3 Phase 22kw VFD For Water Pump
Manufacturing Facility
380V 50Hz / 60Hz VFD AC Drive 3 Phase 22kw VFD For Water Pump 380V 50Hz / 60Hz VFD AC Drive 3 Phase 22kw VFD For Water Pump 380V 50Hz / 60Hz VFD AC Drive 3 Phase 22kw VFD For Water Pump 380V 50Hz / 60Hz VFD AC Drive 3 Phase 22kw VFD For Water Pump
Quality Certifications
380V 50Hz / 60Hz VFD AC Drive 3 Phase 22kw VFD For Water Pump
Our products meet international standards with CE, ISO9001, and CCC certifications.
Packaging
380V 50Hz / 60Hz VFD AC Drive 3 Phase 22kw VFD For Water Pump
Frequently Asked Questions
Are you a factory or trading company?
LU'AN JIANGHUAI is a factory that has been focusing on motors and accessories for more than 50 years.
What about the warranty?
We offer 12 month warranty period as the quality guarantee.
Can you do OEM?
Yes, we offer OEM services.
How about your service?
We provide comprehensive pre-sale, in-sale, and after-sale service with a customer-first principle for long-term cooperation.
What are your terms of delivery?
Generally we ship FOB, but we can accommodate CNF, CIF, and DDP terms based on your requirements.
What's the delivery time?
15 to 35 days after receiving your payment in advance.
