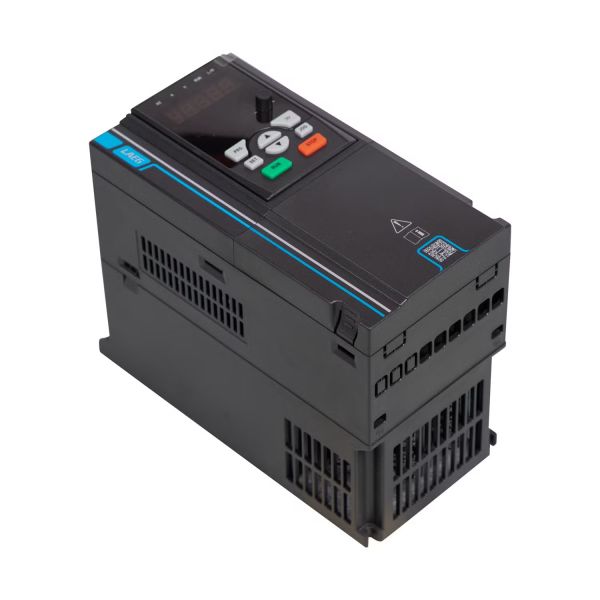

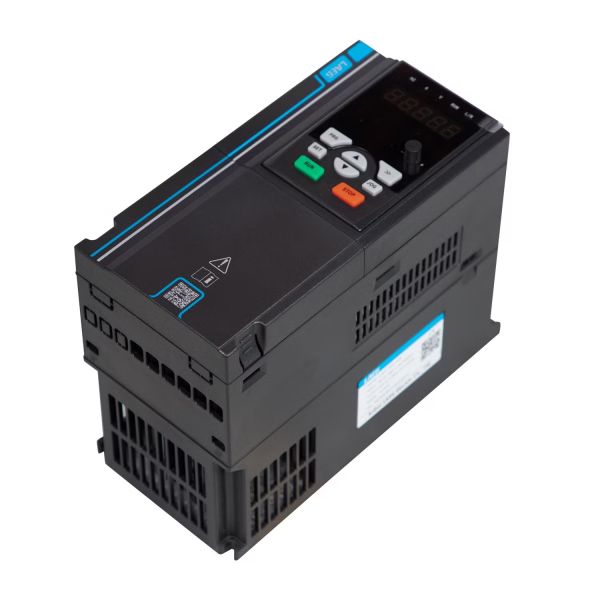

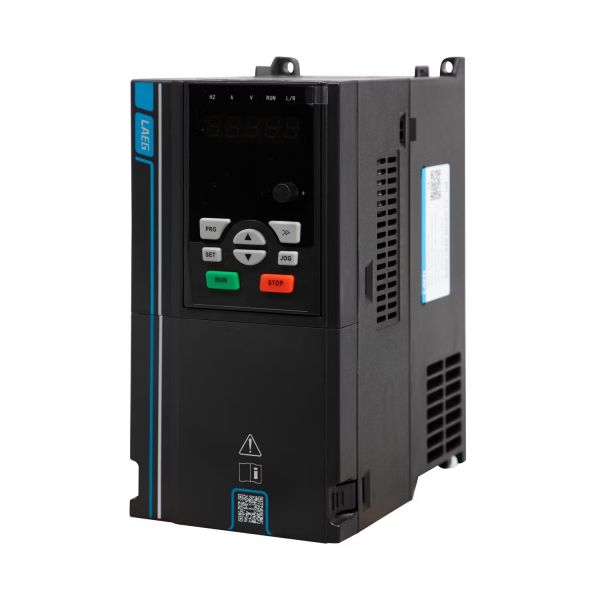

7.5kw 380V VFD High Efficiency Vector Control VFD With IP55 / IP65 Protection
7.5kw 380V VFD High Efficiency Vector Control VFD With IP55 / IP65 Protection
7.5kw 380V VFD High Efficiency Vector Control VFD With IP55 / IP65 Protection
7.5kw 380V VFD High Efficiency Vector Control VFD With IP55 / IP65 Protection
7.5kw 380V VFD High Efficiency Vector Control VFD With IP55 / IP65 Protection
7.5kw 380V VFD High Efficiency Vector Control VFD With IP55 / IP65 Protection
7.5kw 380V VFD High Efficiency Vector Control VFD With IP55 / IP65 Protection
7.5kw 380V VFD High Efficiency Vector Control VFD With IP55 / IP65 Protection
7.5kw 380V VFD High Efficiency Vector Control VFD With IP55 / IP65 Protection
7.5kw 380V VFD High Efficiency Vector Control VFD With IP55 / IP65 Protection
7.5kw 380V VFD High Efficiency Vector Control VFD With IP55 / IP65 Protection
7.5kw 380V VFD High Efficiency Vector Control VFD With IP55 / IP65 Protection
Specifications
Motor Compatibility :
PMSM Motor
Insulation Voltage :
800V/1600V
Displaytype :
LCD or LED display
Power Range :
2.2KW-5000KW
Drive Type :
Frequency Inverter
Application :
Pumps,fans,compresors,conveyors,Crane
Controlmethod :
V/f control, Vector control, Sensorless vector control
Packaging Specifications :
50ml~1000ml
Output Power :
0.75KW-55KW
Accuracy :
0.5% for VF application
Inputfrequency :
50/60 Hz
Colour :
grey
Output Phase :
3phase
Shipping Method :
DHL/FedEx/EMS/TNT
Energy Regeneration :
Four-quadrant
Energy Function :
Four-quadrant Energy regeneration
Voltage :
220V,380V,400V,415V,440V,460V,480V
Protectionfeatures :
Overvoltage, undervoltage, overload, short circuit, phase loss
Response Speed :
Rapid
Torque Control :
Direct
Humidityrange :
5% to 95% non-condensing
Frequency Resolution :
0.01Hz
Model No :
N310-20P5
Brand Name :
LAEG
Model Number :
LD350-7R5G-T4B
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
104 USD
Payment Terms :
L/C,T/T
Supply Ability :
5000/Months
Delivery Time :
15days
Packaging Details :
12*9*9 cm
Powerrating :
0.5 kW to 500 kW
Output Voltage :
Customizable
Name :
380V VFD
Input Voltage :
220V to 380V
Size :
167.5*185.8*80mm
Description
High Efficiency 7.5kw 380V Variable Frequency Drive with IP55/65 Protection and Vector Control
The LD350 series variable frequency drive offers advanced vector control technology for precise motor speed regulation in industrial applications.
Product Specifications
Model NumberLD350-7R5G-T4B
Working PrincipleVector Control Transducer
Switch ModePWM Control
Main Circuit TypeCurrent
Power Supply VoltageLow Voltage Variable-Frequency Drive
Transformation LinkAC-DC-AC Variable-Frequency Drive
DC Power NatureCurrent Variable-Frequency Drive
FunctionSimple Type
BrandLaeg
Protection DegreeIP55/65
Voltage380V, or Customized
Frequency50Hz, 60Hz
Output Frequency0.01-400 Hz
Transport PackageWooden Cases
Specification12*9*9 cm
TrademarkLAEG
OriginAnhui, China
HS Code8504400090
Production Capacity5000/Month
Company Profile
7.5kw 380V VFD High Efficiency Vector Control VFD With IP55 / IP65 Protection
With over 55 years of construction and development, Lu'an Jianghuai Motor has become the largest industrialized enterprise in the small, medium and large motor industry, offering the most complete product series and comprehensive service network. Our product range includes various high-efficiency and energy-saving low-voltage/high-voltage motors, DC motors, high-efficiency explosion-proof motors, special motors, permanent magnet motors, and other synchronous/asynchronous motors. ANHUI LAEG is the branch of Luan Jianghuai Motor Company, specializing in VFD production for over 20 years.
Inverter Advantages
  • Compact Size: Advanced modular design saves over 30% volume compared to same-power inverters, providing flexible installation options
  • Enhanced Excitation Performance: Automatically adjusts motor excitation current to improve efficiency and save energy during light loads
  • Multiple Display Options: Choose between digital or LCD operation panels for better parameter visibility and convenient maintenance
  • Universal Drive Compatibility: Operates three-phase asynchronous motors, permanent magnet synchronous motors, and servo motors in sensorless mode for optimal energy savings
  • High Reliability: Features long-life fans, capacitors, and enhanced substrate coatings for improved durability and resistance; meets ROHS environmental standards and CE certification
Detailed Specifications
ModelAD10-4R0G-T4-B
Motor Power (kW/HP)4/5
Rated Output Capacity (KVA)5.9
Rated Output Current (A)9
Output Frequency (Hz)0.01~400
Carrier Frequency Range (KHz)1~16
Overload Capacity150% rated current for 60s, 200% rated current for 3s
Input Current (A)10.5
Input Voltage & Frequency3 phase 380V, 50~60Hz
Voltage Range315V~450V
Cooling SystemForced cold air
Brake UnitIn-built
Technical Specifications Table
Input Voltage FrequencyModelInput Current (A)Motor Power (KW)Motor Horsepower (HP)Rated Output Capacity (KVA)Output Current (A)Output FrequencyCarrier Frequency
1AC 220V 50/60HzAD10-0R7G-S2B8.20.7511.540.1-400Hz1-16KHz
AD10-1R5G-S2B141.5237
AD10-2R2G-S2B232.2349.6
3AC 380V 50/60HzAD10-0R7G-T4B3.40.7511.52.10.1-400Hz1-16KHz
AD10-1R5G-T4B51.5233.8
AD10-2R2G-T4B5.82.2345.1
AD10-4R0G-T4B10.53.755.99
AD10-5R5G-T4B14.65.57.58.913
AD10-7R5G-T4B20.57.5101117
AD10-011G-T4B2611151725
Applications
7.5kw 380V VFD High Efficiency Vector Control VFD With IP55 / IP65 Protection
Our motors and drives are widely applied in power stations, metallurgy, steel, sugar making, coal mining, machinery, petroleum, chemical engineering, water conservancy, cement, papermaking, environmental protection, and pharmaceutical industries.
Factory Environment
7.5kw 380V VFD High Efficiency Vector Control VFD With IP55 / IP65 Protection 7.5kw 380V VFD High Efficiency Vector Control VFD With IP55 / IP65 Protection 7.5kw 380V VFD High Efficiency Vector Control VFD With IP55 / IP65 Protection 7.5kw 380V VFD High Efficiency Vector Control VFD With IP55 / IP65 Protection
Certifications
Our products meet international standards including CE, ISO9001, CCC and other certifications.
7.5kw 380V VFD High Efficiency Vector Control VFD With IP55 / IP65 Protection
Packaging
7.5kw 380V VFD High Efficiency Vector Control VFD With IP55 / IP65 Protection
Frequently Asked Questions
Are you a factory or trading company?
LU'AN JIANGHUAI is a factory that has been focusing on motors and accessories for more than 50 years.
What about the warranty?
We offer 12 month warranty period as the quality guarantee.
Can you do OEM?
Yes, we offer OEM services.
How about your service?
We provide comprehensive pre-sale, in-sale, and after-sale service. Our principle is customer first, focusing on long-term cooperation.
What are your terms of delivery?
Generally we ship FOB, but we can also arrange CNF, CIF and DDP based on your requirements.
What's the delivery time?
15 to 35 days after receiving your payment in advance.
