P1.25 Fine Pitch Indoor LED Display Full Color Video Wall HD Screen
P1.25 Fine Pitch Indoor LED Display Full Color Video Wall HD Screen
P1.25 Fine Pitch Indoor LED Display Full Color Video Wall HD Screen
P1.25 Fine Pitch Indoor LED Display Full Color Video Wall HD Screen
P1.25 Fine Pitch Indoor LED Display Full Color Video Wall HD Screen
P1.25 Fine Pitch Indoor LED Display Full Color Video Wall HD Screen
P1.25 Fine Pitch Indoor LED Display Full Color Video Wall HD Screen
P1.25 Fine Pitch Indoor LED Display Full Color Video Wall HD Screen
P1.25 Fine Pitch Indoor LED Display Full Color Video Wall HD Screen
P1.25 Fine Pitch Indoor LED Display Full Color Video Wall HD Screen
P1.25 Fine Pitch Indoor LED Display Full Color Video Wall HD Screen
P1.25 Fine Pitch Indoor LED Display Full Color Video Wall HD Screen
P1.25 Fine Pitch Indoor LED Display Full Color Video Wall HD Screen
P1.25 Fine Pitch Indoor LED Display Full Color Video Wall HD Screen
Specifications
Model Number :
ABXING 480A series
cabinet Size :
640*480mm
MOQ :
4
Delivery Time :
15-18 Working day
Grey Level :
14 bits
Service Access :
Front
Payment Terms :
T/T,Western Union
IP rating :
IP31
Price :
$230-$580
Operation power voltage :
100-240V/50-60Hz
Supply Ability :
Monthly production capacity: 5000 pieces
Weight :
13.5
Certification :
CE/FCC/CCC/EMC
LED lifetime :
100,000h
Place of Origin :
China
Brightness :
800nits
Brand Name :
ABXING LED
Pixel pitch(mm) :
P1.25 P1.5 P1.86 P2.0 P2.5
Packaging Details :
flight case/Environmentally friendly wooden case
Warranty :
3Year
Description
Indoor P1.25 LED Display Screen Full Color Video Wall ABXING 480A Series
The ABXING 480A Series is a 640*480mm indoor fine-pitch LED display that redefines what's possible for fixed installations. Featuring an integrated die-cast aluminum cabinet with magnetic front-service design, this ultra-thin panel delivers 4K-ready visual performance in a remarkably compact form factor. With support for pixel pitches ranging from P1.25 to P2.5 and compatibility with standard 320*160mm modules, the 480A Series offers exceptional versatility for corporate environments, broadcast studios, control rooms, and high-end retail spaces—all at a compelling price point.
P1.25 Fine Pitch Indoor LED Display Full Color Video Wall HD Screen
Key Specifications
ParameterDetail
Cabinet Size640mm * 480mm (4:3 golden ratio)
Module Size320mm * 160mm (standardized, widely available)
Pixel Pitch OptionsP1.25, P1.538, P1.86, P2.0, P2.5
ThicknessUltra-slim design
Cabinet Weight7.5kg - lightweight for single-person handling
Service AccessFull front maintenance (modules, PSU, receiving card)
BrightnessUp to 800 cd/m² - suitable for indoor environments with ambient light
Viewing Angle140° horizontal * 140° vertical
Cabinet ConstructionDie-cast aluminum alloy - high precision, excellent flatness
Splicing FlexibilitySupports 90° corner splicing for creative installations
Premium Construction
The 480A Series is built around a high-precision die-cast aluminum cabinet that ensures exceptional flatness and structural stability. This manufacturing process delivers tight tolerances, minimizing seams between cabinets for a truly seamless display surface. The aluminum construction also provides excellent heat dissipation, contributing to the panel's long-term reliability and consistent performance—even during extended operation.
P1.25 Fine Pitch Indoor LED Display Full Color Video Wall HD Screen
Full Front Maintenance
One of the standout features of the 480A Series is its magnetic-suction front-service design. Every critical component—including LED modules, power supply units, and receiving cards—can be accessed, removed, and replaced entirely from the front of the display. This eliminates the need for rear corridors or access hatches, making the 480A ideal for wall-mounted installations in space-constrained venues. The magnetic module attachment also allows for tool-free removal and reseating, reducing maintenance time from hours to minutes.
P1.25 Fine Pitch Indoor LED Display Full Color Video Wall HD Screen
4:3 Golden Ratio Design
The 640*480mm cabinet follows the classic 4:3 aspect ratio, which serves as the ideal building block for both 4:3 and 16:9 screen configurations. Whether you're constructing a Full HD 1920*1080 wall or a traditional presentation display, the modular math works seamlessly—no awkward cropping, no distorted content scaling. This thoughtful design ensures that your content appears exactly as intended, every time.
P1.25 Fine Pitch Indoor LED Display Full Color Video Wall HD Screen
Multiple Pixel Pitch Options
The 480A Series supports five pixel pitch options to match your specific viewing distance and resolution requirements:
  • P1.25 - Ultra-fine pitch for premium 4K experiences in close-proximity viewing (control rooms, broadcast studios)
  • P1.538 - Ideal for corporate lobbies and high-end retail where image detail is paramount
  • P1.86 - A versatile sweet spot for conference rooms and exhibition spaces
  • P2.0 - Cost-effective solution for medium-distance viewing environments
  • P2.5 - Excellent value for large-format indoor displays where viewers are farther away
All pitches share the same cabinet dimensions and mounting system, allowing you to standardize on one cabinet platform across multiple projects with different resolution needs.
Ultra-Thin & Lightweight Design
At just 7.5kg per cabinet, the 480A is exceptionally lightweight for its class. The integrated quick-lock mechanism enables tool-free assembly, reducing installation time and labor costs. One person can handle, mount, and connect multiple cabinets with ease. The ultra-thin profile also means the display sits closer to the wall, creating a sleek, modern aesthetic that blends seamlessly with interior architecture.
P1.25 Fine Pitch Indoor LED Display Full Color Video Wall HD Screen
Cinematic Visual Performance
The 480A Series delivers a truly immersive viewing experience with:
  • High brightness (up to 800 cd/m²) - ensures visibility even in brightly lit indoor environments
  • Exceptional refresh rate - eliminates flicker and motion blur, perfect for broadcast and camera capture
  • High grayscale processing - produces smooth gradients, deep blacks, and vibrant colors
  • Wide 140° viewing angle - maintains color accuracy and contrast from virtually any seat in the room
The result is a cinema-like visual experience that captivates audiences—whether you're presenting a quarterly earnings report, broadcasting live news, or showcasing a luxury brand campaign.
P1.25 Fine Pitch Indoor LED Display Full Color Video Wall HD Screen
90° Corner Splicing Capability
Unlike traditional flat-panel displays, the 480A Series supports 90° corner splicing, enabling innovative L-shaped, U-shaped, or wrap-around display configurations. This feature is particularly valuable for:
  • Retail environments - create immersive corner displays that wrap around store pillars
  • Exhibition booths - design standout L-shaped video walls that attract foot traffic
  • Corporate lobbies - build unique architectural installations that reinforce brand identity
  • Event staging - deliver creative visual layouts that break away from rectangular conventions
This flexibility allows designers and integrators to maximize available space and create installations that are as functional as they are visually striking.
Competitive Cost Advantage
The 480A Series delivers exceptional value through thoughtful engineering and standardized components. By using widely available 320*160mm modules and a streamlined cabinet design, ABXING achieves significant economies of scale—savings that we pass directly to our customers. You get premium die-cast aluminum construction, front-service convenience, and outstanding visual performance at a price point that makes sense for both large-scale deployments and budget-conscious projects.
P1.25 Fine Pitch Indoor LED Display Full Color Video Wall HD Screen

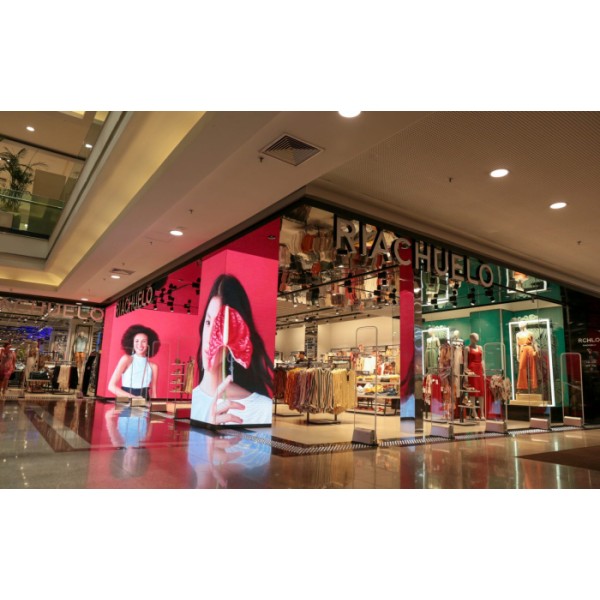

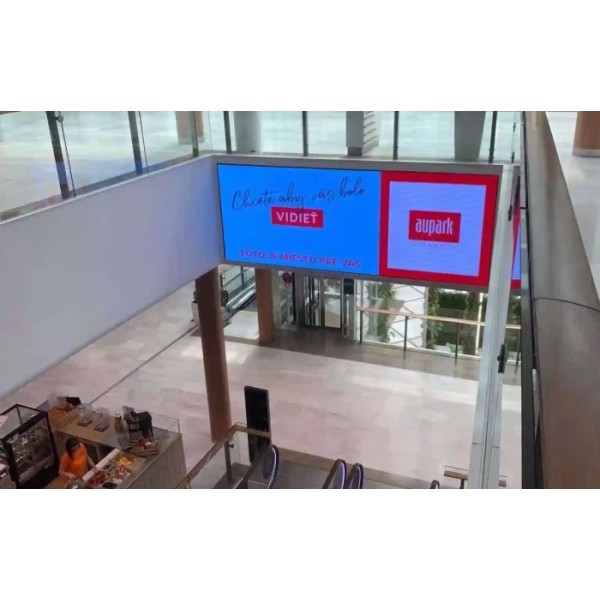

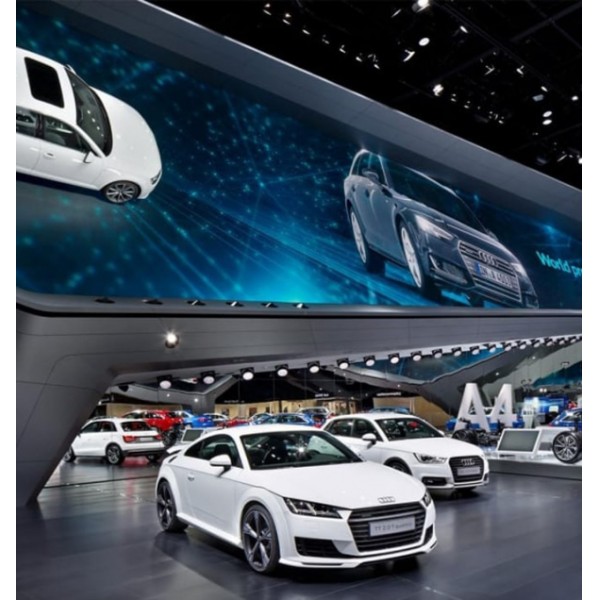

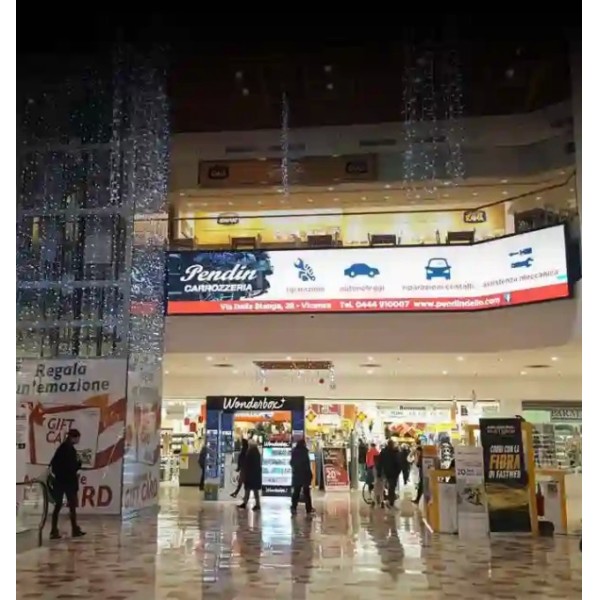

Typical Applications
  • Corporate Headquarters - lobby video walls, executive briefing centers, digital signage
  • Broadcast & TV Studios - virtual set backgrounds, production displays, newsroom monitors
  • Control Rooms & NOCs - real-time data visualization and monitoring walls
  • Retail & Luxury Stores - window displays, in-store promotional screens, interactive kiosks
  • Conference & Meeting Rooms - presentation displays, video conferencing backdrops
  • Exhibition & Trade Shows - booth displays, product demonstration walls
  • Education & Lecture Halls - large-format teaching screens
P1.25 Fine Pitch Indoor LED Display Full Color Video Wall HD Screen
Why Choose ABXING?
As a dedicated LED display manufacturer, ABXING combines years of engineering expertise with rigorous quality assurance. Each 480A cabinet undergoes comprehensive burn-in testing, color calibration, and structural inspection before shipping. We offer global logistics support, responsive technical assistance, and customized solutions to meet your specific project requirements.
Get in Touch
Ready to elevate your indoor visual experience? Contact our sales team today for pricing, technical datasheets, or to request a sample unit. Discover why ABXING is the trusted partner for LED display solutions worldwide.
