P10 P8 Rear Service LED Display High Brightness Outdoor Advertising Video Wall ABXING OD Series

Specifications

Model Number :

ABXING OD Series

Module Size (mm) :

320x160

MOQ :

Delivery Time :

15-18 Working day

Brightness (CD/㎡) :

5000Nits-10000Nits

Protection Grade :

IP65

Payment Terms :

Western Union,T/T

Refresh Frequency (Hz) :

3840Hz-7680Hz

Color Temperature :

3000-10000 K

Supply Ability :

Monthly production capacity: 5000 pieces

Working Temperature (ºC) :

-20～+60

Warranty :

3Year

Certification :

CE/FCC/CCC/EMC

Cabinet Size (mm) :

960*960

Place of Origin :

China

Cabinet Weight (KG) :

30KG

Price :

$420-$980

Operation Power :

AC100-240V 50-60Hz

Brand Name :

ABXING LED

Pixel Pitch (mm) :

P10,P8,P6.667,P5,P4,P3.076,P2.5

Packaging Details :

Environmentally friendly wooden case

Maintenance method :

Rear/Front

Description

ABXING OD Series Outdoor Advertising LED Display

Product Overview

Professional-grade outdoor LED display featuring robust magnesium alloy cabinet, engineered for both fixed installations and rental scenarios. Combines superior durability with user-friendly operation for reliable performance across diverse advertising and event applications.

P10 P8 Rear Service LED Display High Brightness Outdoor Advertising Video Wall ABXING OD Series

Application	Outdoor large-scale advertisements, outdoor commercial plazas
Type Name	ABXING OD Series High brightness Front/Rear Service outdoor LED Display
Pixel Pitch	P10mm, P8mm, P6.667mm, P5mm, P4mm, P3, P3.076, P2.5

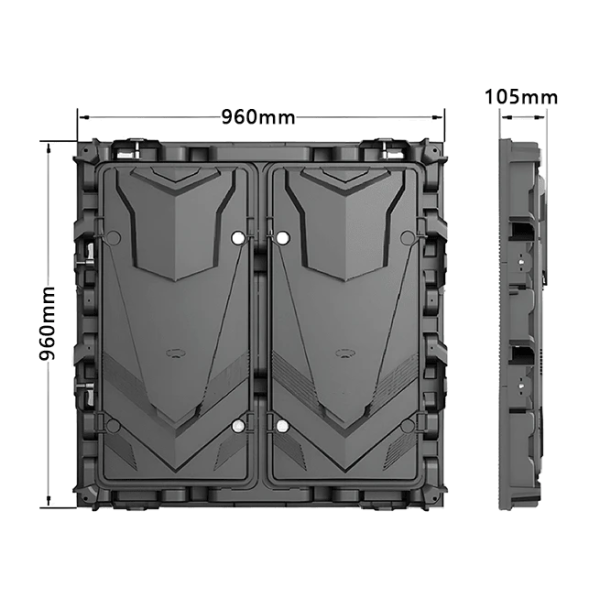

Cabinet Size	960×960mm, 1280×960mm, or 640×960mm

P10 P8 Rear Service LED Display High Brightness Outdoor Advertising Video Wall ABXING OD Series

Key Features

Easy to assemble with ultra slim & light cabinet design
High resolution and high refresh rate
Energy saving operation
Front/Rear service access
Excellent heat dissipation performance extends display lifespan
Corrosion-resistant and rust-proof construction

P10 P8 Rear Service LED Display High Brightness Outdoor Advertising Video Wall ABXING OD Series

Optimized Structural Design

Advanced Material Construction

Magnesium alloy cabinet provides exceptional strength-to-weight ratio with corrosion-resistant properties for long-term outdoor reliability.

Efficient Thermal Management

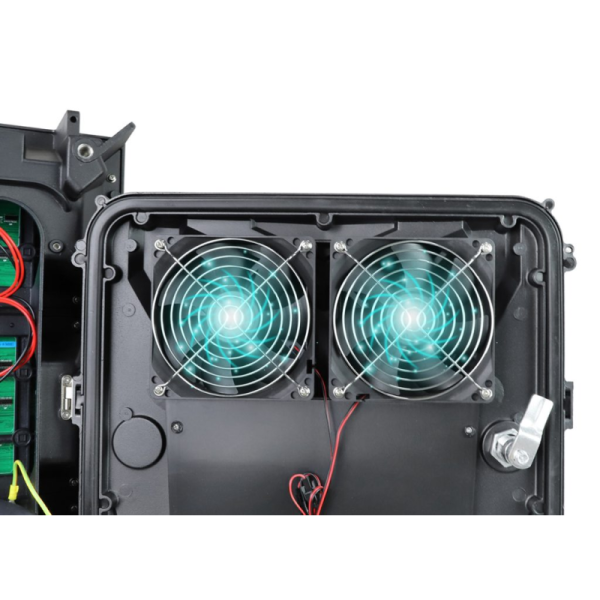

Quad-wing fan system with optimized airflow design prevents heat buildup during extended operation, maintaining consistent performance.

Streamlined Operation Features

Rapid Deployment System

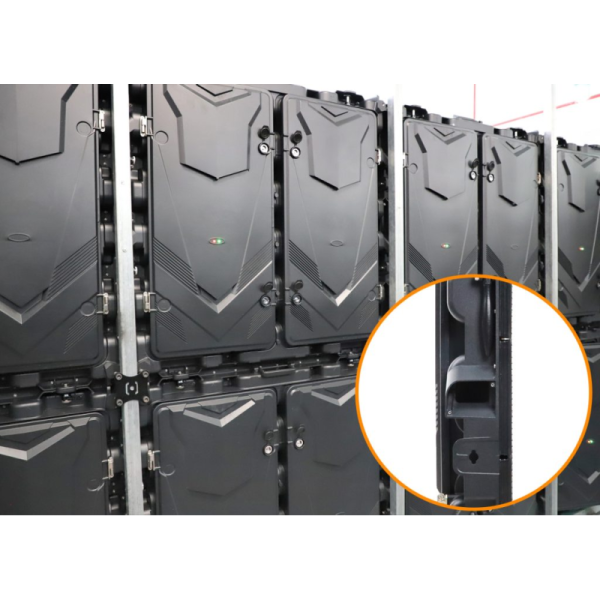

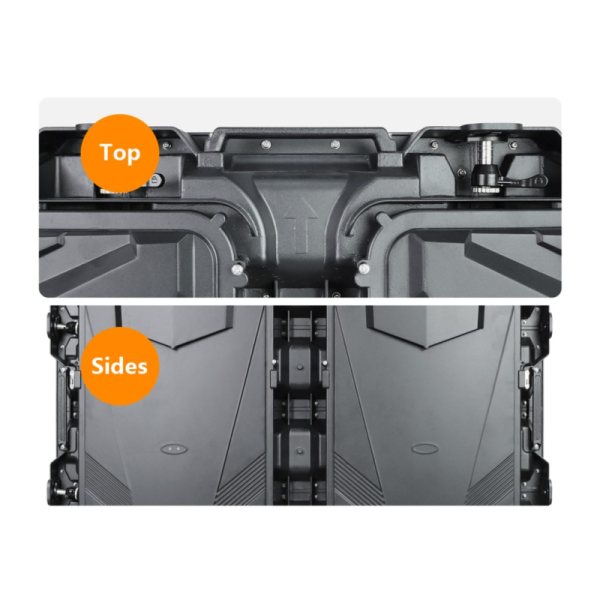

Bilateral quick-lock mechanisms enable fast panel connection with tool-free assembly and precision alignment guides.

Accessible Maintenance Design

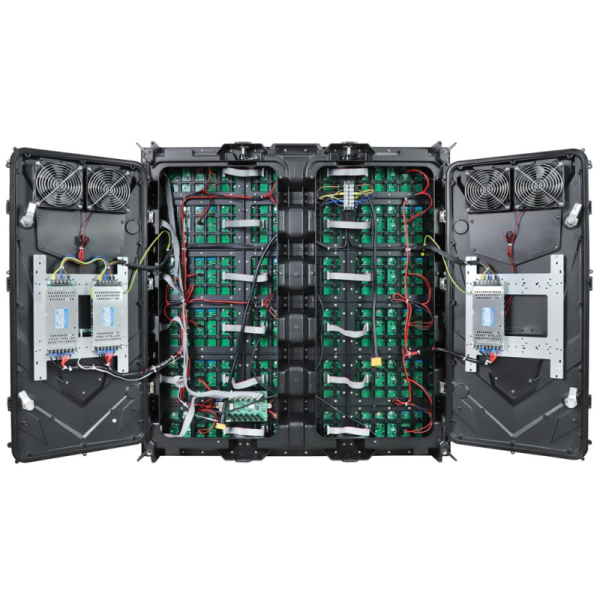

Quick-release back cover provides immediate component access with front-serviceable components to minimize operational downtime.

Professional Performance Characteristics

Superior Environmental Protection

IP65 certified sealing protects against dust and water ingress with weather-resistant construction for diverse climate conditions.

Enhanced Visual Performance

High brightness output maintains visibility in direct sunlight with advanced refresh rates and vivid color reproduction.

P10 P8 Rear Service LED Display High Brightness Outdoor Advertising Video Wall ABXING OD Series

Application Versatility

Commercial Advertising

Shopping center promotional displays, retail district digital signage, commercial plaza information centers, and street-level advertising installations.

Event and Entertainment

Stage production backgrounds, concert and festival video displays, corporate event presentations, and temporary exhibition displays.

Public Space Utilization

Municipal information displays, transportation hub scheduling, sports venue scoring systems, and educational institution communication boards.

Operational Advantages

Reduced labor costs through simplified assembly process
Faster project completion with quick-connect systems
Accessible components reduce service time and costs
Modular design enables targeted repairs and replacements
Long service intervals through reliable component selection

P10 P8 Rear Service LED Display High Brightness Outdoor Advertising Video Wall ABXING OD Series

Frequently Asked Questions

What advantages does magnesium alloy provide?

The magnesium alloy construction offers exceptional durability while maintaining lightweight characteristics, making it ideal for both permanent installations and frequent transport in rental scenarios.

How effective is the thermal management system?

The four-wing fan configuration ensures adequate heat dissipation even during extended operation in high-temperature environments, maintaining optimal performance and component longevity.

What installation time can typically be expected?

The quick-lock system enables experienced crews to assemble multiple cabinets rapidly, with typical installation times significantly reduced compared to traditional bolt-together systems.

Can the display withstand adverse weather conditions?

With IP65 protection rating, the display operates reliably in rain, dust, and other challenging environmental conditions, ensuring consistent performance year-round.

P10 P8 Rear Service LED Display High Brightness Outdoor Advertising Video Wall ABXING OD Series

Professional Outdoor Advertising Solution

The ABXING OD Series represents a sophisticated approach to outdoor LED display technology, combining robust construction with operational simplicity. Its versatile design accommodates both permanent installations and rental requirements, delivering outstanding visual impact while ensuring reliable performance in diverse advertising applications.

Connect with our display specialists to explore how the OD Series can enhance your advertising capabilities and deliver exceptional visual experiences in your specific application environment.
