Full Color SMD LED Screen P1.25 P1.5 P1.86 P2.0 P2.5 Indoor Video Wall ABXING 480A Series

Specifications

Model Number :

ABXING 480A series

cabinet Size :

640*480mm

MOQ :

Delivery Time :

15-18 Working day

Grey Level :

14 bits

Service Access :

Front

Payment Terms :

T/T,Western Union

IP rating :

IP31

Price :

$230-$580

Operation power voltage :

100-240V/50-60Hz

Supply Ability :

Monthly production capacity: 5000 pieces

Weight :

13.5

Certification :

CE/FCC/CCC/EMC

LED lifetime :

100,000h

Place of Origin :

China

Brightness :

800nits

Brand Name :

ABXING LED

Pixel pitch(mm) :

P1.25 P1.5 P1.86 P2.0 P2.5

Packaging Details :

flight case/Environmentally friendly wooden case

Warranty :

3Year

Description

Indoor LED Display Screen Full Color P1.25 P1.5 P1.86 P2.0 P2.5 ABXING 480A Series

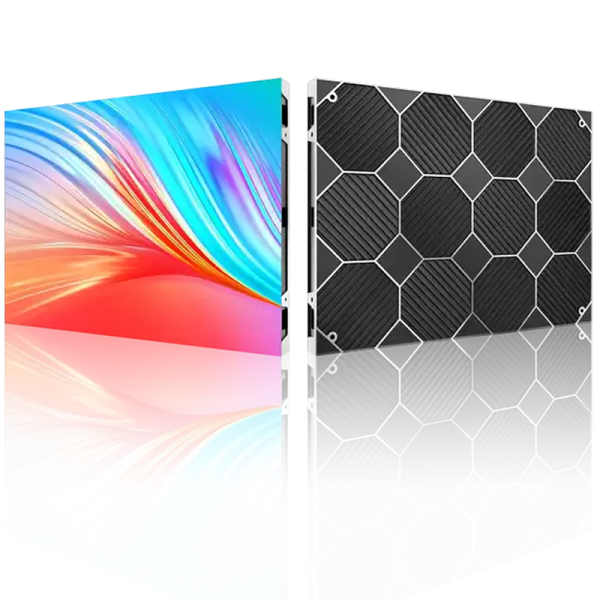

The ABXING 480A Series is a 640*480mm indoor LED display engineered for fixed installations where space is premium and maintenance access is limited. With its 4:3 golden-ratio cabinet design, full front-service architecture, and ultra-slim 60mm profile, this screen is the ideal choice for corporate lobbies, control rooms, retail environments, and conference centers. Weighing just 7.5kg per cabinet, the 480A combines cinematic visual quality with practical, installer-friendly features that reduce both labor costs and long-term upkeep.

Key Specifications
Parameter	Detail
Cabinet Size	640mm × 480mm (4:3 golden ratio)
Module Size	320mm × 160mm (standardized for easy sourcing)
Thickness	Only 60mm – ultra-slim for flush wall mounting
Weight	7.5kg per cabinet – lightweight for single-person handling
Service Access	Full front maintenance (modules, power supply, receiving card)
Viewing Angle	140° vertical × 140° horizontal – consistent color from any seat

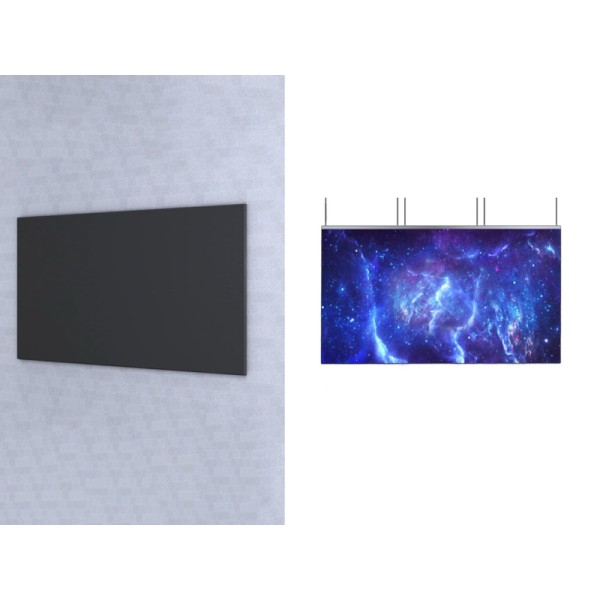

Mounting	Quick-lock system for tool-free assembly

Front Maintenance Architecture

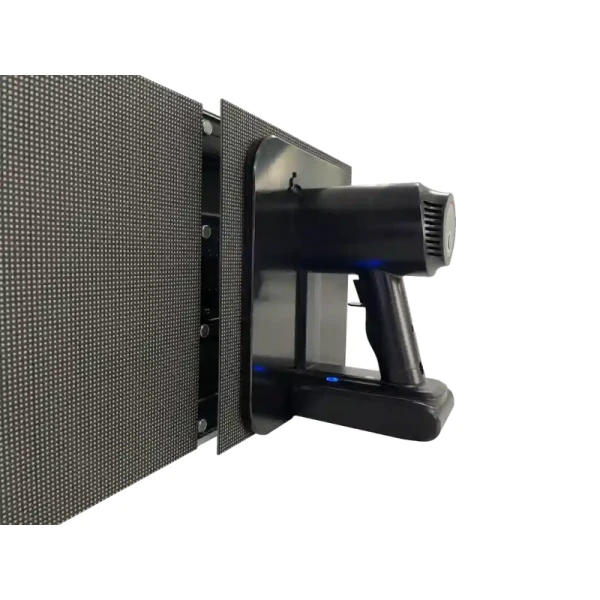

Traditional indoor displays often require rear access for servicing, which can be problematic in tight spaces. The 480A solves this with a full front-maintenance architecture. Every critical component—including LED modules, power supplies, and receiving cards—can be accessed, removed, and replaced entirely from the front. This design is ideal for installations against walls, in shallow enclosures, or in crowded equipment rooms where rear clearance is unavailable.

4:3 Golden Ratio Design

The 480A's 640*480mm cabinet follows the classic 4:3 aspect ratio, making it effortless to build large screens in both 4:3 and 16:9 configurations. Whether you're creating a 1920*1080 Full HD wall or a traditional 4:3 presentation display, the math works cleanly—no awkward cropping or distorted pixel mapping. This thoughtful design ensures that content appears exactly as intended, whether it's a corporate slideshow, a live broadcast feed, or a digital signage playlist.

Ultra-Thin & Lightweight Construction

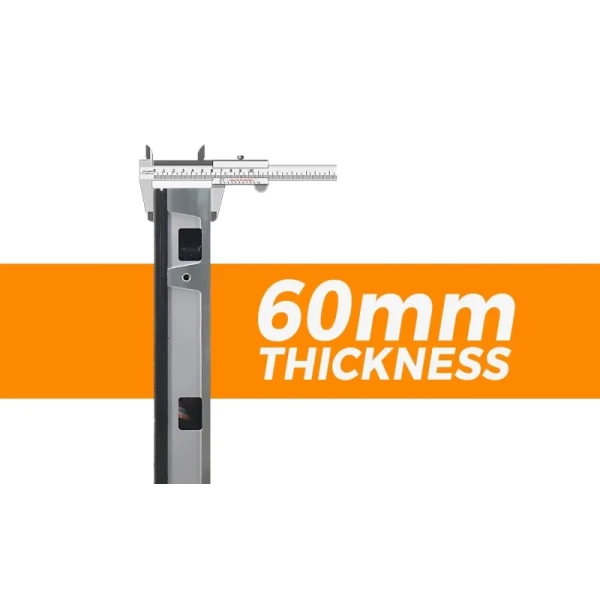

At just 60mm thick and 7.5kg per cabinet, the 480A is one of the slimmest and lightest options in its class. The reduced weight minimizes structural load on walls and support frames, while the quick-lock system enables rapid assembly and disassembly—even for installers working solo. The standardized 320*160mm modules further simplify logistics, allowing field technicians to swap panels with minimal training.

Cinematic Visual Performance

Seamless splicing, clean internal wiring, and precision-machined cabinets come together to deliver a visually stunning experience. The 480A produces vibrant colors, deep contrast, and smooth gradients that rival cinema-quality displays. With a 140° wide viewing angle, the image remains clear and natural from virtually any position in the room—perfect for large auditoriums, broadcast studios, and public viewing areas where viewers are spread across a wide seating area.

Reliability & Easy Maintenance

Inside, the 480A features an upgraded adapter board design that simplifies connectivity and reduces cable clutter. Power and data lines are routed neatly and logically, improving airflow, reducing failure points, and making troubleshooting quicker and more intuitive. The robust cabinet structure ensures long-term stability, even in 24/7 operation.

Typical Applications

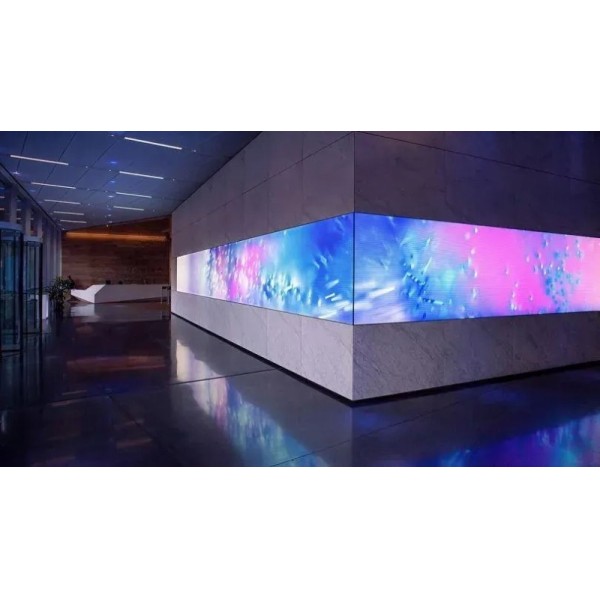

Corporate headquarters - lobby displays and digital signage walls

Conference and meeting rooms - presentation screens and video conferencing backdrops

Control rooms and command centers - real-time monitoring walls

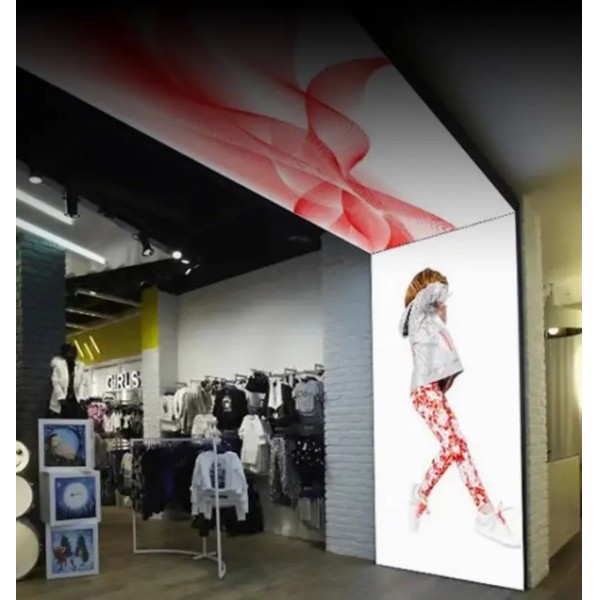

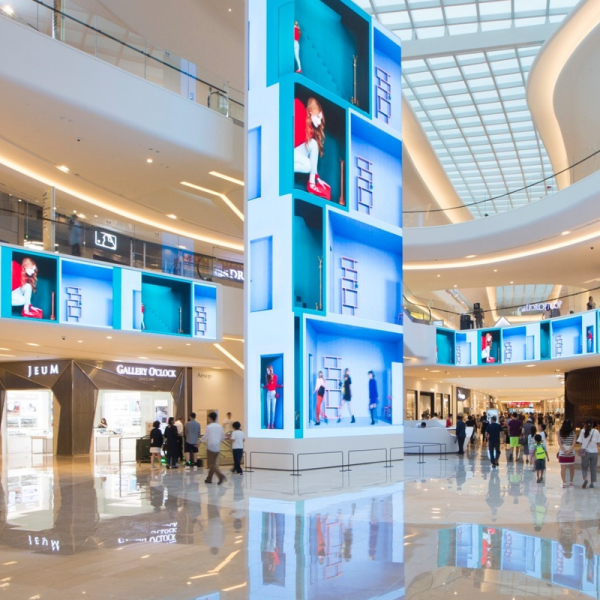

Retail stores and shopping malls - promotional displays and interactive kiosks

Broadcasting studios - virtual set backgrounds and production displays

Education and lecture halls - large-format teaching screens

Why Choose ABXING?

As a dedicated LED display manufacturer, ABXING combines precision engineering with rigorous quality assurance. Every 480A cabinet is tested for color uniformity, brightness consistency, and thermal performance before shipping. We offer global logistics support, responsive technical assistance, and customized solutions to match your specific project needs.

Get in Touch

Interested in pricing, specifications, or a demo unit? Contact our sales team today. Let ABXING help you bring your indoor visual projects to life.
