P6.667 P8 Sports LED Display Scoreboard Perimeter Advertising Screen ABXING SC 1600
P6.667 P8 Sports LED Display Scoreboard Perimeter Advertising Screen ABXING SC 1600
P6.667 P8 Sports LED Display Scoreboard Perimeter Advertising Screen ABXING SC 1600
P6.667 P8 Sports LED Display Scoreboard Perimeter Advertising Screen ABXING SC 1600
P6.667 P8 Sports LED Display Scoreboard Perimeter Advertising Screen ABXING SC 1600
P6.667 P8 Sports LED Display Scoreboard Perimeter Advertising Screen ABXING SC 1600
P6.667 P8 Sports LED Display Scoreboard Perimeter Advertising Screen ABXING SC 1600
P6.667 P8 Sports LED Display Scoreboard Perimeter Advertising Screen ABXING SC 1600
P6.667 P8 Sports LED Display Scoreboard Perimeter Advertising Screen ABXING SC 1600
P6.667 P8 Sports LED Display Scoreboard Perimeter Advertising Screen ABXING SC 1600
Specifications
LED Module size :
400mm x 300mm
Model Number :
ABXING SC 1600 Series
Display type :
SMD LED LAMP
Viewingangle :
140° horizontal, 120° vertical
MOQ :
1
Delivery Time :
15-18 Working day
Refreshrate :
3840 Hz
Operatingtemperature :
-20°C to 60°C
Payment Terms :
T/T,Western Union
Brightness :
6000 Nits-10000Nits
Warranty: :
3Year
Price :
$1200-$1800
Pixel pitch :
P4.4,P5.7,P6.667,P8,P10
Weight :
55 kg
Supply Ability :
Monthly production capacity: 2000 pieces
Powerconsumption :
Max 600W/m²
Contrastratio :
5000:1
Certification :
CE/FCC/CCC/EMC
LED cabinet size :
1600x960mm
Brand Name :
ABXING LED
Application :
Stadiums, Sports Arenas, Outdoor Events
Packaging Details :
flight case/Environmentally friendly wooden case
Protection Grade :
IP65
Place of Origin :
China
Description
ABXING SC 1600mm Series Stadium Perimeter LED Display Screen
Professional sports venue solution engineered specifically for stadium environments with exceptional visibility for advertising, live scores, and game statistics.
Product Specifications
Application Stadium Surroundings
Model Name ABXING SC 1600 Series Stadium Perimeter LED Display
Pixel Pitch Options P10mm, P8mm, P6.667mm, P5mm, P4mm
Cabinet Size 1600 × 960mm
Profile Thickness 104mm ultra-thin design
Key Features
  • Easy to assemble with quick installation
  • High resolution display quality
  • High refresh rate (≥3840Hz)
  • Energy efficient operation
  • Front and rear service access
  • Brightness levels: 6,000-10,000 nits for sunlight visibility
  • 14 bits grayscale depth for superior color accuracy
  • 160° ultra-wide viewing angle
Professional Certifications & Compliance
UEFA technical requirements
CE (EMC & LVD)
RoHS compliance
FCC certification
CB certification
ISO standards
KC certification
PSE certification
FIFA-compliant for international tournaments
Safety & Protection Features
  • Specialized soft plastic mask design prevents player injuries
  • Excellent anti-collision capability withstands ball impacts
  • Aluminum alloy construction with private mold processing
  • Protective cushioning maintains display integrity during contact
  • Front IP65 / Rear IP54 waterproof ratings
  • Full weatherproof operation in various conditions
Installation & Viewing Optimization

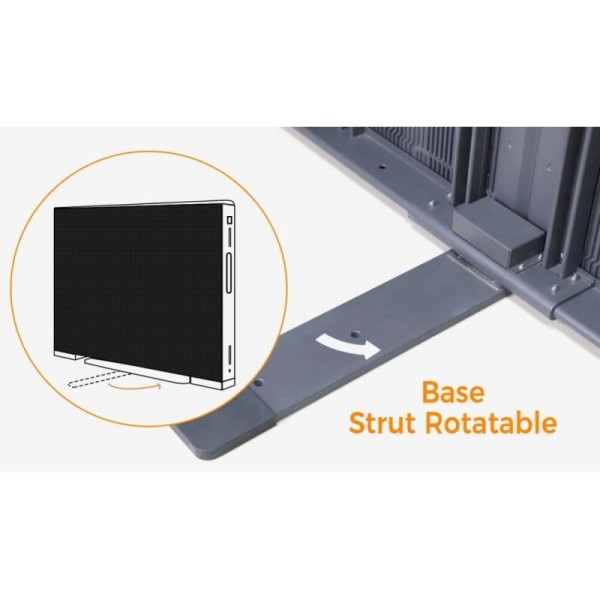

  • 0-90° fully adjustable bracket system
  • Customizable viewing angles for different venue configurations
  • 7mm automatic positioning tolerance for easy assembly
  • Upper and lower positioning guide plates with adjustment screws
  • Advanced splicing technology eliminates visible gaps
  • Continuous display surface across entire perimeter
System Integration & Reliability
  • Dual power supply backup system
  • Redundant signal data transmission
  • Optical fiber transmission over extended distances
  • LED video processor with multiple input options
  • Advanced control box with sending/receiving cards
  • Real-time content management capabilities
Ideal Applications
  • Football stadium perimeter displays
  • Basketball arena ribbon boards
  • Olympic venue scoring systems
  • Motorsport timing and information displays
  • Multi-purpose sports facility installations
Energy Efficiency
Advanced power management reduces consumption with superior heat dissipation design. Features long-lasting SMD LED technology for lower operational costs versus traditional displays.
