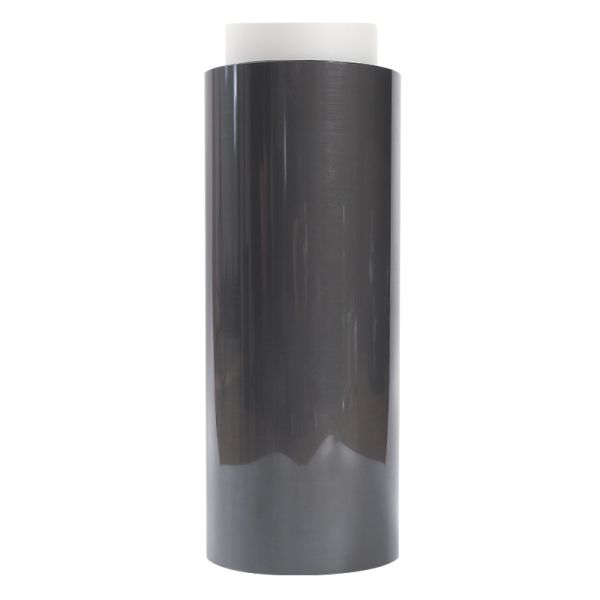

Compact EMI Absorber Sheet Adhesive Sheet Absorbing Material
Compact EMI Absorber Sheet Adhesive Sheet Absorbing Material
Compact EMI Absorber Sheet Adhesive Sheet Absorbing Material
Compact EMI Absorber Sheet Adhesive Sheet Absorbing Material
Compact EMI Absorber Sheet Adhesive Sheet Absorbing Material
Compact EMI Absorber Sheet Adhesive Sheet Absorbing Material
Compact EMI Absorber Sheet Adhesive Sheet Absorbing Material
Compact EMI Absorber Sheet Adhesive Sheet Absorbing Material
Specifications
Model Number :
JCXB-R Series
Place of Origin :
China
Brand Name :
Haojing
Certification :
RoHS
Product name :
Microwave Absorbing Material
Material type :
Adhesive Sheet and Foam
Application :
EMI shielding, radar stealth
Size :
Custom
Feature :
Wide Frequency Coverage,High Absorption Efficiency
 working temperature :
-25~+85
MOQ :
Negotiable
Packaging Details :
Standard Packaging
Delivery Time :
7-15 Working Days
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Price :
RMB 300-550/roll,300mmx30&50mm
Description

Adhesive Sheet Absorbing Material for Compact EMI Control

Product Description

Adhesive Sheet Absorbing Material is a high-efficiency electromagnetic absorption solution developed for modern electronic systems that require reliable EMI control within limited installation space. By combining advanced absorbing compounds with a pressure-sensitive adhesive layer, this material enables fast, tool-free attachment to metal enclosures, shielding covers, and internal device surfaces, making it ideal for both design-stage integration and post-certification EMC optimization.

The absorbing sheet operates by transforming incident electromagnetic energy into heat through controlled magnetic and dielectric losses. This mechanism significantly reduces internal RF reflections, standing waves, and signal coupling that commonly affect high-speed digital circuits and wireless modules. Compared with traditional reflective shielding, adhesive absorbing material provides localized noise suppression directly at critical interference points, resulting in improved signal integrity and system stability.

Size of product

Standard size: 140mm*180mm; tolerance ±3mm

Can be customized and die-cut according to customer requirements; can be back-glued according to customer requirements

Application fields

Communication System

Microwave Devices And High Frequency Equipment

Notebook PC

Consumer Electronics

Some product models and parameters

Model

Thickness of magnetic sheet (mm)

Application frequency (GHz)

Magnetic permeability

@13.56GHz

u'

u'

JCXB-RHFB-030

0.3±0.03

0.1~12

15

8

JCXB-RHFB-050

0.5±0.05

0.1~12

15

8

JCXB-RHFB-100

1.0±0.1

0.1~12

15

8

working temperature (℃)

-25~+85

sheet resistance (Ω)

≥ 105

Note: ① The parameters shown are for reference only, and the actual test and technical agreement shall prevail; ② The metal back is best for absorbing waves.
