Consumer Electronics Microwave Absorber Sheet For EMI Shielding
Consumer Electronics Microwave Absorber Sheet For EMI Shielding
Consumer Electronics Microwave Absorber Sheet For EMI Shielding
Consumer Electronics Microwave Absorber Sheet For EMI Shielding
Consumer Electronics Microwave Absorber Sheet For EMI Shielding
Consumer Electronics Microwave Absorber Sheet For EMI Shielding
Consumer Electronics Microwave Absorber Sheet For EMI Shielding
Consumer Electronics Microwave Absorber Sheet For EMI Shielding
Consumer Electronics Microwave Absorber Sheet For EMI Shielding
Consumer Electronics Microwave Absorber Sheet For EMI Shielding
Consumer Electronics Microwave Absorber Sheet For EMI Shielding
Consumer Electronics Microwave Absorber Sheet For EMI Shielding
Specifications
Model Number :
JCXB-R Series
Place of Origin :
China
Brand Name :
Haojing
Certification :
RoHS
Product name :
Microwave Absorbing Material
Material type :
Adhesive Sheet and Foam
Application :
EMI shielding, radar stealth
Size :
Custom
Feature :
Wide Frequency Coverage,High Absorption Efficiency
 working temperature :
-25~+85
MOQ :
Negotiable
Packaging Details :
Standard Packaging
Delivery Time :
7-15 Working Days
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Price :
RMB 150-800,200x200mm
Description

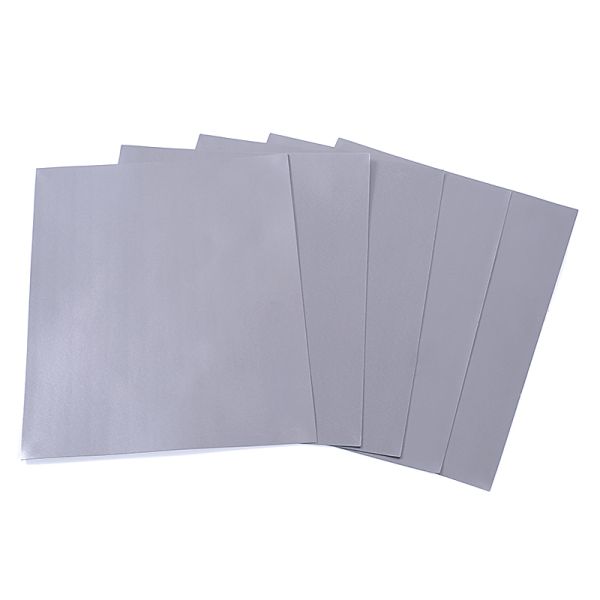

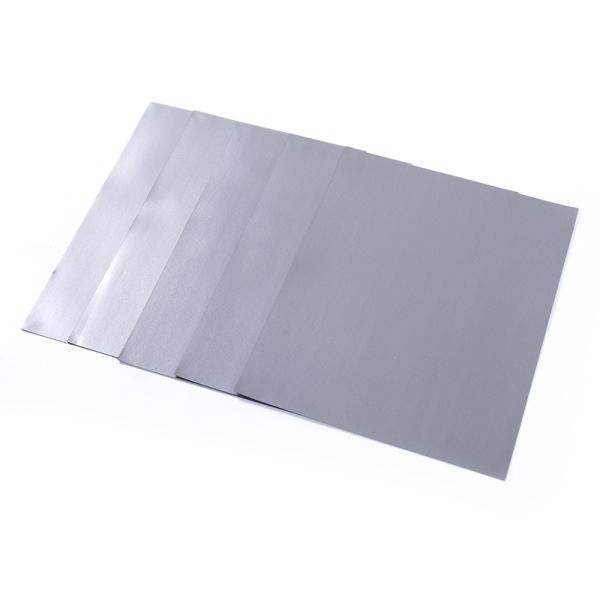

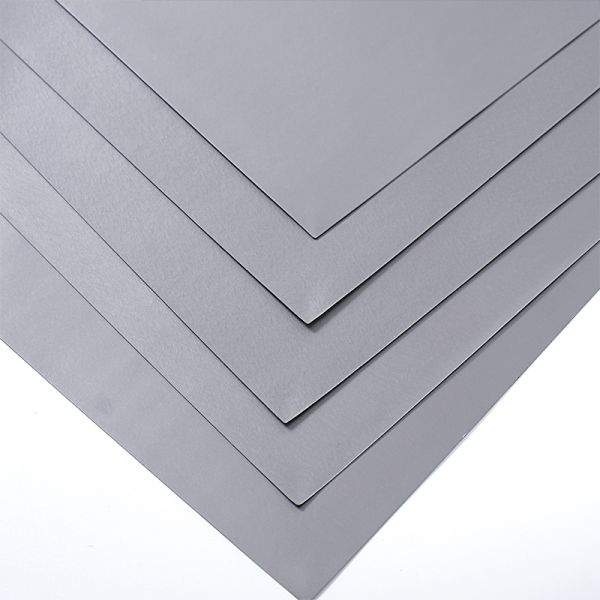

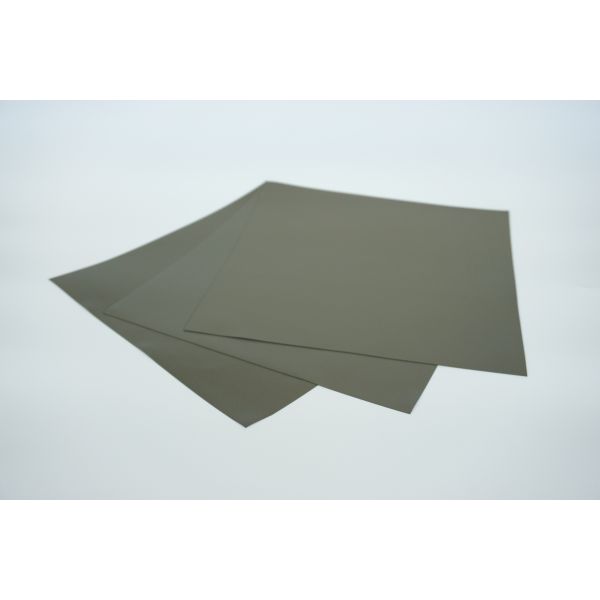

Adhesive Sheet Absorbing Material for Consumer Electronics and Communication System

The Adhesive Sheet Absorbing material mainly includes JCXB-S series and JCXB-R series Adhesive Sheet Absorbing material. It is mainly used to solve the problem of electromagnetic compatibility and electromagnetic radiation leakage inside the equipment, so as to eliminate electromagnetic interference.

Main features

(1) Strong adaptability to the environment, high and low temperature resistance, salt spray resistance, aging resistance, humidity and heat resistance

(2) Meet RoHS, REACH, halogen-free, sulfur-free and other environmental protection requirements

(3) The application frequency band is wide, the absorption performance is excellent and the thickness is thin

Size of product

Standard size: 140mm*180mm; tolerance ±3mm

Can be customized and die-cut according to customer requirements; can be back-glued according to customer requirements

Application fields

Communication System

Microwave Devices And High Frequency Equipment

Notebook PC

Consumer Electronics

Some product models and parameters

Model

Thickness of magnetic sheet (mm)

Application frequency (GHz)

Magnetic permeability

@13.56GHz

u'

u'

JCXB-RHFB-030

0.3±0.03

0.1~12

15

8

JCXB-RHFB-050

0.5±0.05

0.1~12

15

8

JCXB-RHFB-100

1.0±0.1

0.1~12

15

8

working temperature (℃)

-25~+85

sheet resistance (Ω)

≥ 105

Note: ① The parameters shown are for reference only, and the actual test and technical agreement shall prevail; ② The metal back is best for absorbing waves.
