265x185x129mm Aluminum Waterproof Metal Junction Box
265x185x129mm Aluminum Waterproof Metal Junction Box
265x185x129mm Aluminum Waterproof Metal Junction Box
265x185x129mm Aluminum Waterproof Metal Junction Box
265x185x129mm Aluminum Waterproof Metal Junction Box
265x185x129mm Aluminum Waterproof Metal Junction Box
265x185x129mm Aluminum Waterproof Metal Junction Box
265x185x129mm Aluminum Waterproof Metal Junction Box
265x185x129mm Aluminum Waterproof Metal Junction Box
265x185x129mm Aluminum Waterproof Metal Junction Box
Specifications
Surface finish :
Powder painting
Protection Level :
IP66
product name :
die casting enclosure
Type :
Junction box
Box Color :
Light Grey
Application :
Electrical And Wires Installation
Lead time :
7 days
Brand Name :
AnBox
Model Number :
AB-FA-67
Certification :
CE
Place of Origin :
China
MOQ :
1pc
Price :
$12~$20
Payment Terms :
Western Union, T/T,Paypal
Supply Ability :
1000pcs/day
Delivery Time :
7 days
Packaging Details :
pp bag/box
External Size :
265x185x129
Material :
Aluminum Alloy
Description

260x185x128mm Aluminum Metal Outdoor Junction Box Electrical For Project Box

Specifications

1, Model: AB-FA-67
2,Material: Aluminum Alloy
3, Color: Grey
4, Weatherproofing via user-fitted O-ring (supplied).
5, Dimensions (WxDxH):265*185*129mm
6, Assembly screws included.

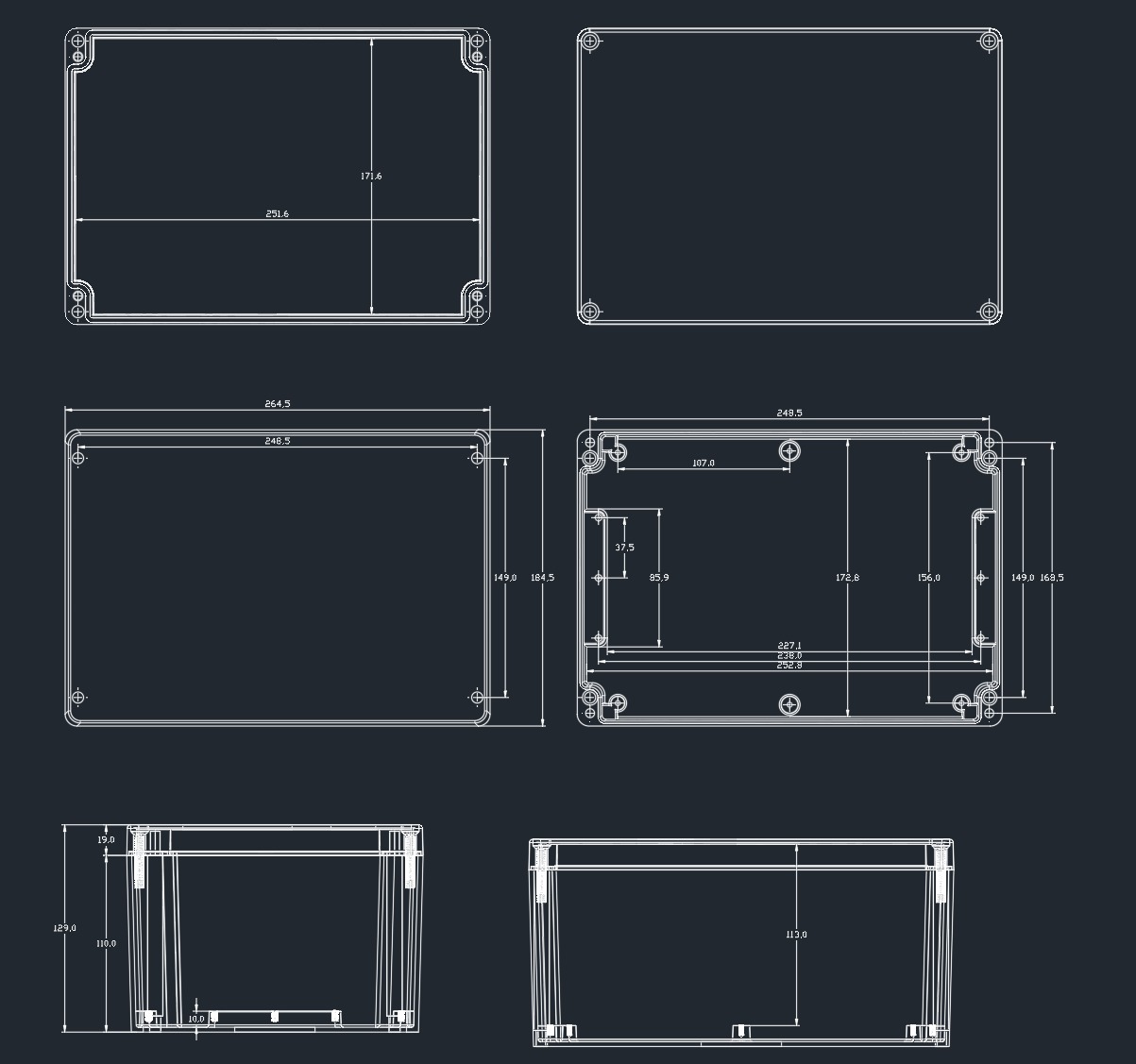

Drawing Reference

265x185x129mm Aluminum Waterproof Metal Junction Box


Other sizes

Model NO. Size(mm) Model NO. Size(mm)
AB-FA-1 64*58*35 AB-FA-5-1 222*145*55
AB-FA-18 80*75*60 AB-FA-5 222*145*55
AB-FA-9 90*36*31 AB-FA-6 222*145*75
AB-FA-7-1 98*64*35 AB-FA-6-1 222*145*80
AB-FA-4 100*68*50 AB-FA-10 228*150*75
AB-FA-43 100*100*60 AB-FA-24-16 240*160*80
AB-FA-7 111*64*37 AB-FA-64 240*160*100
AB-FA-24 115*65*55 AB-FA-21 250*80*64
AB-FA-34 115*90*58 AB-FA-22 250*80*80
AB-FA-34-1 115*90*58 AB-FA-36 250*120*82
AB-FA-VT2-1 120*80*55 AB-FA-15 250*190*90
AB-FA-VT2 120*80*55 AB-FA-15 window 250*190*90
AB-FA-VT120 120*80*65 AB-FA-39 260*160*90
AB-FA-60 120*120*82 AB-FA-66 260*185*96
AB-FA-2-3 125*80*58 AB-FA-67 260*185*128
AB-FA-2-2 135*85*56 AB-FA-67-1 265*185*129
AB-FA-44 140*140*75 AB-FA-65 265*185*75
AB-FA-58 145*100*45 AB-FA-75 280*230*110
AB-FA-7-2 150*64*37 AB-FA-75-1 280*230*110
AB-FA-29 150*100*80 AB-FA-68 300*210*100
AB-FA-25 160*100*60 AB-FA-68-1 300*210*100 hinge
AB-FA-26 160*100*65 AB-FA-69 300*210*130
AB-FA-61 160*160*70 AB-FA-38 320*120*90
AB-FA-62 160*160*90 AB-FA-38-1 320*120*90 hinge
AB-FA-62-1 160*160*90 AB-FA-70 340*235*95
AB-FA-25-1 165*95*39 AB-FA-70-1 340*235*95 hinge
AB-FA-20 175*80*56 AB-FA-71 340*235*120
AB-FA-20-1 175*80*80 AB-FA-71-1 340*235*120 hinge
AB-FA-8 180*140*55 AB-FA-72 340*235*135
AB-FA-13 185*135*85 AB-FA-72-1 340*235*135 hinge
AB-FA-3 188*120*78 AB-FA-73 340*235*160
AB-FA-12-S 200*130*60 AB-FA-73-1 340*235*160 hinge
AB-FA-12-1 200*130*80 AB-FA-40 360*160*95
AB-FA-14 220*155*95 AB-FA-41 360*160*135
