Specifications
Place of Origin :
China
MOQ :
1
Price :
0.1
Delivery Time :
5-8days
Grit :
40#~120#
Compatibletools :
Angle Grinder
Thickness :
7/8 inch (22 mm)
Color :
Brown / Blue / Green
Type :
normal or with vent
Safetystandards :
EN 13743, ANSI B7.1
Glue :
Flap Wheel Special Glue
Working Style :
Surface Grinding
Discdiameter :
4.5 inches (115 mm)
Bondtype :
Resin Bond
Packing :
wooden case
Sample :
Sample Provided
Backing :
Fiberglass Backing
Advantage :
High Working Efficiency
Description

wholesale high quality manufacture custom Vertical Flap disc Aluminium Oxide 80/120/180/240/320 grit abrasive flap disc for polishing metal stainless steal

Parameter Description

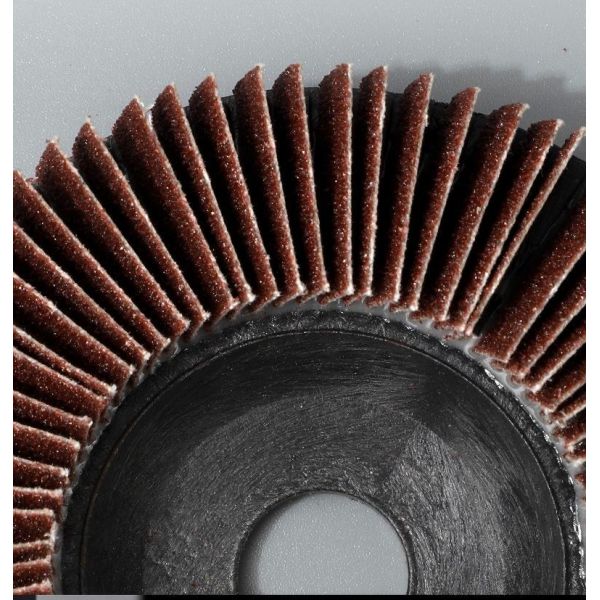

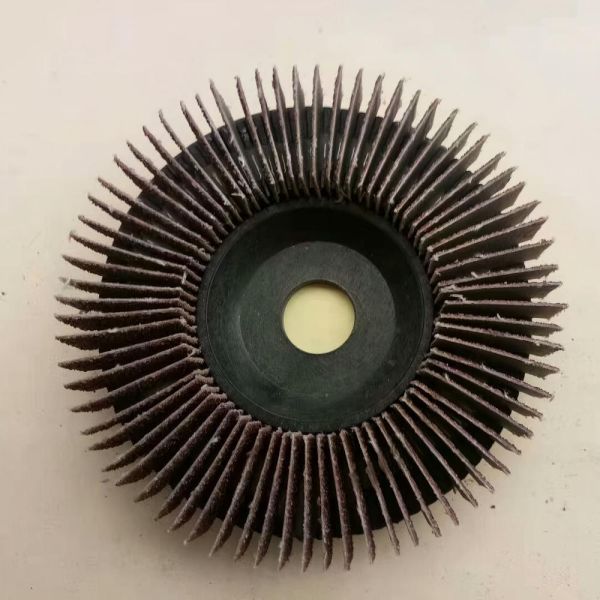

Product Name Vertical Flap Disc (Flap Wheel)
Cover Type Mesh Cover / Plastic Cover
Material Calcined Emery Cloth (Red / Black / Blue Sand)
Number of Flaps Customizable
Zirconia Alumina Sand Cloth Blue Sand
Maximum Rotational Speed 15300 RPM (80 M/S)
Ceramic Alumina Yes
Suitable for Metal / Stainless Steel / Woodworking, etc.
Product Size 100X16MM (4 Inches)

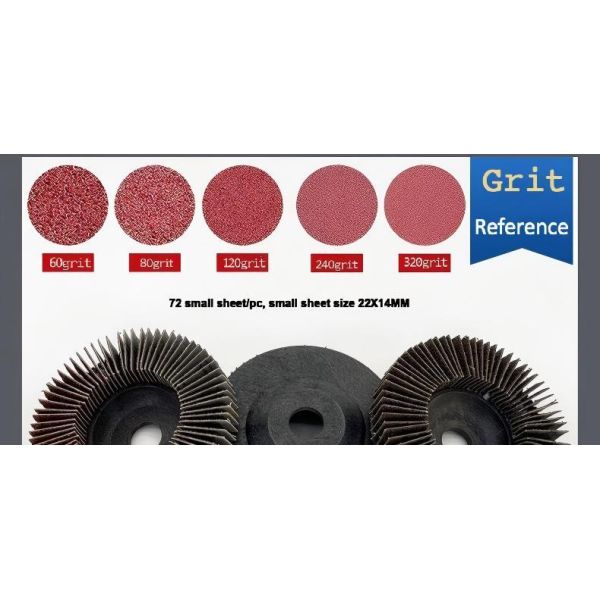

Grit Range 40# ~ 400#
Packaging Data 20 pcs / heat-sealed film, 200 pcs / carton, 16 KG / carton, 51X41X21 CM

Curved 320 Grit 40 Grit Flap Wheel Disc Aluminium Oxide For Metal Custom

Curved 320 Grit 40 Grit Flap Wheel Disc Aluminium Oxide For Metal Custom

FAQ

Curved 320 Grit 40 Grit Flap Wheel Disc Aluminium Oxide For Metal Custom

Curved 320 Grit 40 Grit Flap Wheel Disc Aluminium Oxide For Metal Custom


FAQ

Q1: What is a flap disc, and what is it used for?
A: A flap disc is an abrasive tool used for blending, finishing, and light grinding of surfaces. It is commonly used on metals (including stainless steel), wood, and other materials to achieve a smooth, clean finish.

Q2: What are the differences between the available materials (Calcined Emery, Zirconia Alumina, Ceramic Alumina)?
A:

  • Calcined Emery (Red/Black/Blue Sand): Durable and cost-effective, suitable for general-purpose grinding and finishing.
  • Zirconia Alumina (Blue Sand): Offers higher durability and faster cutting action, ideal for tough materials like stainless steel.
  • Ceramic Alumina: Provides excellent longevity and cooler grinding, reducing the risk of burning the workpiece. It is often used for high-performance applications.

Q3: What is the maximum safe operating speed for these flap discs?

A: The maximum safe rotational speed is 15300 RPM, which corresponds to a maximum peripheral speed of 80 M/S. Always ensure your tool’s speed does not exceed this limit for safe operation.

Q4: Can I customize the number of flaps in the flap disc?
A: Yes, the number of flaps can be customized according to your specific application needs. More flaps generally provide a finer finish, while fewer flaps offer more aggressive material removal.

Q5: What sizes and grits are available?
A:

  • Size: 100x16mm (4 inches)

  • Grit Range: Available from 40# (coarse) to 400# (fine). Choose a coarser grit for material removal and a finer grit for finishing and polishing.

Q6: What types of covers are available, and how do I choose?
A: Two cover types are available:

  • Mesh Cover: Provides better airflow and cooling, reducing heat buildup.

  • Plastic Cover: Offers more protection against flap separation and is often used in applications where debris control is important.

Select based on your cooling needs and safety preferences.

Q7: What materials can these flap discs be used on?
A: These discs are suitable for a wide range of materials, including:

  • Metals (steel, aluminum, stainless steel)

  • Wood

  • Plastics and composites

Always test on a small area if unsure.

Q8: How are the flap discs packaged?
A: The packaging is as follows:

  • 20 pieces per heat-sealed film

  • 200 pieces per carton

  • Carton weight: 16 kg

  • Carton dimensions: 51 x 41 x 21 cm

Q9: How do I store and handle flap discs?
A:

  • Store in a dry, cool place away from direct sunlight and moisture.

  • Handle with care to avoid bending or damaging the flaps.

  • Always inspect the disc before use for any signs of damage.

  • Q10: What safety precautions should I take when using flap discs?
    A:

    • Always wear appropriate personal protective equipment (PPE), including safety glasses, gloves, and a face shield.

    • Ensure the tool is compatible with the disc’s maximum speed rating.

    • Do not apply excessive pressure—let the disc do the work.

    • Follow all manufacturer guidelines and local safety regulations.

    For further questions or customization requests, please contact our customer support team.
