4"-7" Flap Disc Abrasive Converting Machine

Product Overview

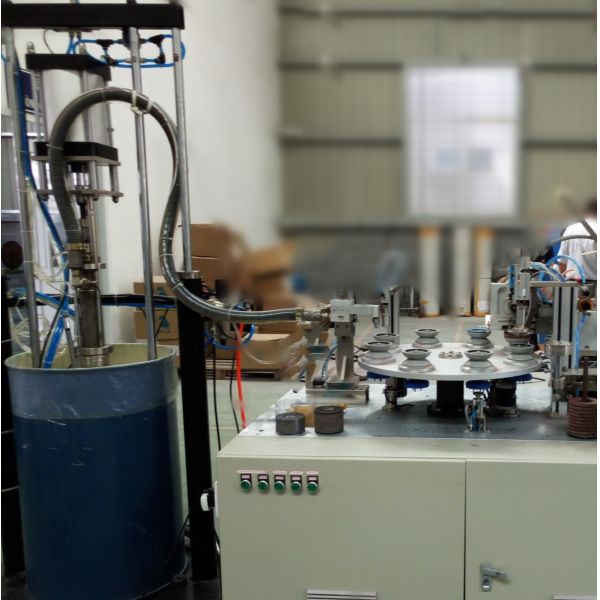

Revolutionize your abrasive production line with our state-of-the-art Automatic Flap Disc Converting Machine. This precision-engineered system is designed for the high-volume, high-efficiency manufacturing of flap discs (flap wheels) from 4 inches (100mm) to 7 inches (180mm) in diameter. By automating the core processes of flap folding, assembly, and bonding, it eliminates production bottlenecks, ensures unwavering product consistency, and dramatically reduces labor costs. It is the ultimate solution for abrasive manufacturers aiming to scale their output and dominate the market.

Key Features & Buyer-Centric Benefits

• Fully-Automated Operation with PLC Control: A user-friendly PLC and HMI (Human-Machine Interface) control the entire process. Benefit: Minimizes manual labor, reduces human error, and allows for quick changeovers between different flap disc sizes and specifications with pre-set recipes.

• High-Speed Production with Robust Output: Engineered for continuous, high-speed operation. Benefit: Achieves a consistent output of [e.g., 15-25 pcs/min] (Customizable), significantly boosting your production capacity to meet large order demands and maximize your return on investment.

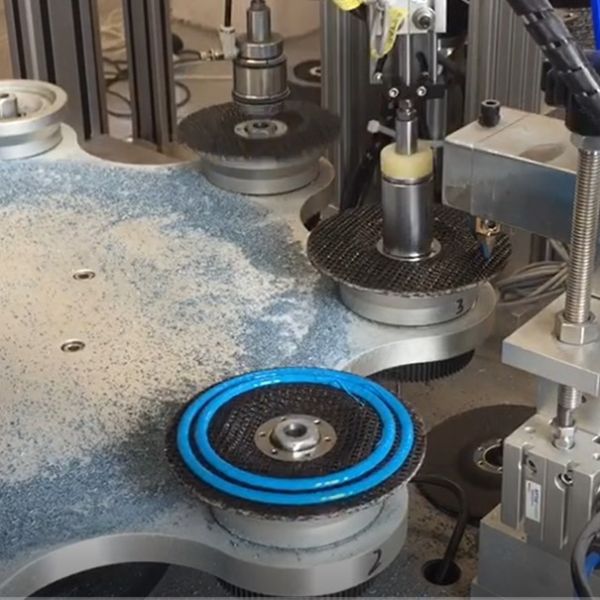

• Precision Glue Application System: Equipped with a servo-driven glue dispensing system. Benefit: Ensures accurate, uniform adhesive application on every flap, eliminating weak bonds and delamination. This guarantees every flap disc meets the highest quality and safety standards.

• Modular & Heavy-Duty Construction: Built with high-strength steel and precision components. Benefit: Provides exceptional long-term stability and durability for 24/7 operation in industrial environments. The modular design simplifies maintenance and allows for future upgrades.

• Quick-Change Tooling & Flexible Configuration: Features rapid-change mandrels and tooling for different disc sizes. Benefit: Drastically reduces downtime when switching production from one product size to another, enabling you to respond swiftly to diverse market needs

Intended Use & Applications
This specialized machinery is the core of a modern abrasive manufacturing facility:

• Abrasive Tools Manufacturing: High-speed production of various types of flap discs (e.g., PSA, Fiber, Zirconia, Ceramic).

• Abrasive Industry: Used by manufacturers supplying to metalworking, woodworking, and automotive sectors.

• Large-Scale Production Lines: Ideal for companies focused on bulk orders and export markets, requiring consistent quality and high volume.

• Perfect For: Abrasive product factories, industrial tool manufacturers, and large-scale workshop expansions.

Important Precautions

• Professional Installation & Training Required: Installation, commissioning, and operator training must be conducted by qualified technicians provided by the supplier to ensure optimal performance and safety.

• Regular Maintenance is Mandatory: Adhere to a strict preventive maintenance schedule for lubrication and component inspection as outlined in the manual to prevent unexpected downtime and ensure machine longevity.

• Use Specified Raw Materials: The machine is calibrated for specific types of backing plate, abrasive cloth, and adhesive. Using unapproved materials may result in poor product quality and machine damage.

• High-Voltage Operation: The machine operates on industrial high voltage. Only trained electricians should perform any electrical maintenance or troubleshooting.

• Safety Guards Must Be In Place: Never operate the machine with safety guards removed. Ensure all emergency stop buttons are functional before starting production.
