XDE100C 100T C type Hydraulic Track Pin Pusher for excavator & bulldozer
XDE100C 100T C type Hydraulic Track Pin Pusher for excavator & bulldozer
Specifications
Model Number :
C100T/C150T
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1
Price :
USD 3000
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
Unlimited
Delivery Time :
15-20 working days
Packaging Details :
Export standard packing with wooden pallet
Brand Name :
XDE
Application :
Excavator MASTER PIN PRESS, PORTABLE TRACK PIN PRESS, HAND POWER HYDRAULIC PIN PRESS:
Type :
Manual&Electrical
Materials :
Q345B
Warranty :
1 years/1200 hours
Technique :
Forging&Casting
Packing :
Wooden Pallet
Quality :
OEM Quality; High Quality
Weight :
300kgs
Description
XDE100C 100T C type Hydraulic Track Pin Pusher for excavator & bulldozer

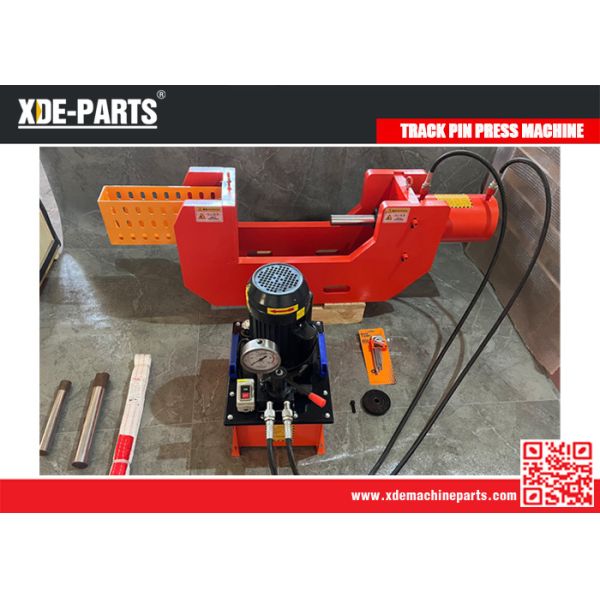

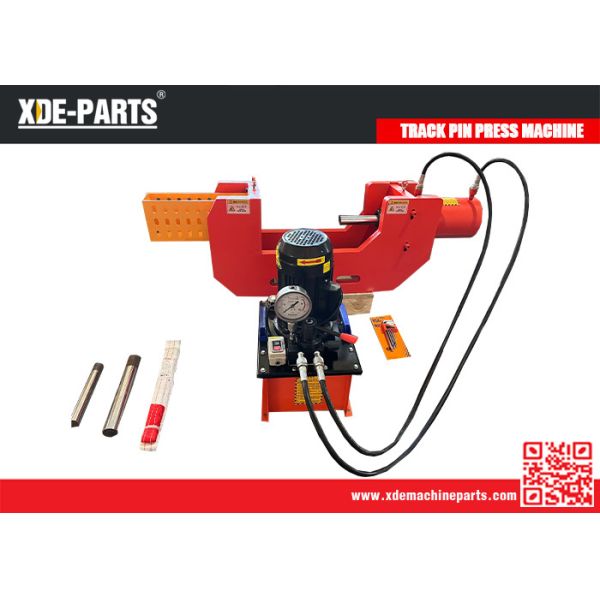

100T/200T Portable hydraulic track link pin press machine: this press is for removal and insertion of master pin and removal of sprocket for all type
of Excavators&Dozers, and for earth moving /Mining equipments.
The track is also known as , continuous track or tank tread for the removal or installation of the pins from the undercarriage
tracks of excavators, bulldozers, tanks, tractors and similar track propelled machinery.
Portable hydraulic track press pusher (manual hydraulic or electric pump) is available for smaller machine tracks and larger fixed electrical
machines are available for larger machinery tracks (suited for workshop).
Pin Pusher Technical Specifications
Pushing force: 100T (750 kN) or 150T (1500 kN) or 200T (2000 kN)
Working pressure: 700 bar
Diameter of pushing pin: multiple sizes available
Stroke: 140mm or bigger
Weight of the hydraulic pusher: 95 kg
Weight of the hand-operated pump: 15 kg
XDE100C 100T C type Hydraulic Track Pin Pusher for excavator & bulldozer
Mater Pin Pusher For Excavator&Dozer Track Chains Parameters:
Model
Tonnage
Pitch
Applicable models
MIT-100C
100T
154
22-26T Excavator
MIT-150C
150T
154-190
33-37T Excavator
MIT-200C
200T
190-216
48T Excavator
MIT-300C
300T
228-260(Excavator)
D9,D10,D11
