Low Voltage Motor M2BAX ABB 71-132 B3 / B5 Mounting ABB IE4 Motor
Low Voltage Motor M2BAX ABB 71-132 B3 / B5 Mounting ABB IE4 Motor
Low Voltage Motor M2BAX ABB 71-132 B3 / B5 Mounting ABB IE4 Motor
Low Voltage Motor M2BAX ABB 71-132 B3 / B5 Mounting ABB IE4 Motor
Specifications
Energy efficiency class :
IE2/IE3/IE4
ABB product model :
M2BAX
Certification :
IS0 9001/IS0 1400
Bearing :
SKF / FAG
Number of poles :
2, 4, 6, 8 poles
Insulation level and temperature rise :
F/B
Installation :
B3, B5, B35
Brand Name :
ABB
Model Number :
M2BAX Size 71-132
Place of Origin :
China
MOQ :
10
Price :
800-12000
Payment Terms :
L/C,D/P,T/T
Supply Ability :
2000 units/month
Delivery Time :
30-45 days
Packaging Details :
Maritime wooden packaging
Description
M2BAX Low Voltage Ordinary Application Standard Motor (Size: 71-132 B3/B5)
The M2BAX motor features a durable cast iron frame construction, including integrated cast iron feet, bearing housing, and terminal box for reliable industrial performance.
  • Cast iron frame provides superior durability and vibration resistance
  • Integrated cast iron feet ensure rigid mounting and stability

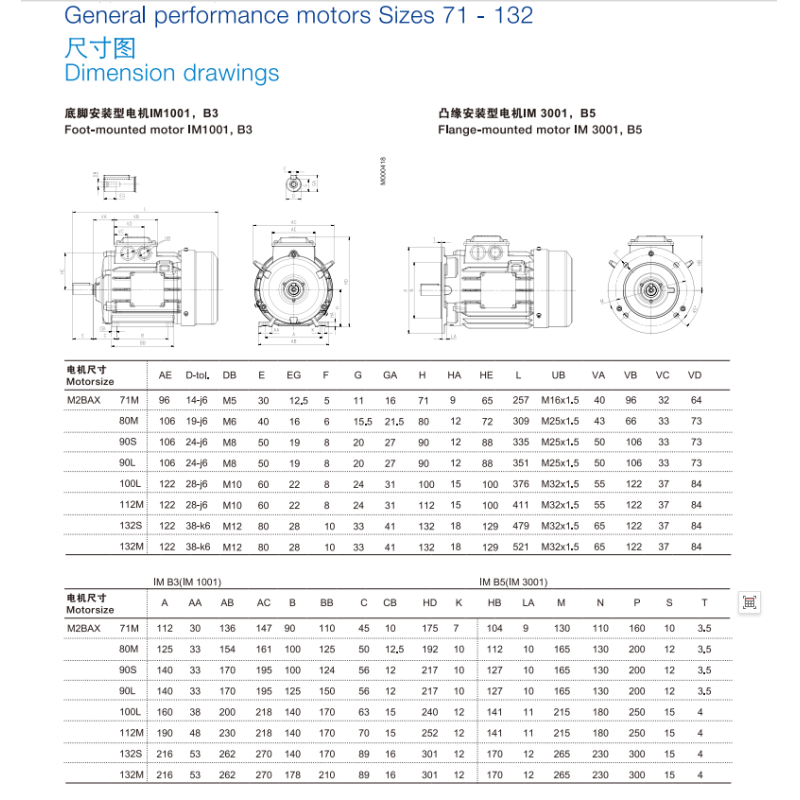

  • Available in multiple mounting configurations: foot mounting (B3), flange mounting (B5), or combination mounts
Low Voltage Motor M2BAX ABB 71-132 B3 / B5 Mounting ABB IE4 Motor

The motor frame is made of cast iron, and the standard design includes cast iron feet, bearing housing, and terminal box. Integrated cast iron feet provide rigid mounting and minimize vibration.

Motors can be supplied for foot mounting, flange mounting,and combinations of these.

Motors that will be operated in very humid or wet environ - ments, and especially under intermittent duty, should be provided with drain holes. The IM designation, such as IM 3031, determines the intended mounting arrangement for the motor.
