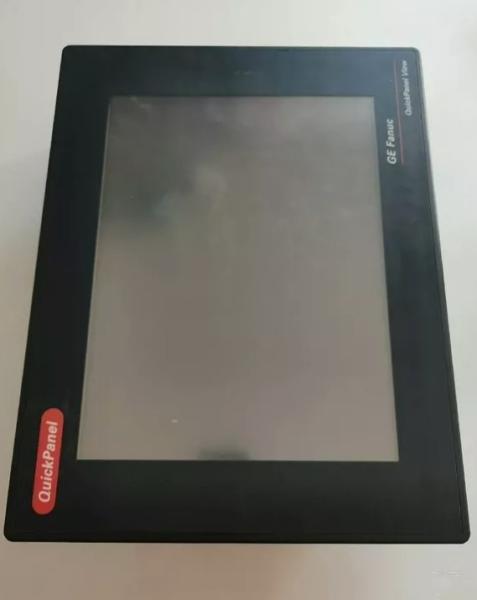

IC754VSI12CTD GE Intermediate 12-Inch Color TFT Touch Quick Panel Display
IC754VSI12CTD GE Intermediate 12-Inch Color TFT Touch Quick Panel Display
IC754VSI12CTD GE Intermediate 12-Inch Color TFT Touch Quick Panel Display
IC754VSI12CTD GE Intermediate 12-Inch Color TFT Touch Quick Panel Display
IC754VSI12CTD GE Intermediate 12-Inch Color TFT Touch Quick Panel Display
IC754VSI12CTD GE Intermediate 12-Inch Color TFT Touch Quick Panel Display
Specifications
Brand Name :
GE
Model Number :
IC754VSI12CTD
Certification :
CO
Place of Origin :
USA
MOQ :
1pc
Price :
$3500
Payment Terms :
T/T
Supply Ability :
10pcs
Delivery Time :
3-5 work days
Packaging Details :
16cm x 16 cm x 12 cm
Model :
IC754VSI12CTD
Condition :
New
Gross Weight/Shipping Weight :
1kg
Packing Size :
16cm x 16 cm x 12 cm
Country of Origin/Original Country :
United States (USA)
Lead Time :
In Stock
Shipping Port :
Xiamen
Payment :
T/T
Sales Price :
$3500
Color :
Depends on material
Warranty :
12 months
Lead time :
3-5 work days
Courier partners :
DHL, UPS, TNT, FedEx and EMS
Description

IC754VSI12CTD GE Intermediate 12-inch Color TFT Touch QuickPanel Display


Product Details:

Brand NameGE
ModelIC754VSI12CTD
CatalogIC754
OriginUnited States (USA)
Dimension16*16*12cm
Weight1kg
HS Code8537101190
PaymentT/T
Sales Price$3500
Warranty12 months
Lead time3-5 work days


Additional Information:

CoolingNatural convection
Ambient Operating temperature0°C to +50°C
Ambient Storage temperature-20°C to +60°C
Ambient Humidity (operating and storage)

85% RH
(non-condensing, wet-bulb temperature:30°C or less)

EnvironmentPollution Degree 2 as defined by UL60950-1
Vibration resistance

5 to 9Hz single-amplitude 3.5mm
9Hz to 150Hz constant-accelerated velocity 9.8m/s2
X, Y, Z directions 10 time (100minutes)
(Compliance 3502, IEC61131-2 JIS B)

ROHSCompliant with EU RoHS Directive 2002/95/EC using the following exemptions identified in the Annex: 7(a), 7(c)-I, & 7(c)-III.
Enclosure ratingIP65 and JEM1030 when installed in accordance with the instructions in Chapter 4, “Installation”.


Description:

The IC754VSI12CTD operator terminal enables users to interface with their machines and connects using Proficy View-Machine Edition software via an RS232/ RS485 communication port with a connecting HMI-CAB-C110 communication cable. Users can input information and data using the touchscreen.

The IC754VSI12CTD is powered by a 12 or 24 VDC power cord. Its combined internal memory is 32 MB.

IC754VSI12CTD GE Intermediate 12-Inch Color TFT Touch Quick Panel Display

The approximate shipping weight and dimensions are 10 lbs. and 16 x 14 x 8 inch respectively. This unit is available in different configurations that suit requirements of most users.

It is the ideal choice for any networked home environment or can be used as a stand-alone unit. The IC754VSI12CTD is an ideal solution for factory floor HMI.

This chapter contains information for performing a pre-installation check of your QuickPanel+ operator interface. Before installing and using the QuickPanel+, the following steps should be completed:

  • Unpacking and Inspection
  • Basic Setup
  • Initial Startup
  • Runtime Setup
  • Firmware Updates
  • Shutdown


IC754VSI12CTD GE Intermediate 12-Inch Color TFT Touch Quick Panel Display


Datasheet Link:GE IC754VSI12CTD.pdf
