Specifications
value :
Protection Classification IP65 (can be made to IP67 upon request)
Delivery Time :
30
Payment Terms :
T/T
MOQ :
1000
parameter :
Sealing
Description

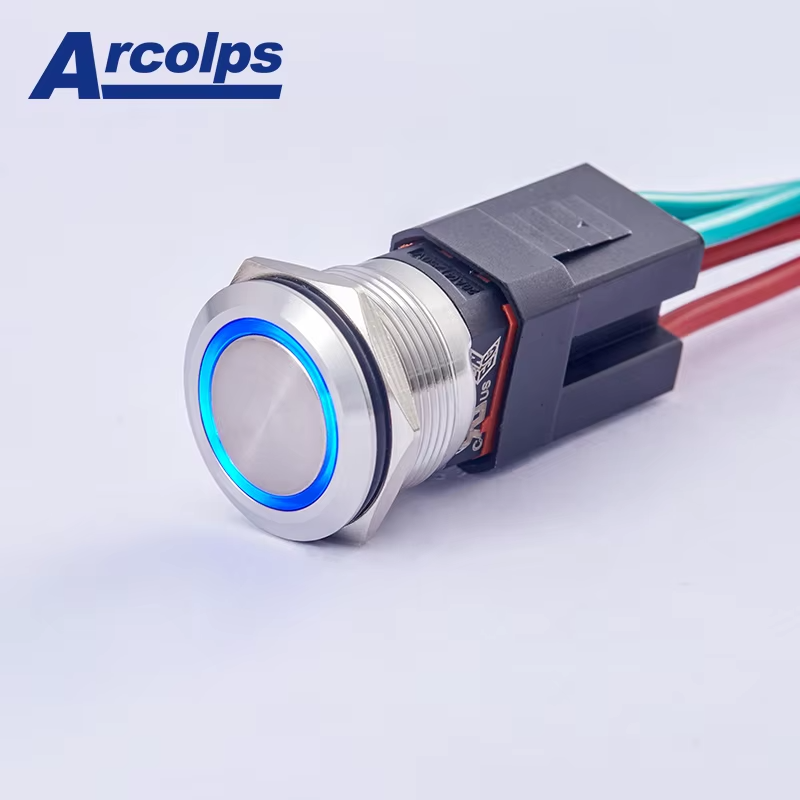

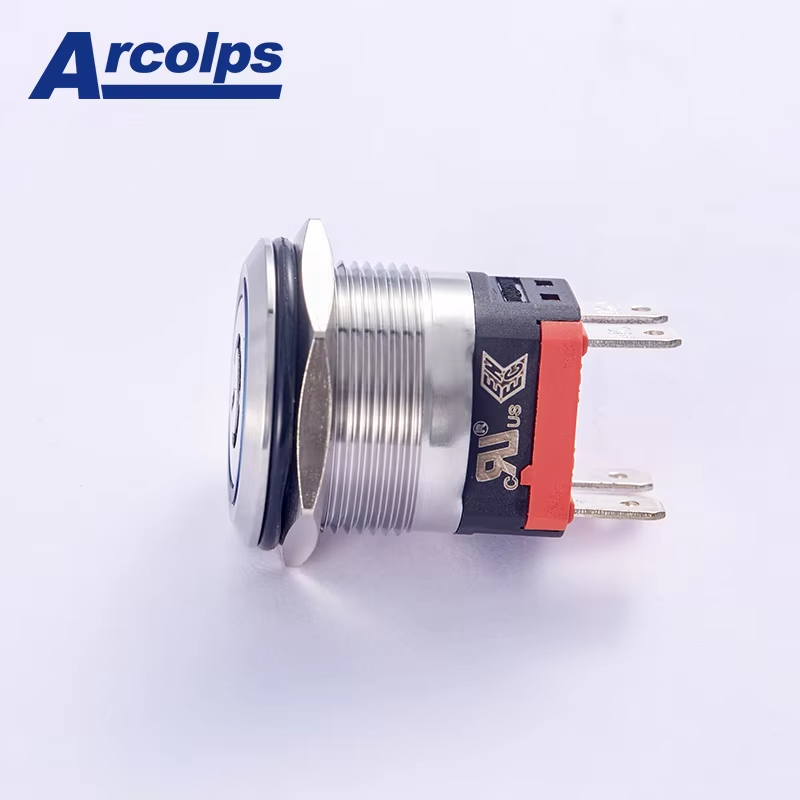

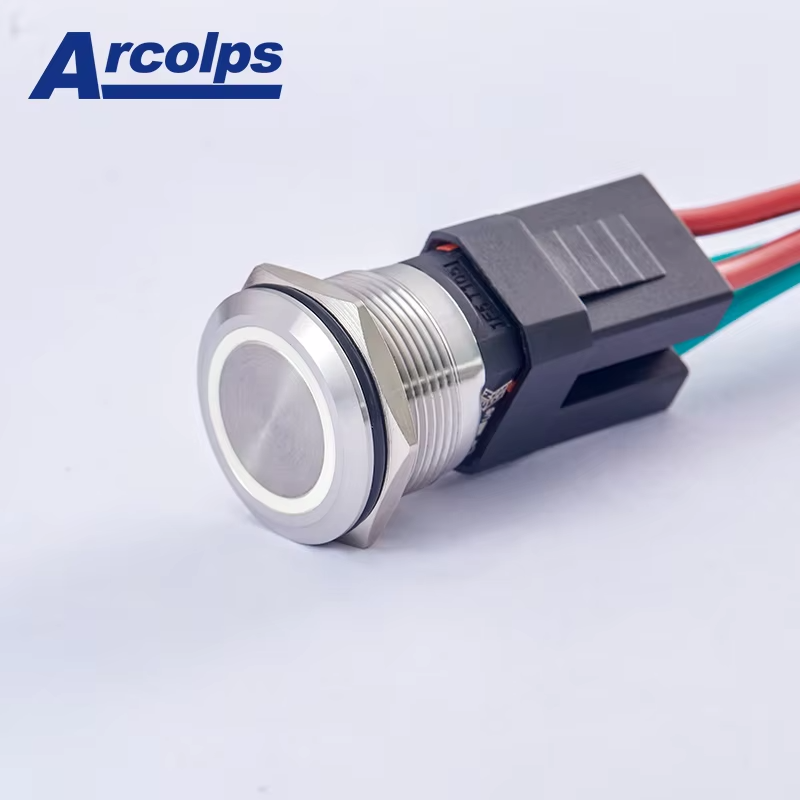

22mm 10A High Current Waterproof Metal Push Button Switch

830022 Robust 22mm Metal Push Button Switch

Engineered for excellence, this 22mm metal push button switch delivers 10A high-current performance. Built to withstand harsh industrial environments, it features an IP67 waterproof rating and holds ENEC and IEC certifications, ensuring reliability and safety in demanding applications.

  • High Durability: Mechanical life of 200,000 cycles.
  • Industrial Grade: IP67 waterproof rating for harsh conditions.
  • Certified Quality: ENEC and IEC compliant.

Product Attributes

FOB UnitPiece
FOB Price$1.00
Packaging & DeliveryCustomized options available

Technical Specifications

Parameter Value
Model Number 830022
Rating 10A 250V T105
Operating Temp. -25℃±105℃
Contact Resistance ≤50mΩ
Insulation Resistance ≥1000MΩ
Dielectric Strength Contact to Panel≥2000V, Contact to Contact 1500V
Mechanical Life 200,000 Cycles
Electrical Life 50,000 Cycles
Sealing IP65 (IP67 upon request)
