Waterproof 10A Push Button Switch 30mm IP67 High Temperature Push Button Switch
Waterproof 10A Push Button Switch 30mm IP67 High Temperature Push Button Switch
Waterproof 10A Push Button Switch 30mm IP67 High Temperature Push Button Switch
Waterproof 10A Push Button Switch 30mm IP67 High Temperature Push Button Switch
Waterproof 10A Push Button Switch 30mm IP67 High Temperature Push Button Switch
Waterproof 10A Push Button Switch 30mm IP67 High Temperature Push Button Switch
Waterproof 10A Push Button Switch 30mm IP67 High Temperature Push Button Switch
Waterproof 10A Push Button Switch 30mm IP67 High Temperature Push Button Switch
Waterproof 10A Push Button Switch 30mm IP67 High Temperature Push Button Switch
Waterproof 10A Push Button Switch 30mm IP67 High Temperature Push Button Switch
Waterproof 10A Push Button Switch 30mm IP67 High Temperature Push Button Switch
Waterproof 10A Push Button Switch 30mm IP67 High Temperature Push Button Switch
Specifications
value :
Protection Classification IP65 (IP67 upon request)
Delivery Time :
30
MOQ :
1000
Payment Terms :
T/T
parameter :
Sealing
Description

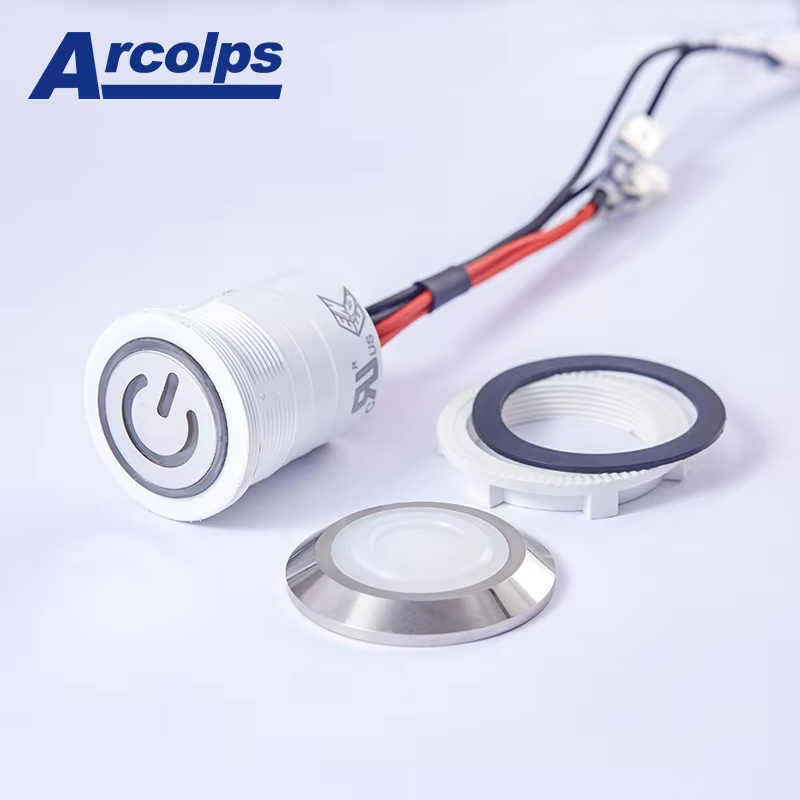

30mm Waterproof 10A Metal Push Button Switch High Temperature Strong Current

Heavy-Duty 30mm 10A Metal Push Button Switch

Engineered for reliability, this 30mm metal push button switch features premium ENEC & IEC certification. Designed for versatility, it supports both momentary and latching actions, encased in a rugged IP67 waterproof housing suitable for demanding industrial and outdoor environments.

Key Advantages

  • Certified Quality: ENEC & IEC certified for global industrial standards.
  • Robust Build: Heavy-duty 30mm metal construction for long-term durability.
  • Environmental Protection: IP67 waterproof rating ensures performance in harsh conditions.
  • Flexible Operation: Available in both momentary and latching configurations.

Product Attributes

FOB UnitPiece
FOB Price1.0
Packaging & DeliveryStandard industrial packaging

Technical Specifications

Parameter Value
Model Number 830030
Rating 2A 250V T105
Operating Temp. Range -25℃±105℃
Contact Resistance ≤50mΩ
Insulation Resistance ≥1000MΩ
Dielectric Strength Contact to Panel≥2000V, Contact to Contact 1500V
Mechanical Life 200,000 Cycles
Electrical Life 50,000 Cycles
Sealing IP65 (IP67 upon request)
