8mm Momentary Metal Push Button Switch Waterproof 2A Low Current
8mm Momentary Metal Push Button Switch Waterproof 2A Low Current
8mm Momentary Metal Push Button Switch Waterproof 2A Low Current
8mm Momentary Metal Push Button Switch Waterproof 2A Low Current
8mm Momentary Metal Push Button Switch Waterproof 2A Low Current
8mm Momentary Metal Push Button Switch Waterproof 2A Low Current
8mm Momentary Metal Push Button Switch Waterproof 2A Low Current
8mm Momentary Metal Push Button Switch Waterproof 2A Low Current
8mm Momentary Metal Push Button Switch Waterproof 2A Low Current
8mm Momentary Metal Push Button Switch Waterproof 2A Low Current
8mm Momentary Metal Push Button Switch Waterproof 2A Low Current
8mm Momentary Metal Push Button Switch Waterproof 2A Low Current
Specifications
value :
Protection Classification IP65, and can be made to IP67 upon request
MOQ :
1000
Delivery Time :
30
Payment Terms :
T/T
parameter :
Sealing
Description

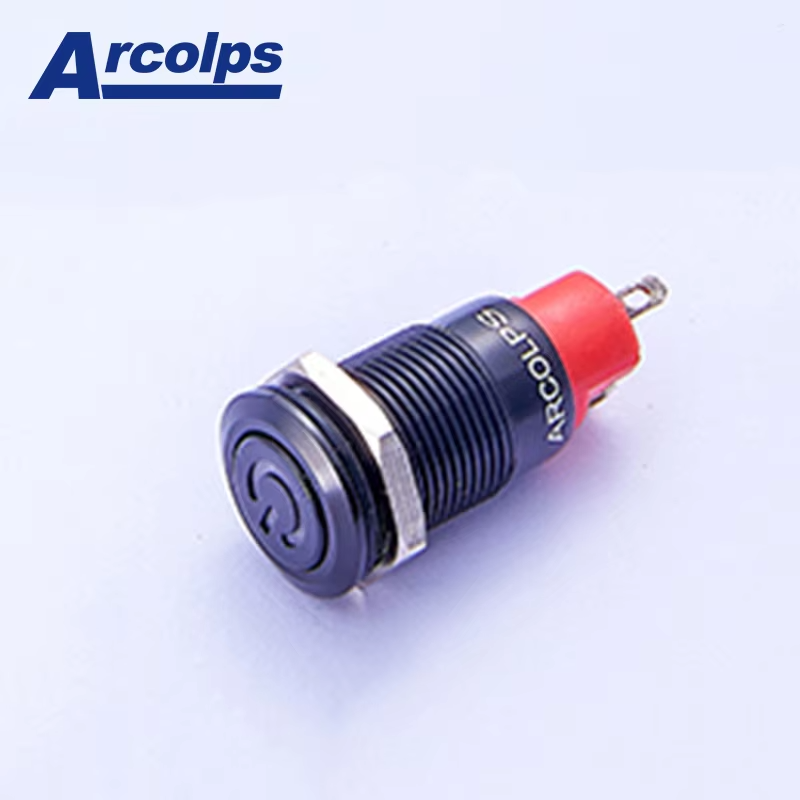

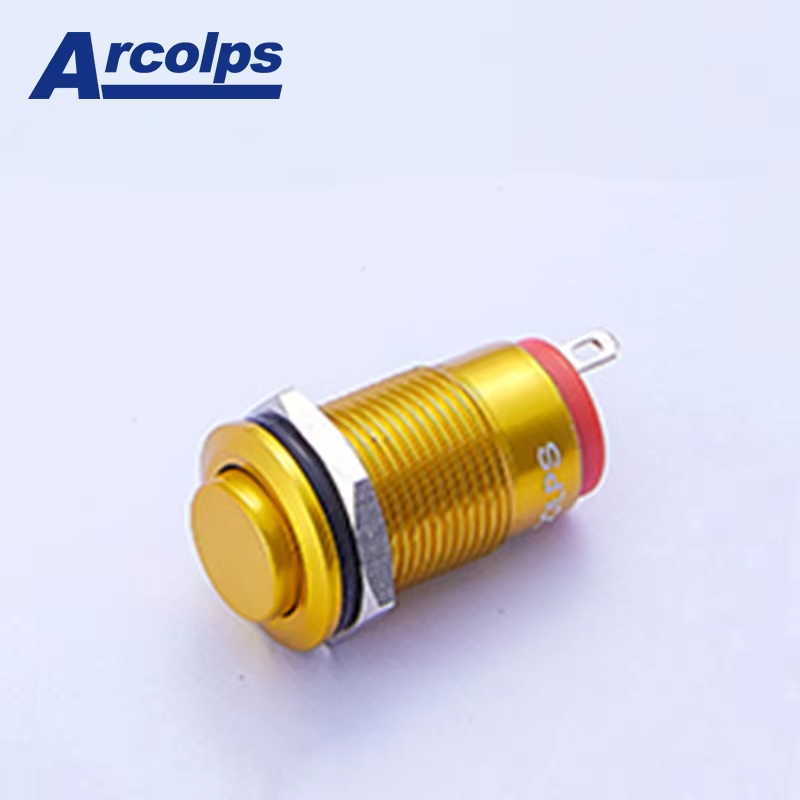

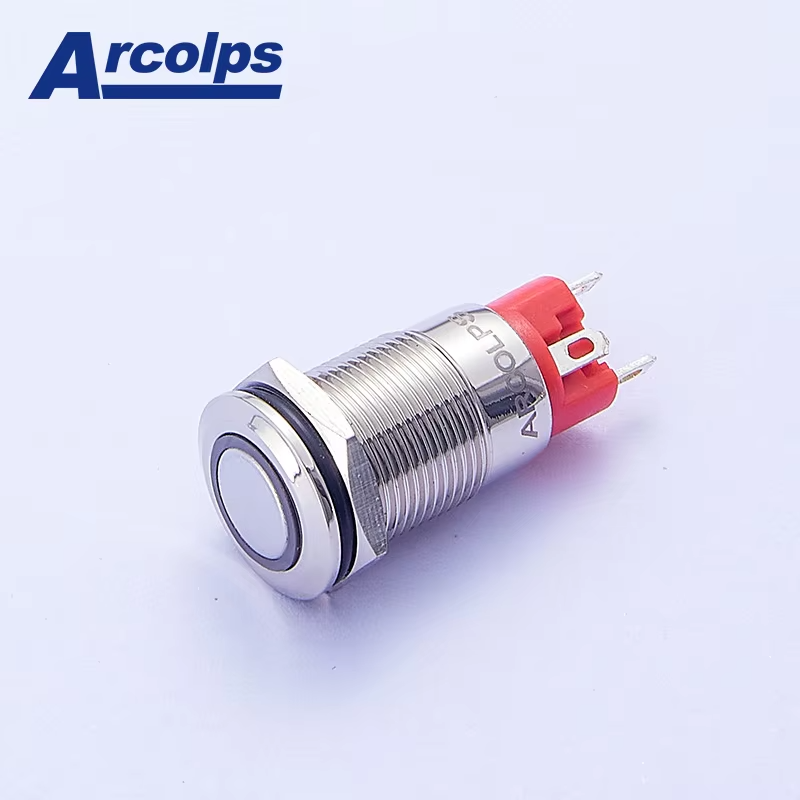

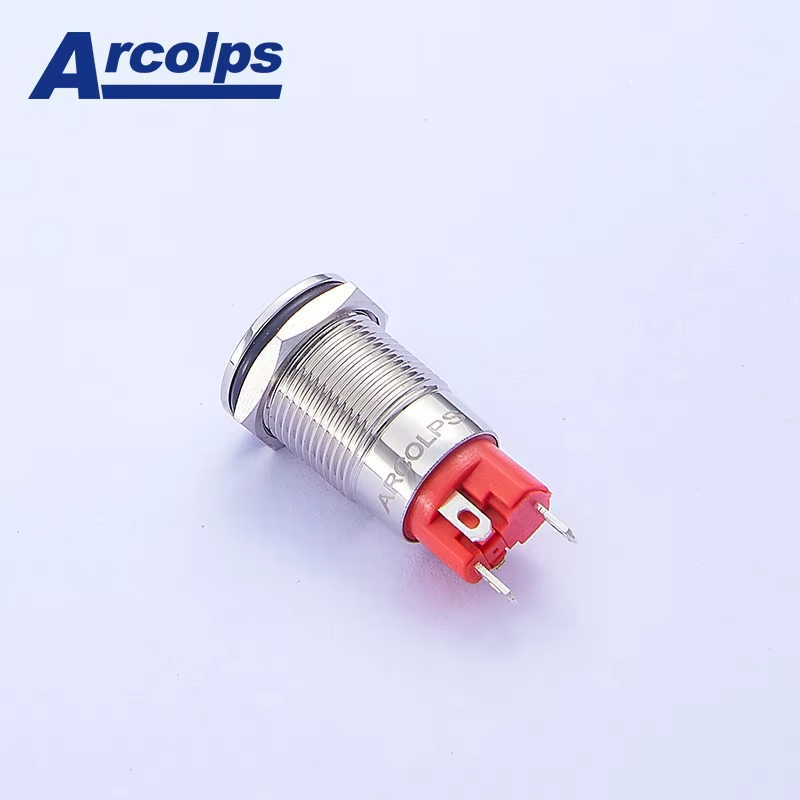

Arcolps 8mm Waterproof Momentary Metal Push Button Switch

8mm Waterproof Momentary Metal Push Button Switch 2A Low Current

The Arcolps 8mm Waterproof Momentary Metal Push Button Switch is a compact and reliable solution for low-current applications. With a 2A, 250V rating, this switch is ideal for small electronic devices and control panels. Its IP65 waterproof rating ensures durability in various environments.

  • Compact 8mm mounting diameter
  • IP65 Waterproof protection
  • 2A, 250V Electrical rating
  • Reliable momentary operation
8mm Momentary Metal Push Button Switch Waterproof 2A Low Current

Product Attributes

FOB Unit
Piece
FOB Price
$1.0
Packaging & Delivery
Custom options available

Technical Specifications

Parameter Value
Model Number 830108
Rating 2A 250V T105
Operating Temp. Range -25℃±105℃
Contact Resistance ≤50mΩ
Insulation Resistance ≥1000MΩ
Dielectric Strength Contact to Panel≥2000V, Contact to Contact 1500V
Mechanical Life 200000 Cycles
Electrical Life 50000 Cycles
Sealing IP65 (IP67 upon request)
