Waterproof Metal Push Button Switch Momentary 2A 10mm Momentary Switch
Waterproof Metal Push Button Switch Momentary 2A 10mm Momentary Switch
Waterproof Metal Push Button Switch Momentary 2A 10mm Momentary Switch
Waterproof Metal Push Button Switch Momentary 2A 10mm Momentary Switch
Waterproof Metal Push Button Switch Momentary 2A 10mm Momentary Switch
Waterproof Metal Push Button Switch Momentary 2A 10mm Momentary Switch
Waterproof Metal Push Button Switch Momentary 2A 10mm Momentary Switch
Waterproof Metal Push Button Switch Momentary 2A 10mm Momentary Switch
Waterproof Metal Push Button Switch Momentary 2A 10mm Momentary Switch
Waterproof Metal Push Button Switch Momentary 2A 10mm Momentary Switch
Waterproof Metal Push Button Switch Momentary 2A 10mm Momentary Switch
Waterproof Metal Push Button Switch Momentary 2A 10mm Momentary Switch
Specifications
Payment Terms :
T/T
value :
Protection Classification IP65, and can be made to IP67 upon request
Delivery Time :
30
MOQ :
1000
parameter :
Sealing(front of Panel only)
Description

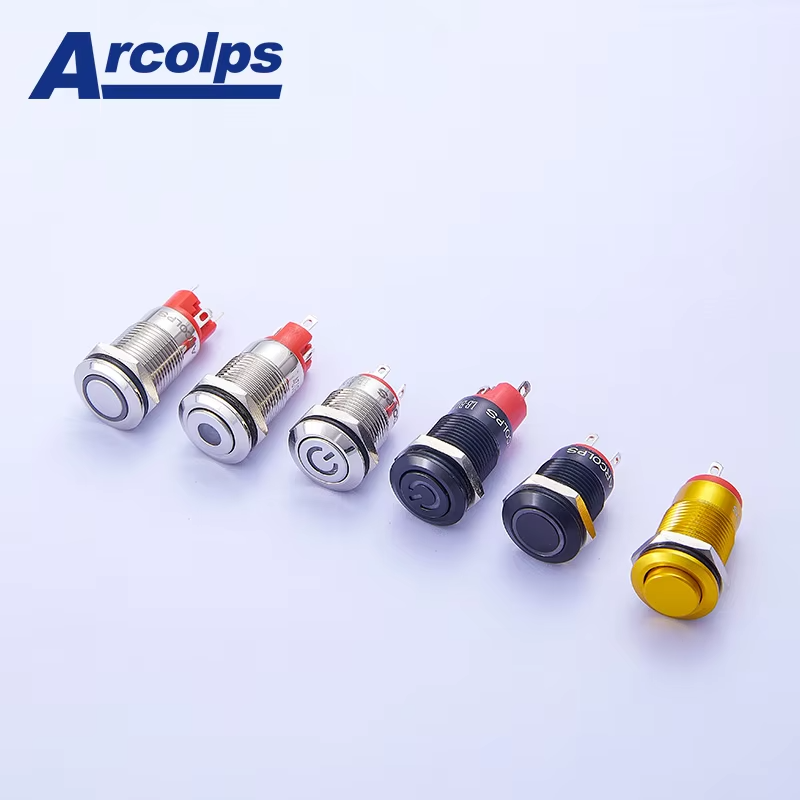

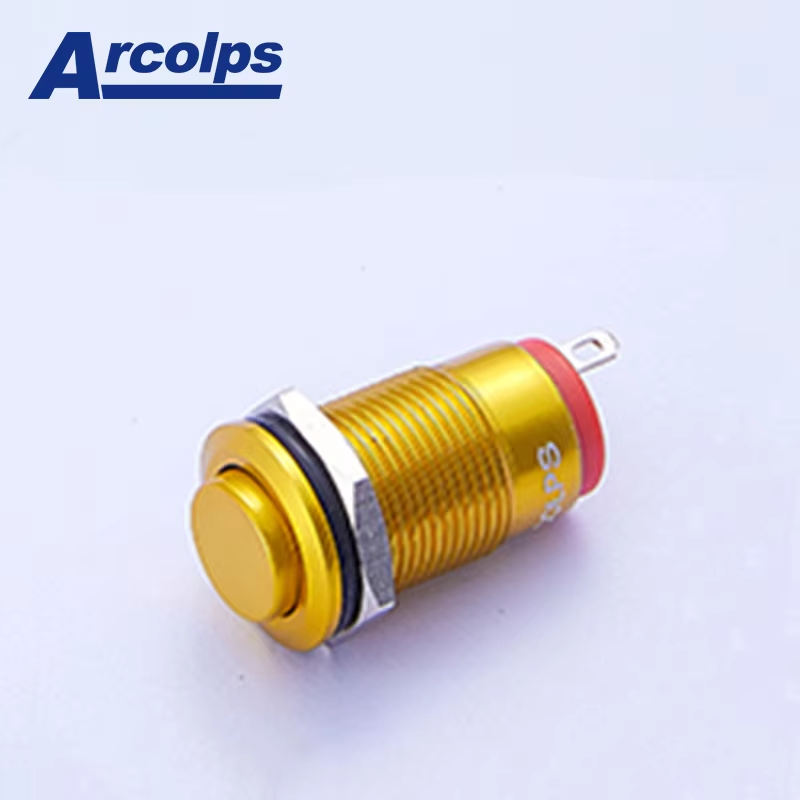

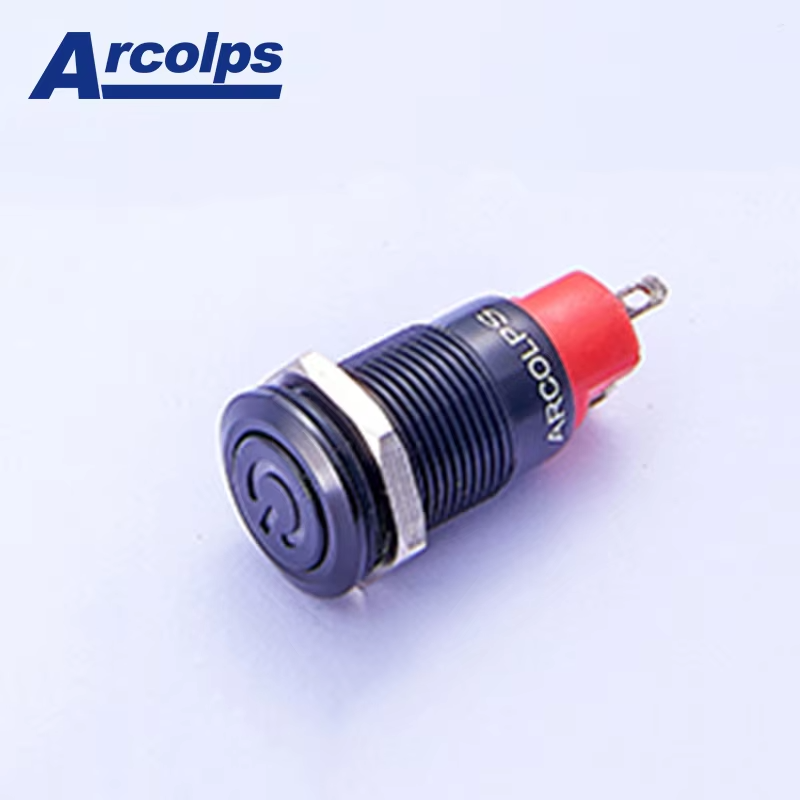

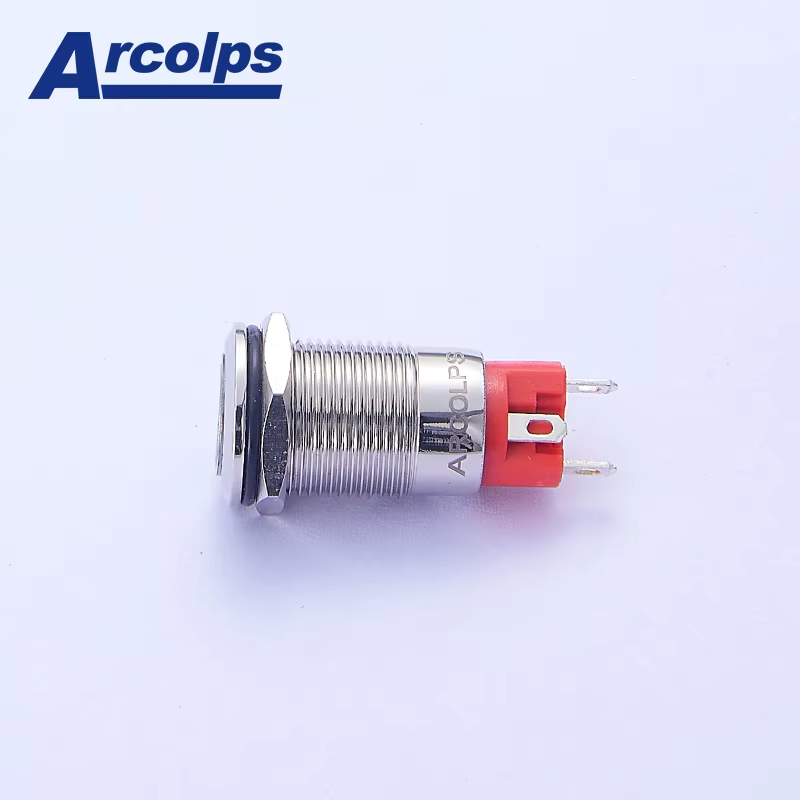

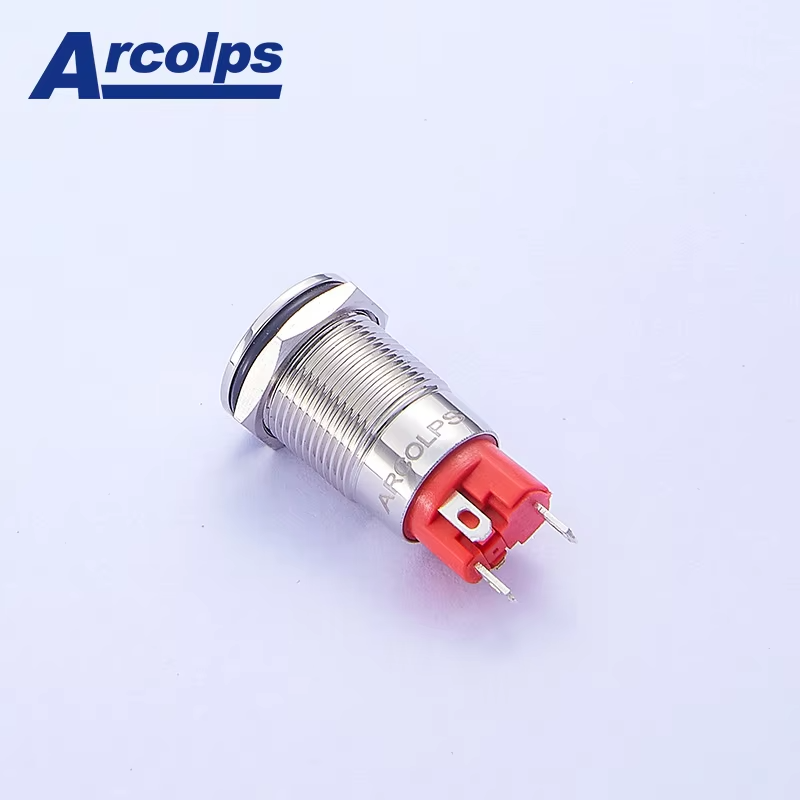

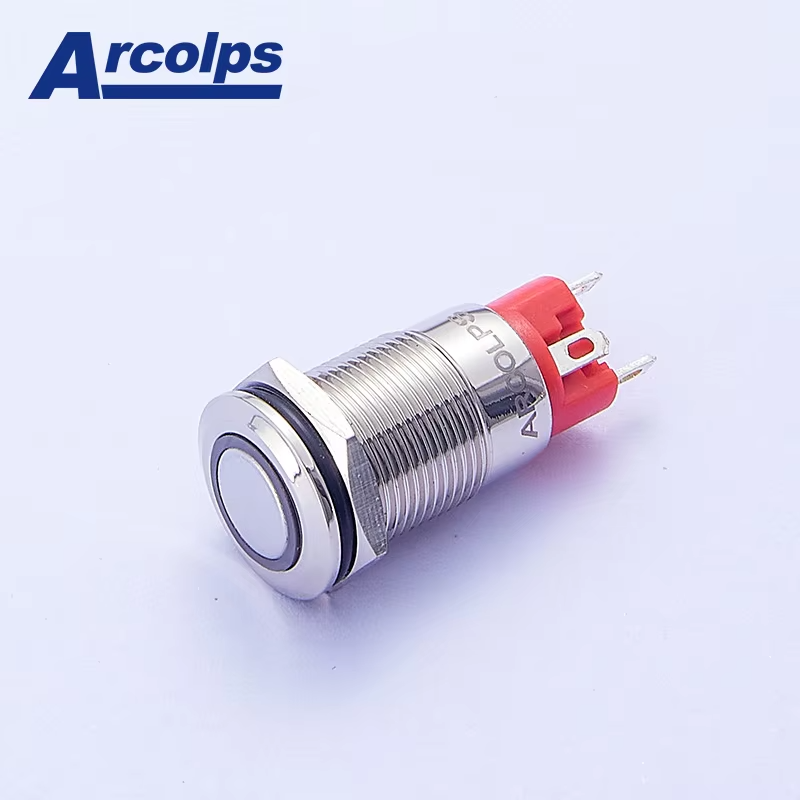

Arcolps 10mm Waterproof Momentary Metal Push Button Switch

The Arcolps 10mm Waterproof Momentary Metal Push Button Switch is a compact and reliable solution for low-current applications. With a 2A, 250V rating, this switch is ideal for small electronic devices and control panels. Its IP65 waterproof rating ensures durability in various environments.

  • Compact Design: Perfect for space-constrained control panels.
  • Durable Construction: Built for long-term reliability in industrial settings.
  • IP65 Protection: Resistant to water ingress for enhanced environmental durability.

Product Attributes

FOB Unitpiece
FOB Price1.0
MOQNot specified
InquiryContact info@arcolps.com

Technical Specifications

Parameter Value
Model Number 830110
Rating 2A 250V T105
Operating Temp. Range -25℃±105℃
Contact Resistance ≤50mΩ
Insulation Resistance ≥1000MΩ
Dielectric Strength Contact to Panel≥2000V, Contact to Contact 1500V
Mechanical Life 200,000 Cycles
Electrical Life 50,000 Cycles
Sealing IP65 (IP67 available upon request)
