12mm Waterproof 2A Momentary Metal Push Button Switch UL Certified
12mm Waterproof 2A Momentary Metal Push Button Switch UL Certified
12mm Waterproof 2A Momentary Metal Push Button Switch UL Certified
12mm Waterproof 2A Momentary Metal Push Button Switch UL Certified
12mm Waterproof 2A Momentary Metal Push Button Switch UL Certified
12mm Waterproof 2A Momentary Metal Push Button Switch UL Certified
12mm Waterproof 2A Momentary Metal Push Button Switch UL Certified
12mm Waterproof 2A Momentary Metal Push Button Switch UL Certified
12mm Waterproof 2A Momentary Metal Push Button Switch UL Certified
12mm Waterproof 2A Momentary Metal Push Button Switch UL Certified
12mm Waterproof 2A Momentary Metal Push Button Switch UL Certified
12mm Waterproof 2A Momentary Metal Push Button Switch UL Certified
Specifications
value :
IP65 (IP67 upon request)
MOQ :
1000
Payment Terms :
T/T
parameter :
Sealing
Delivery Time :
30
Description

Product Overview

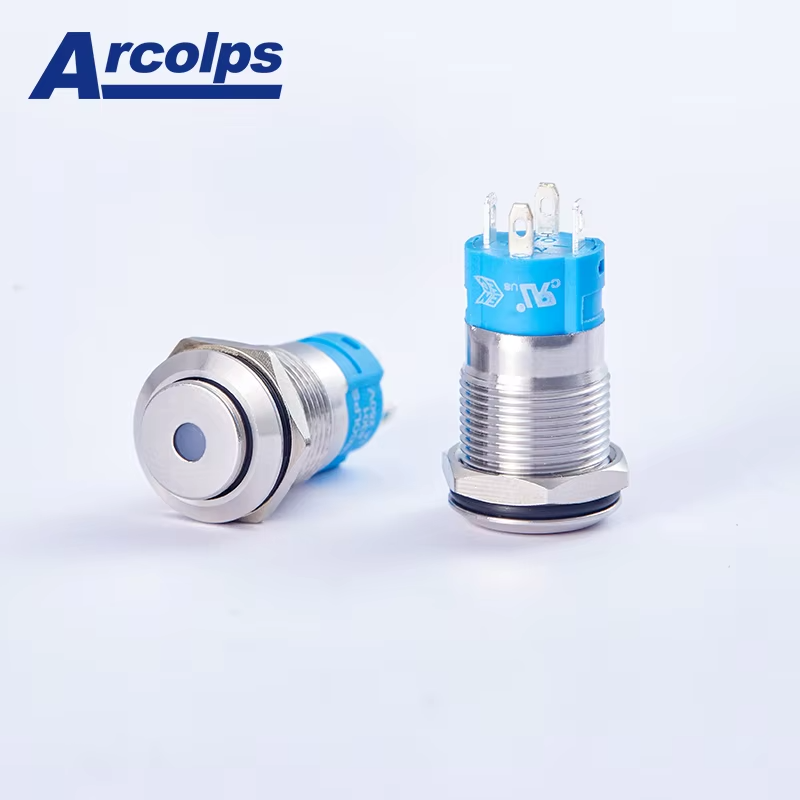

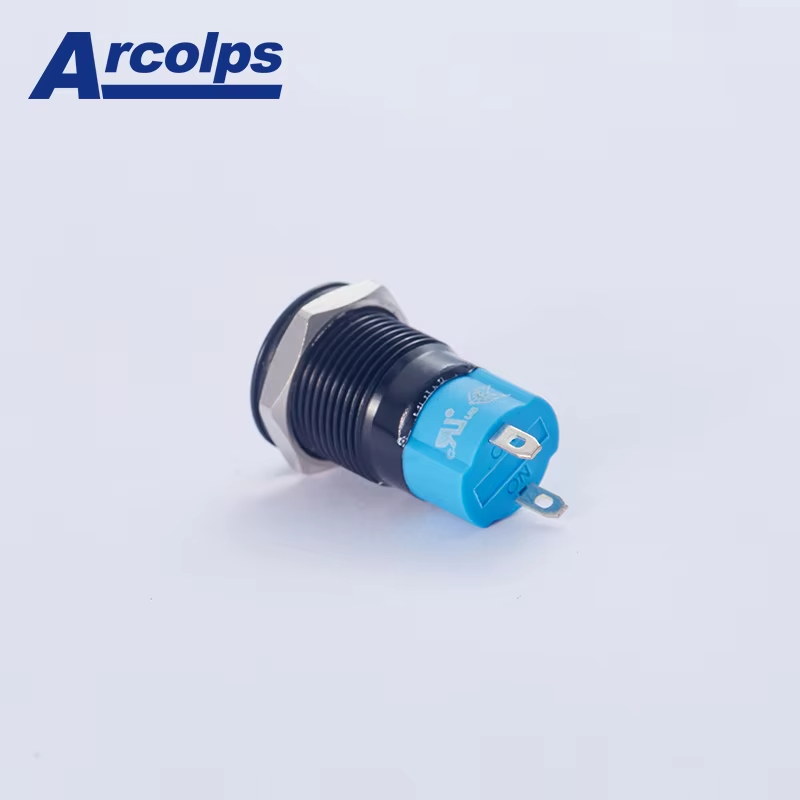

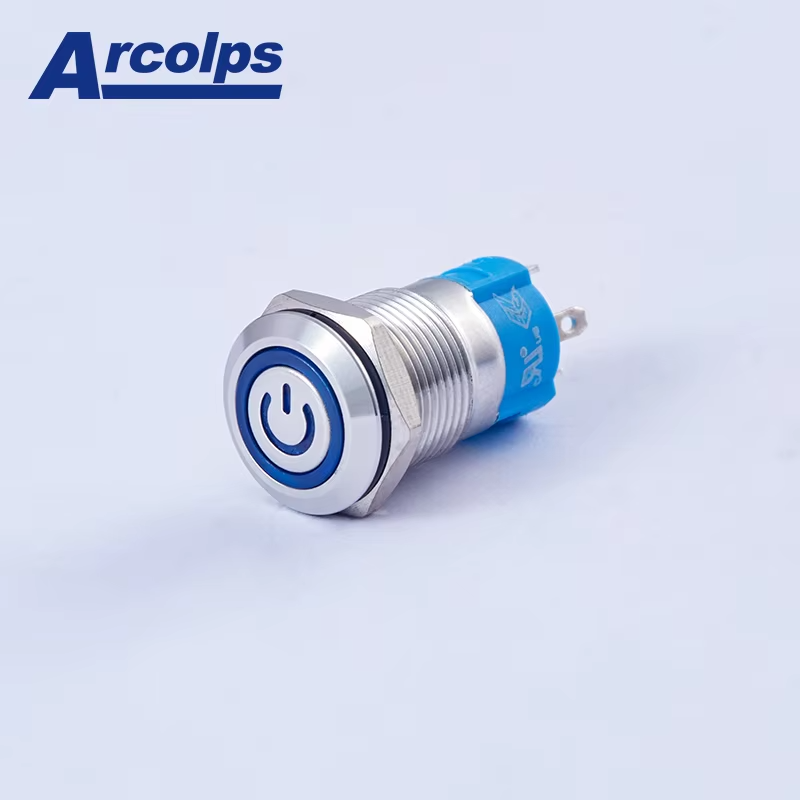

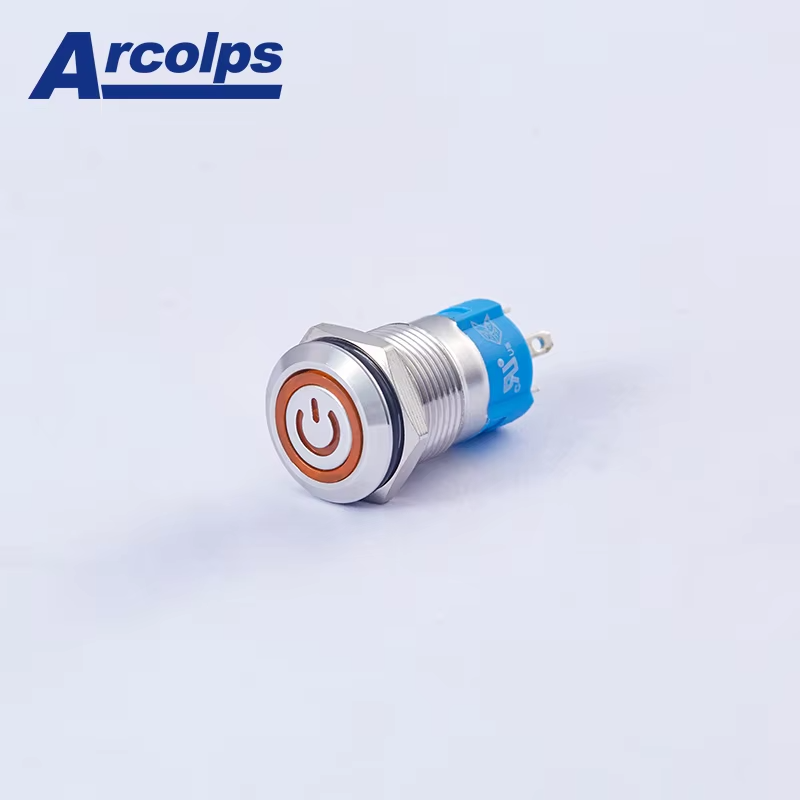

The 12mm Low Current Metal Push Button Switch is a compact, durable solution for low-power applications. With its sleek stainless-steel body, IP67 waterproof rating, and optional LED illumination, this momentary switch is ideal for electronics, control panels, and home appliances.

  • Compact Design: 12mm mounting diameter suitable for space-constrained panels.
  • High Durability: Mechanical life of 200,000 cycles.
  • Environmental Protection: IP65 standard (IP67 upgradeable) for harsh environments.
  • Versatile Use: Perfect for industrial control, consumer electronics, and appliances.

Product Attributes

FOB UnitPiece
FOB Price$1.00
MOQNot specified
Packaging & DeliveryStandard industrial packaging, contact info@arcolps.com for details.

Technical Specifications

Parameter Value
Model Number 830112
Rating 2A 250V T105
Operating Temp. -25℃±105℃
Contact Resistance ≤50mΩ
Insulation Resistance ≥1000MΩ
Dielectric Strength Contact to Panel≥2000V, Contact to Contact 1500V
Mechanical Life 200,000 Cycles
Electrical Life 50,000 Cycles
Sealing IP65 (IP67 upon request)
