Waterproof 25mm Metal Push Button Switch Momentary 2A IP65
Waterproof 25mm Metal Push Button Switch Momentary 2A IP65
Waterproof 25mm Metal Push Button Switch Momentary 2A IP65
Waterproof 25mm Metal Push Button Switch Momentary 2A IP65
Waterproof 25mm Metal Push Button Switch Momentary 2A IP65
Waterproof 25mm Metal Push Button Switch Momentary 2A IP65
Waterproof 25mm Metal Push Button Switch Momentary 2A IP65
Waterproof 25mm Metal Push Button Switch Momentary 2A IP65
Waterproof 25mm Metal Push Button Switch Momentary 2A IP65
Waterproof 25mm Metal Push Button Switch Momentary 2A IP65
Waterproof 25mm Metal Push Button Switch Momentary 2A IP65
Waterproof 25mm Metal Push Button Switch Momentary 2A IP65
Specifications
value :
Protection Classification IP65, and can be made to IP67 upon request
Payment Terms :
T/T
MOQ :
1000
parameter :
Sealing(front of Panel only)
Delivery Time :
30
Description
25mm Waterproof Momentary Metal Push Button Switch 2A for Industrial Control

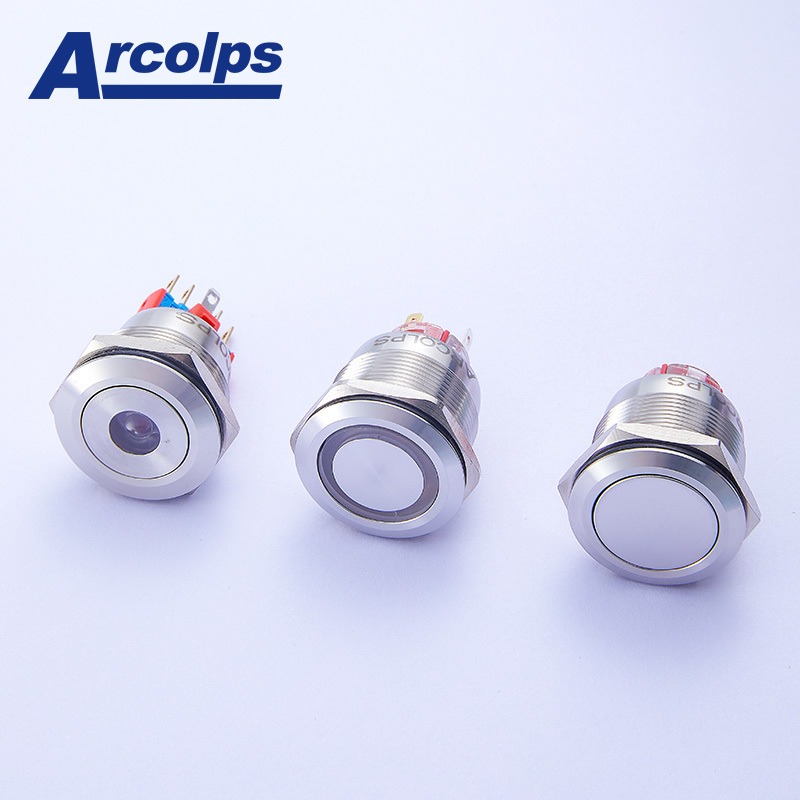

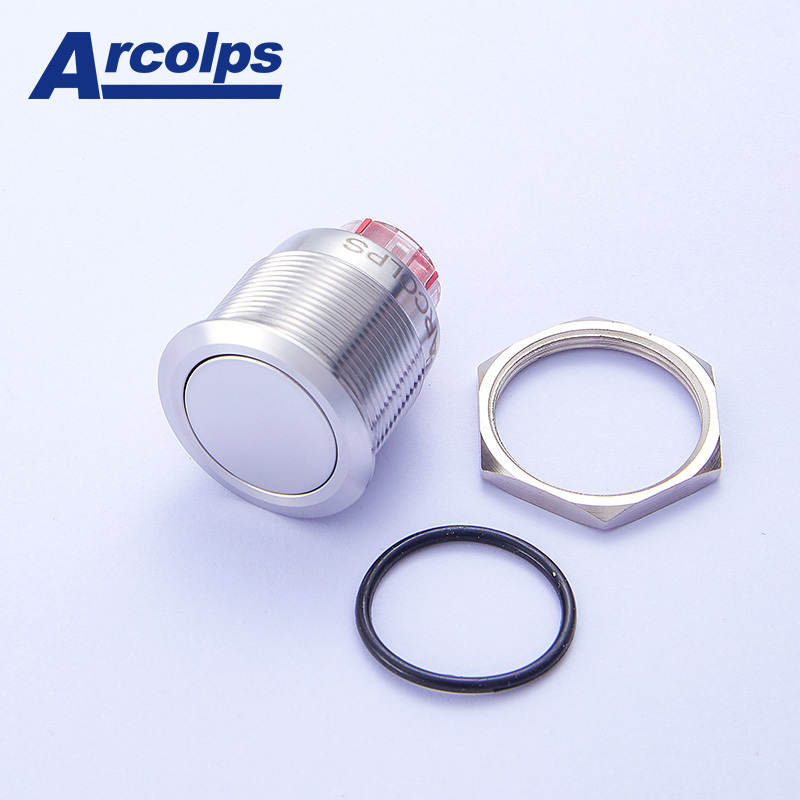

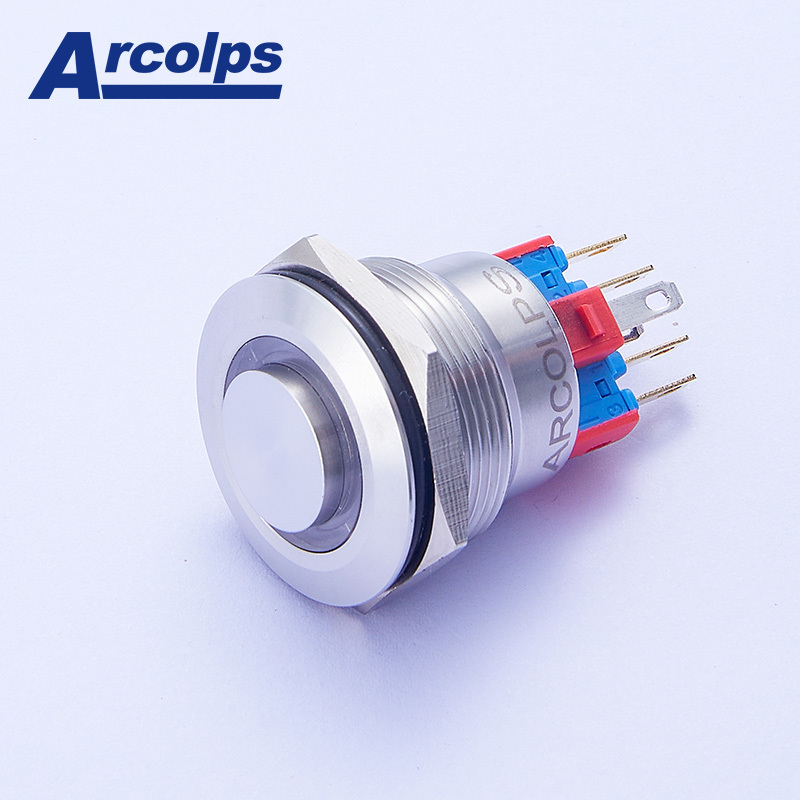

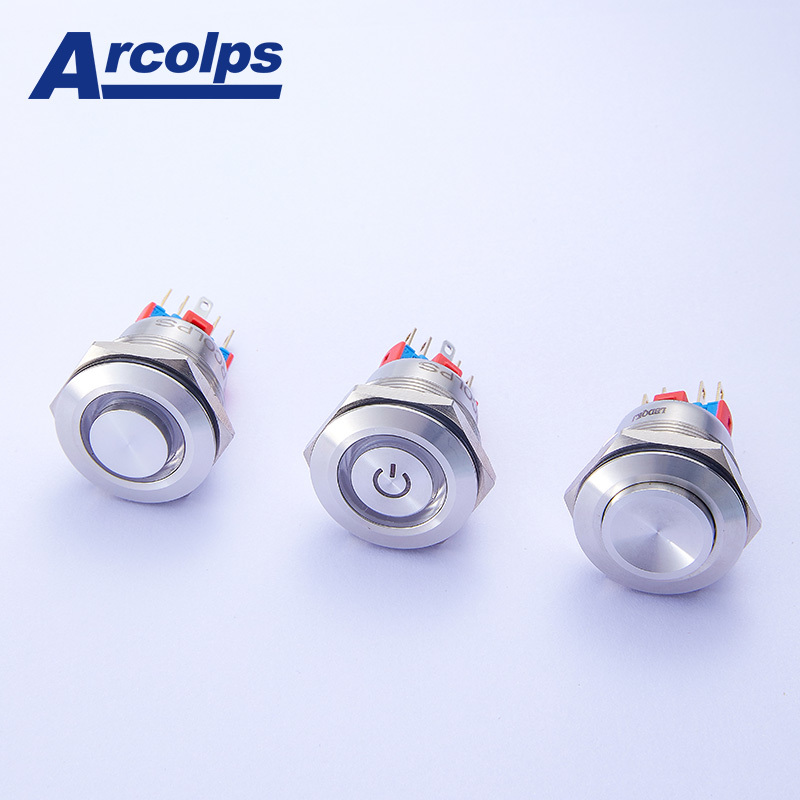

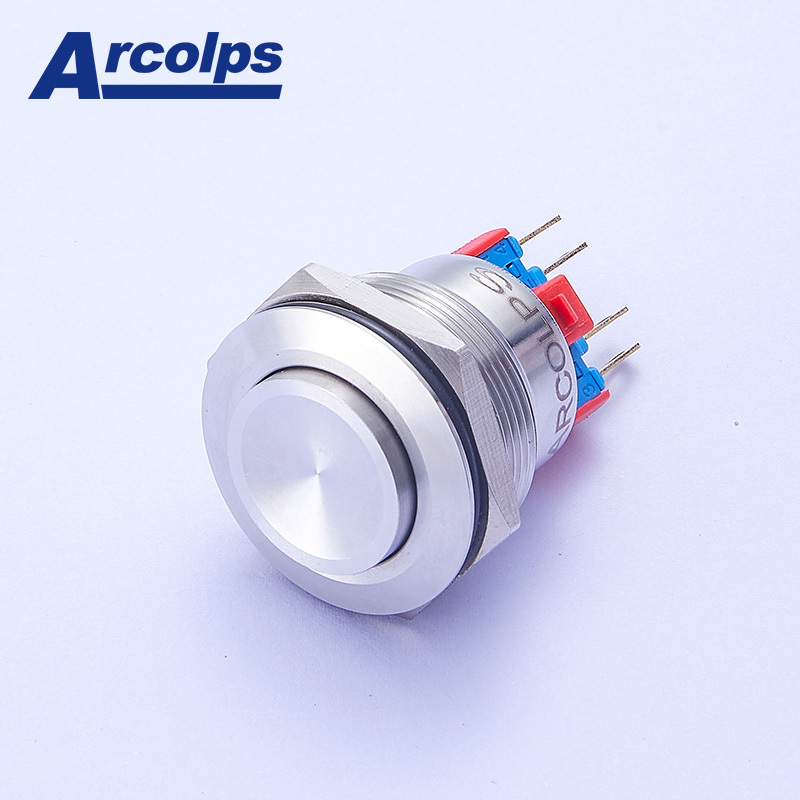

Arcolps 25mm Waterproof Metal Push Button Switch

The Arcolps 25mm Waterproof Metal Push Button Switch is engineered for high-reliability low current applications. With a robust 2A, 250V rating and an IP67 waterproof design, this switch ensures consistent performance in demanding industrial and outdoor environments.

Key Features & Applications

  • Reliable Performance: Rated for 2A, 250V with a long mechanical life of 200,000 cycles.
  • Environmental Durability: IP67 waterproof rating (front panel) for harsh conditions.
  • Versatile Use: Ideal for industrial control panels, automotive applications, and DIY electronics projects.
  • User Feedback: Features a momentary action mechanism with an integrated LED indicator.

Product Attributes

FOB Price$1.00
UnitPiece
MOQNot specified

Technical Specifications

Parameter Value
Model Number 8301
Rating 2A 250V T105
Operating Temp. Range -25℃ to 105℃
Contact Resistance ≤50mΩ
Insulation Resistance ≥1000MΩ
Dielectric Strength Contact to Panel≥2000V, C-to-C 1500V
Mechanical Life 200,000 Cycles
Electrical Life 50,000 Cycles
Sealing (Front) IP65 (IP67 available on request)
