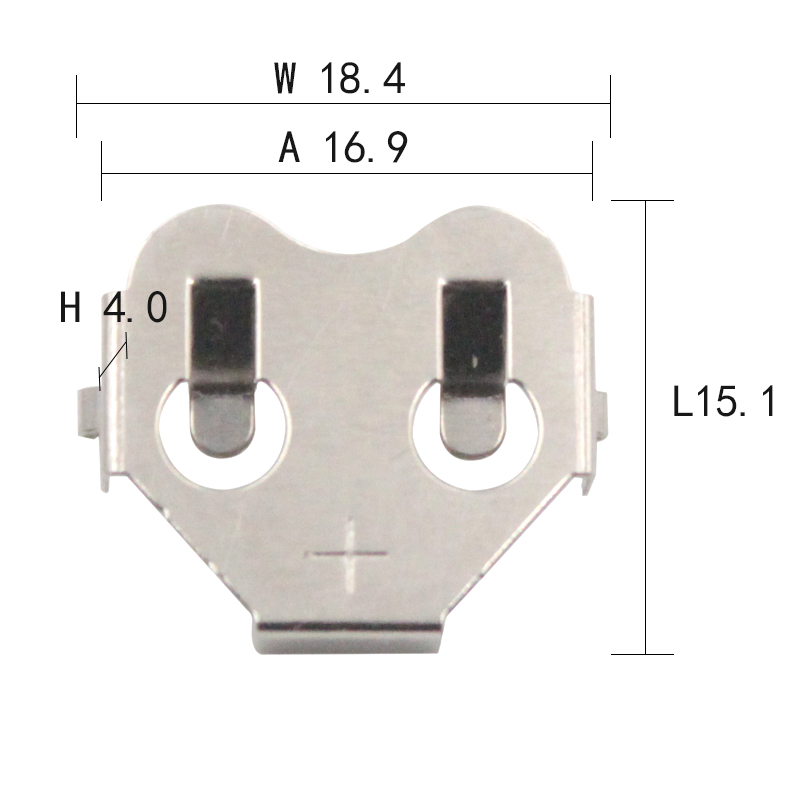

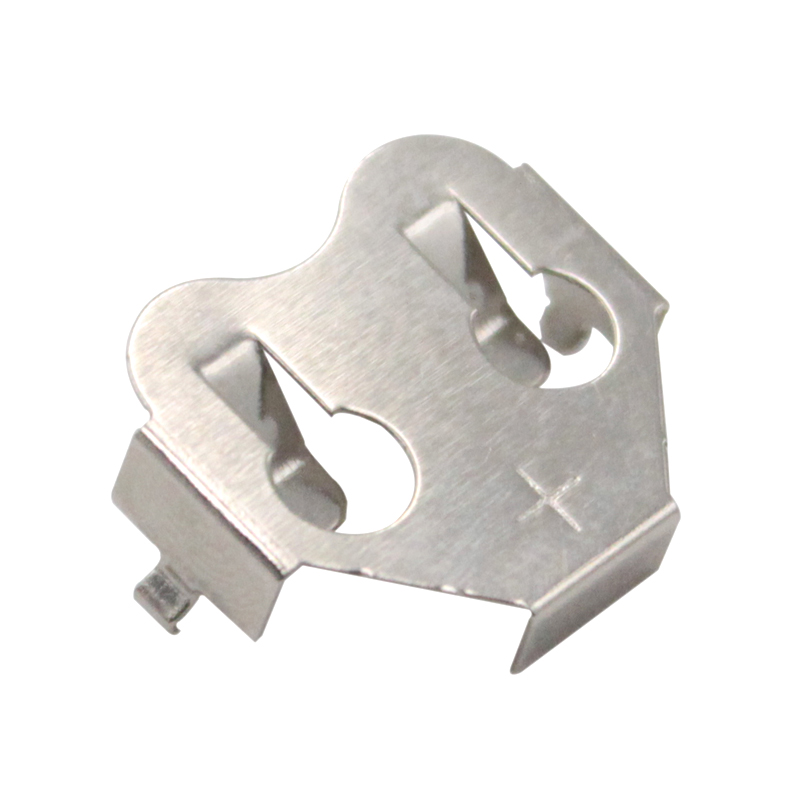

THM Holder For 16mm Cell-Phosphor Bronze

Product Description

The THM Holder for 16mm Cell – Phosphor Bronze is a high-quality through-hole battery holder designed for securely mounting 16mm coin cell batteries on printed circuit boards (PCBs). Manufactured from premium phosphor bronze, this battery holder offers excellent electrical conductivity, spring elasticity, and corrosion resistance. The precision-formed contact design ensures stable battery retention and reliable electrical performance in demanding electronic applications.

Designed for through-hole mounting (THM), this holder provides a secure mechanical connection during PCB assembly and simplifies battery replacement without soldering the battery directly to the circuit board. It is suitable for use with compatible 16mm coin cells in consumer electronics, medical devices, industrial controls, IoT equipment, wireless sensors, calculators, measuring instruments, memory backup circuits, and DIY electronic projects. OEM and ODM customization services are available for material thickness, plating, packaging, and special design requirements.

Product Specifications

Applications

The battery holder is widely used in PCB-mounted electronic products, RTC backup circuits, CMOS memory backup, wireless sensors, medical instruments, industrial controllers, security devices, calculators, electronic meters, IoT products, and embedded electronic systems.

Product Advantages

• Premium phosphor bronze for excellent conductivity.
• Strong spring force ensures reliable battery retention.
• Through-hole mounting provides secure PCB installation.
• Durable and corrosion-resistant construction.
• Easy battery replacement without soldering.
• Suitable for automated PCB assembly.
• OEM and custom manufacturing services available.

Product Functions

The THM battery holder securely holds a 16mm coin cell while providing stable electrical contact between the battery and the PCB. Its spring-contact design maintains consistent pressure, ensuring reliable power delivery and long-term performance.

Installation Instructions

1. Insert the holder into the PCB through-hole positions.
2. Solder the terminals to the circuit board.
3. Allow the solder joints to cool completely.
4. Insert the compatible 16mm coin cell into the holder.
5. Verify correct battery polarity before powering the circuit.

Precautions

• Use only compatible 16mm coin cell batteries.
• Avoid excessive force when inserting or removing the battery.
• Ensure proper soldering temperature during assembly.
• Keep the contact surfaces clean for optimal conductivity.
• Store in a dry environment to prevent oxidation.

Shipping Information

We support express delivery, air freight, sea freight, and railway transportation. Bulk orders, OEM production, and customized specifications are available with competitive lead times.

Payment Terms

We accept T/T, PayPal, Western Union, and other internationally accepted payment methods according to customer requirements.

Packaging

Standard packaging includes PE bags and export cartons. Customized packaging, reel packaging, tape-and-reel options, barcode labels, and OEM branding are available upon request.

After-Sales Service

Every THM battery holder is inspected before shipment to ensure reliable quality and dimensional accuracy. We provide professional technical support, responsive after-sales service, and replacement solutions for manufacturing defects. OEM and ODM services are available for custom battery holder and electronic connector projects.
