Specifications
private mold :
Yes
Brand Name :
SENONEE
Model Number :
SCR301
type :
SM Card
Interface :
usb, TYPE-C
card slots :
Single Phase
installation :
External
Place of Origin :
Guangdong, China
material :
ABS
support card :
SM
application :
POS, ATM, Mobile Phone, IUSB Pro, LAPTOP, mobile devices
Host Interface :
USB 2.0 CCID1 (also compliant with USB 1.1)
Transmission Speed :
12 Mbps (USB 2.0 full speed)
Standards :
ISO 7816 & EMV2 2000 Level 1
Protocols :
T=0, T=1, SLE 4432/42 (S=10), SLE 4418/28 (S=9), I2C (S=8)
Card Size :
ID-1 (full-size)
Smart Card Interface Speed :
420 Kbps (when supported by card)
Smart Card clock frequency :
Up to 5 MHZ
Supported card types :
5V, 3V and 1.8V Smart Cards ISO 7816 Class A, AB and C
SDK :
Provide SDK
Power to Smart Card :
60Ma
Description
Specification
Support card type
5V, 3V and 1.8V smart cards, ISO 7816 Class A, AB and C.
Interface Type
USB 2.0 CCID1 (also compliant with USB 1.1)
Transfer speed
12Mbps
Line length
47.24inch
Certification standards
ISO-7816 and EMV2 2000 Level 1, CE, FCC, VCCI, CCID, Microsoft WHQL
Durability
100,000 times
Secondary development
Support multi-language development, provide routines
operating system
Windows 10, 8, 7 (32/64 bit), Windows XP, Vista (32/64 bit), Windows Server 2003/2008 (32/64 bit).
Operating temperature
0-55℃/32-131℉

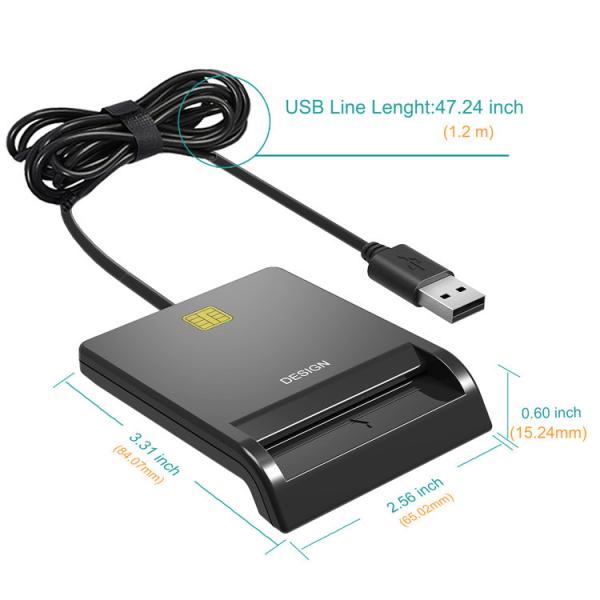

Product Size
3.26inch*2.55inch*0.95inch
Package dimensions
96*103*25mm
