Short Circuit Proof Optical Transport Equipment , Black Rectifier Module Telecom
Short Circuit Proof Optical Transport Equipment , Black Rectifier Module Telecom
Short Circuit Proof Optical Transport Equipment , Black Rectifier Module Telecom
Short Circuit Proof Optical Transport Equipment , Black Rectifier Module Telecom
Short Circuit Proof Optical Transport Equipment , Black Rectifier Module Telecom
Short Circuit Proof Optical Transport Equipment , Black Rectifier Module Telecom
Short Circuit Proof Optical Transport Equipment , Black Rectifier Module Telecom
Short Circuit Proof Optical Transport Equipment , Black Rectifier Module Telecom
Specifications
Brand Name :
ELTEK
Model Number :
Flatpack2 48/2000 HE
Certification :
CE, RoHS
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000 sets/month
Delivery Time :
within 10 days of payment
Packaging Details :
carton box
Part No. :
241115.105
Efficiency :
> 96% at 30~70% load
Output Power :
2000 W at nominal input
Maximum Current :
41.7 Amps at 48V DC and nominal
AC Input voltage :
85-300V AC (Nominal 185 – 275V AC)
DC Output voltage :
53.5V DC (adj. range: 43.5-57.6V DC)
Description

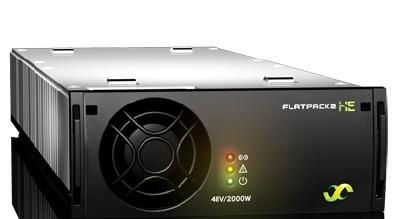

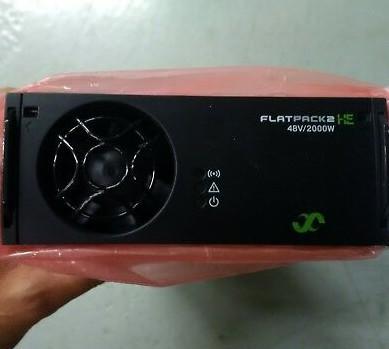

Rectifier Modules Flatpack2 Eltek Valere 48V 2000W HE 48/2000 HE 241115.105​


Technical Specification:


AC Input:
Voltage :85-300V AC (Nominal 185 – 275V AC)
Frequency :45 to 66Hz
DC Output:
Voltage: 53.5V DC (adj. range: 43.5-57.6V DC)
Output Power : 2000 W at nominal input
Maximum Current: 41.7 Amps at 48 VDC and nominal
Output Protection: Overvoltage shutdown, Short circuit proof, High temperature protection
Efficiency:> 96% at 30~70% load
Operating Temp.:-40 to +75°C (-40 to +158°F)
MTBF :> 350, 000 hours


Mechnical Specification:


Dimensions- 109 x 41.5 x 327mm (wxhxd)
Weight- 1.95 kg (4.31lbs)


Ordering Information:


Part No.: 241115.105 Flatpack2 Rectifier Module 48/2000 HE
