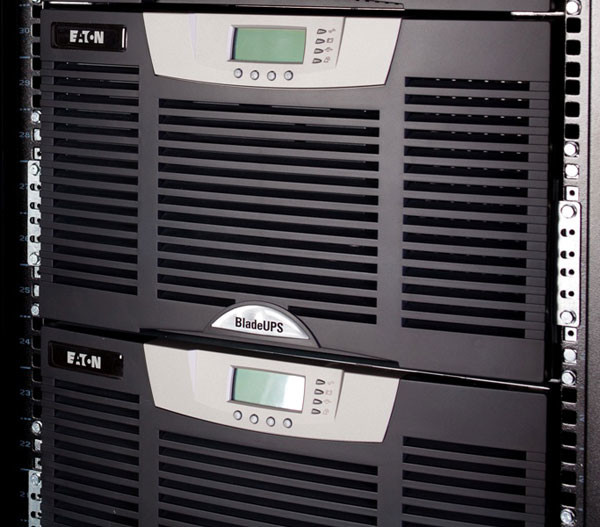

Scalable Double Conversion Eaton Blade UPS Power System
Scalable Double Conversion Eaton Blade UPS Power System
Scalable Double Conversion Eaton Blade UPS Power System
Scalable Double Conversion Eaton Blade UPS Power System
Scalable Double Conversion Eaton Blade UPS Power System
Scalable Double Conversion Eaton Blade UPS Power System
Scalable Double Conversion Eaton Blade UPS Power System
Scalable Double Conversion Eaton Blade UPS Power System
Scalable Double Conversion Eaton Blade UPS Power System
Scalable Double Conversion Eaton Blade UPS Power System
Specifications
Brand Name :
Eaton
Model Number :
ups system
Certification :
CE, RoHS
Place of Origin :
Hubei, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
10000 Pieces/Month
Delivery Time :
within 10 days of payment
Packaging Details :
carton & PVC packaging
Power Rating :
8-60 kW
Topology :
Double conversion on demand
Frequency :
50/60 Hz
Efficiency :
Up to 98%
Configuration :
Rack mount
Voltage :
208 Vac/400 Vac
Description

Eaton Blade UPS Power System Scalable Double-Conversion Backup Power

Product Snapshot

Power Rating 8-60 kW
Voltage 208 Vac and 400 Vac models
Frequency 50/60 Hz
Topology Double conversion on demand
Efficiency Up to 98%
Configuration Rackmount
Product Series Eaton

Technical Specifications

GENERAL
Power rating 12 kW per UPS module
Efficiency up to 98%
Heat dissipation 371W/1266 BTU/hr at 100% rated load
Cooling Fan cooled, temperature microprocessor monitored;
front air entry, rear exhaust
Audible noise, normal operation <60 dBA at 1 meter
OPERATION
Nominal Input Voltage 220/230/240
Input Voltage Range +15%, -20%
Operating Frequency 50 Hz Nominal (adjustable limits +_ 0.01 Hz to +_ 3Hz
Nominal Output Voltage 220/230/240
Output Voltage Regulation ± 3% for input voltages of +15% to -20%
Output Voltage Waveform Sine wave
Output Voltage THD 5% or less at rated kW load
Overload Capacity 150% surge and 125% for10 min. on line, 150% surge and 110% for 10 minutes on inverter
Transfer Time 0 ms
Lightning, Surge & Noise Protection 2000:1 spike attenuation using ANSI/IEEE C62.41 and C62.45 Category A and Category B tests.
Common Mode – >120 dB. Normal Mode – >60dB
Efficiency 85 / 88 / 91 / 90
Safety Certification UL, CSA (cUL), Complies with European Low Voltage Directive 73/23/EEC
EMI Compliance FCC Class A, Complies with European Electromagnetic Compatibility Directve 89/336/EEC
Testing Standards ANSI/EEE C62.41 (1991); ANSI/EEE C62.45 (2002); EN62040-2
Communication RS-232 serial port (DB-25), plus contact closures
ENVIROMENTAL
Operating Temperature 0 to 40° C
Storage -20° C to +60° C
Relative Humidity 0 to 95% without condensation
Audible Noise at 1m 47 / 49 / 51 / 51
Altitude 3, 050m (10,000 ft.) maximum

1. Due to continuous product improvements, program specifications are subject to change without notice.

Industries & Applications

Both scalable and modular, the rackmount EATON BladeUPS Power System expands power protection from 8 to 60 KW in a single 19-inch rack while reducing energy and cooling costs for your industrial UPS system or commercial UPS system.

The EATON Blade UPS is purpose-engineered for demanding applications require extraordinary levels of reliability such as 911 centers, global military installations, marine vessels, and other mission-critical applications that demand an industrial UPS system that is also a high quality power backup system for sensitive equipment. Applications include but are not limited to:

Police & fire emergency call centers

Military applications

“Lights-out” or “dark factory” manufacturing

Large data centers or IT systems

Critical network switching & processing equipment

Large-scale PLC controls
