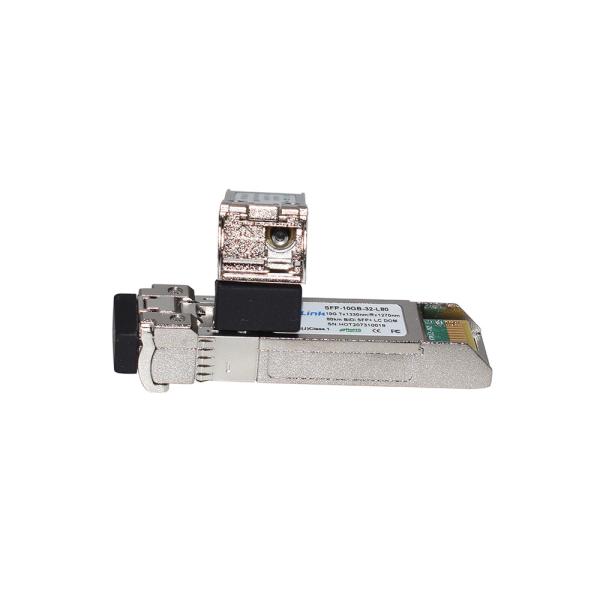

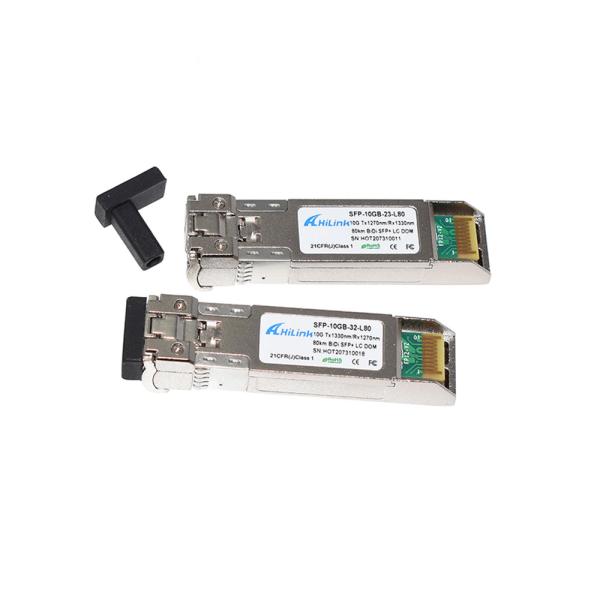

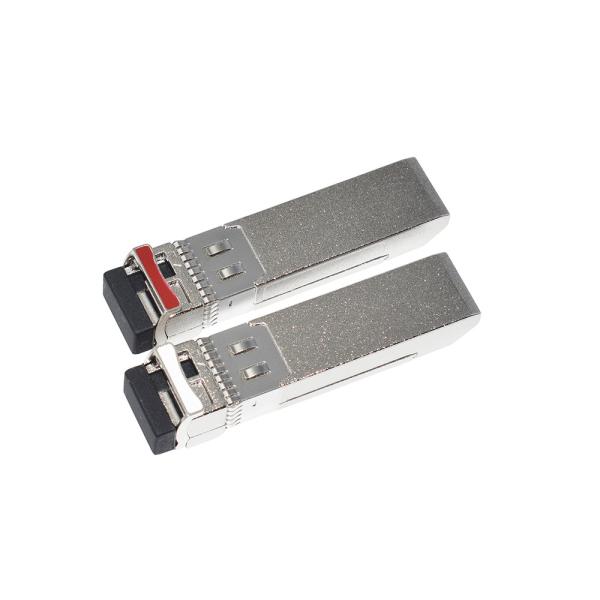

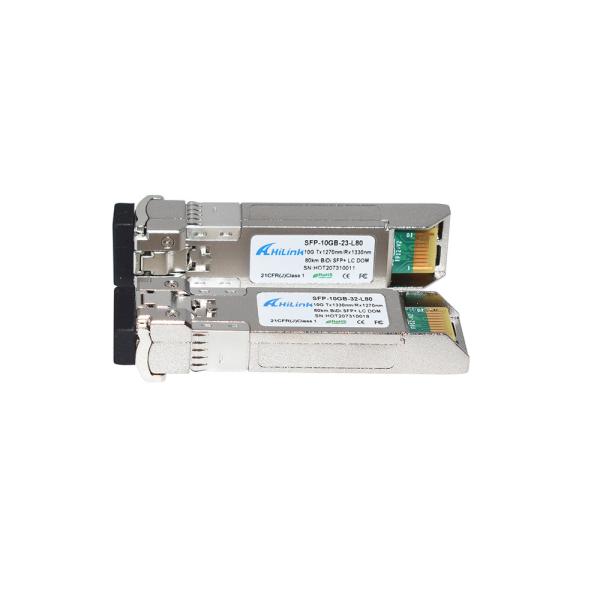

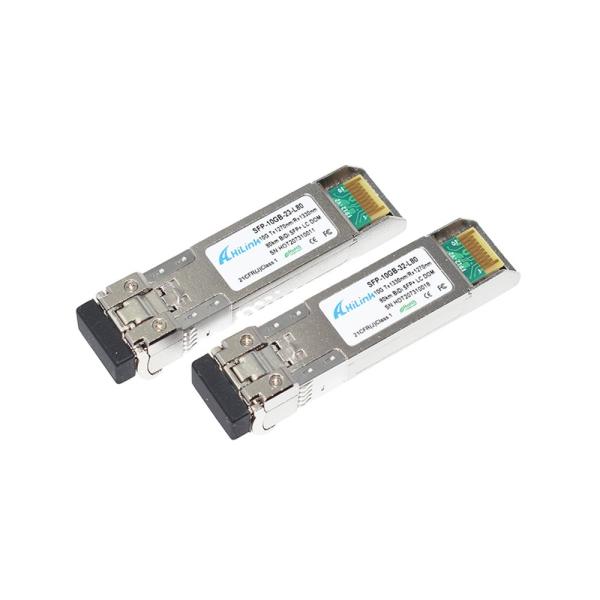

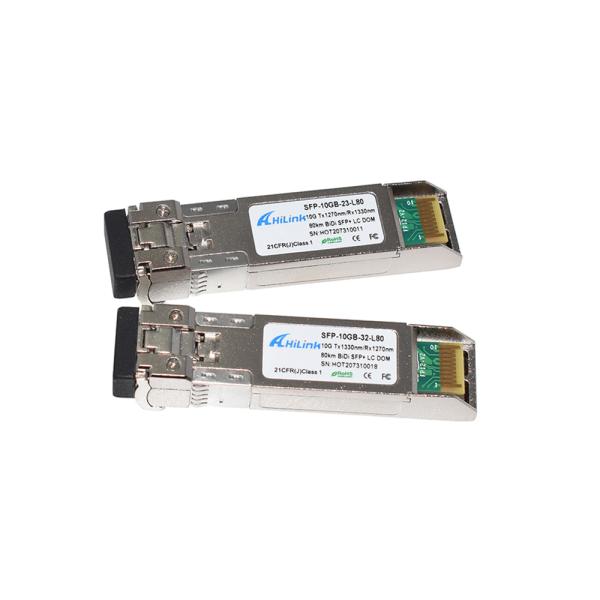

10G 1270nm 1330nm 80km Single LC Optic fiber Module
10G 1270nm 1330nm 80km Single LC Optic fiber Module
10G 1270nm 1330nm 80km Single LC Optic fiber Module
10G 1270nm 1330nm 80km Single LC Optic fiber Module
10G 1270nm 1330nm 80km Single LC Optic fiber Module
10G 1270nm 1330nm 80km Single LC Optic fiber Module
10G 1270nm 1330nm 80km Single LC Optic fiber Module
10G 1270nm 1330nm 80km Single LC Optic fiber Module
10G 1270nm 1330nm 80km Single LC Optic fiber Module
10G 1270nm 1330nm 80km Single LC Optic fiber Module
Specifications
Brand Name :
Unique-Tel
Model Number :
SFP
Certification :
CE, RoHS
Place of Origin :
Hubei, China
MOQ :
10 Pieces
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
10000 Pieces/Month
Delivery Time :
within 10 days of payment
Packaging Details :
carton & PVC packaging
Data Rate :
10G
Wavelength :
1270/1330 nm
Distance :
80KM
Connector :
Single LC
DOM/DDM :
YES
CE RoHS :
Compliant
Min. Optical Budget :
23dB
Product name :
10G SFP+ Tx1270/Rx1330nm 80km
Description

Sfp+ 10g 1270/1330nm Wdm Bidi 80km Lc Dom Tuv Ce Fda Rosh Certification Optic Module

Overview

Type Fiber Optic Transceivers
No. of Fiber 1.
Use FTTX
Product name 10G SFP+ Tx1270/Rx1330nm 80km
Wavelength 1270/1330 nm
Data Rate 10G
Distance 80KM
Connector Single LC
Minimum Optical Budget 23dB
DOM/DDM YES
CE RoHS Compliant
Warranty 3 years

10G SFP+ BiDi
Part Number Data Rate Wavelenth Distance Temp. Source
HLSB231XL-CD10 10G 1270/1330nm 10km 0~70 DFB+PIN
HLSB231XL-CD20 10G 1270/1330nm 20km 0~70 DFB+PIN
HLSB231XL-CD40 10G 1270/1330nm 40km 0~70 DFB+PIN
HLSB231XL-CD60 10G 1270/1330nm 60km 0~70 DFB+APD
HLSB231XL-CD80 10G 1490/1550nm 80km 0~70 EML+ADP

SFP-10G-BX80 Bi-directional 10Gb/s (SFP+) transceivers are compliant with the current SFP+ Multi-Source Agreement (MSA) Specification. They comply with 10GBASE-LR/LW Ethernet, SONET OC-192 / SDH and 10G Fibre Channel 1200-SM-LL-L. Digital diagnostics functions are available via a 2-wire serial interface, as specified in the SFP+ MSA.

Features

• Supports 9.95Gb/s to 11.3Gb/s bit rates

• Hot-pluggable SFP+ footprint

• Single LC for Bi-directional Transmission

• Maximum link length of 80km

• Built-in 1270/1330 WDM Filter

• Uncooled 1270nm or 1330nm CWDM DFB Laser

• Power dissipation <1.5W

• No Reference Clock required

• Built-in digital diagnostic functions, including optical power monitoring

• Temperature range 0°C to 70°C

• Very low EMI and excellent ESD protection

• RoHS Compliant Part

Applications

• 10GBASE-LR/LW Ethernet

• SONET OC-192 / SDH

• 10G Fiber Channe


10G 1270nm 1330nm 80km Single LC Optic fiber Module
