Huawei ETP48400-C4A1 400A 24KW 5G Network Equipment
Huawei ETP48400-C4A1 400A 24KW 5G Network Equipment
Huawei ETP48400-C4A1 400A 24KW 5G Network Equipment
Huawei ETP48400-C4A1 400A 24KW 5G Network Equipment
Specifications
Brand Name :
HUAWEI
Model Number :
ETP48400-C4A1
Certification :
CE, RoHS
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000 sets/month
Delivery Time :
within 10 days of payment
Packaging Details :
carton box
Max. capacity :
24kW
Output system :
three 1-pole
AC input :
220/380 V AC
Output :
–48 V and –57 V
AC output :
16 A circuit breakers
Input system :
three-phase four-wire
Description

Huawei ETP48400-C4A1 AC to DC embedded power system 400A 24KW for 5G sites

Introduction

The ETP48400-C4A1 is an embedded power system that converts AC power into DC power. It outputs –48 V and –57 V constant voltages for equipment. Its maximum capacity is 24 kW. The applicable scenarios include 5G sites and capacity expansion and reconstruction of existing sites. It can disconnect each secondary load separately and supports precise metering of the power consumption of each user.

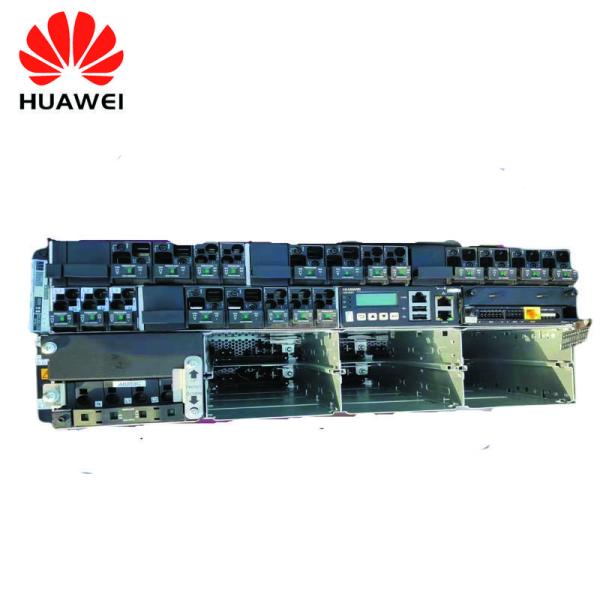

Figure 2-1 ETP48400-C4A1 (01074762/01075024)

Huawei ETP48400-C4A1 400A 24KW 5G Network Equipment

(1) User 1: LLVD power distribution (2) Power distribution label (3) AC output circuit breakers
(4) Ground screw (5) Standby AC input module (6) AC input module
(7) User 3: LLVD power distribution (8) User 3: BLVD power distribution (9) Common load circuit breaker
(10) SMU02C (11) Space for rectifiers/Space for installing the SSU (12) UIM05B1
(13) Reserved slot for communications expansion module CIM02C/NIM01C3 (14) Battery circuit breakers (15) User 2: BLVD power distribution
(16) User 2: LLVD power distribution (17) User 1: BLVD power distribution

Figure 2-2 ETP48400-C4A1 (01075024-002)

Huawei ETP48400-C4A1 400A 24KW 5G Network Equipment

(1) User wiring screws (2) AC output circuit breakers (3) Ground screw
(4) Standby AC input module (5) AC input module (6) User 3: LLVD power distribution
(7) User 3: BLVD power distribution (8) Common load circuit breaker (9) SMU02C
(10) Space for rectifiers/Space for installing the SSU (11) UIM05B1 (12) Reserved slot for communications expansion module CIM02C/NIM01C3
(13) Power distribution label (14) Battery circuit breakers (15) User 2: BLVD power distribution
(16) User 2: LLVD power distribution (17) User 1: BLVD power distribution (18) User 1: LLVD power distribution

Figure 2-3 ETP48400-C4A1 (01074762-004/01075024-003)

Huawei ETP48400-C4A1 400A 24KW 5G Network Equipment

(1) User 1: LLVD power distribution (2) Power distribution label (3) AC output circuit breakers
(4) Ground screw (5) Standby AC input module (6) AC input module
(7) User 3: LLVD power distribution (8) User 3: BLVD power distribution (9) Common load circuit breaker
(10) SMU02C (11) Space for rectifiers/Space for installing the SSU (12) UIM05B1
(13) Reserved slot for communications expansion module CIM02C/NIM01C3 (14) Battery circuit breakers (15) User 2: BLVD power distribution
(16) User 2: LLVD power distribution (17) User 1: BLVD power distribution

Specifications

Project ETP48400-C4A1 (01074762/01075024) ETP48400-C4A1 (01075024-002) ETP48400-C4A1 (01074762-004/01075024-003)
AC input system 220/380 V AC three-phase four-wire
AC power distribution AC input: one 4-pole 63 A circuit breaker, one 4-pole 63 A circuit breaker (backup, manual switch, mechanical interlock)
AC output: three 1-pole 16 A circuit breakers
DC power distribution Three users in total, each of which includes:
LLVD: two 1-pole 125 A circuit breakers; one 1-pole 125 A circuit breaker can be added.
BLVD: two 1-pole 63 A circuit breakers
Common load circuit breaker:
one 1-pole 32 A circuit breaker
Battery: four 1-pole 125 A circuit breakers; one 1-pole 125 A circuit breaker can be added.		 Three users in total, each of which includes:
LLVD: two 1-pole 100 A circuit breakers; one 1-pole 40 A circuit breaker
BLVD: two 1-pole 40 A circuit breakers
Common load circuit breaker:
one 1-pole 32 A circuit breaker
Battery: four 1-pole 125 A circuit breakers; one 1-pole 125 A circuit breaker can be added.		 Three users in total, each of which includes:
LLVD: two 1-pole 100 A circuit breakers; one 1-pole 40 A circuit breaker
BLVD: two 1-pole 40 A circuit breakers
Common load circuit breaker:one 1-pole 32 A circuit
