GSM WiFi RFID 2G 3G 4G LTE Antennas 698MHz To 2700MHz Outdoor Omni Antenna
GSM WiFi RFID 2G 3G 4G LTE Antennas 698MHz To 2700MHz Outdoor Omni Antenna
Specifications
Brand Name :
XJS
Model Number :
TQO-0627-5
Certification :
ROHS CE
Place of Origin :
Guangdong, China
MOQ :
20
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Freq.: :
698-2700MHz
Gain: :
5dBi
VSWR :
≤ 1.7
Polarization :
Vertical
H Beamwidth :
360°
V Beamwidth :
80° /35°
Connector Type :
N-K or Customized
Dimensions :
Φ60*220mm
Input Impedance :
50 Ω
Maximum Power :
50 W
Weight :
0.6 kg
Description

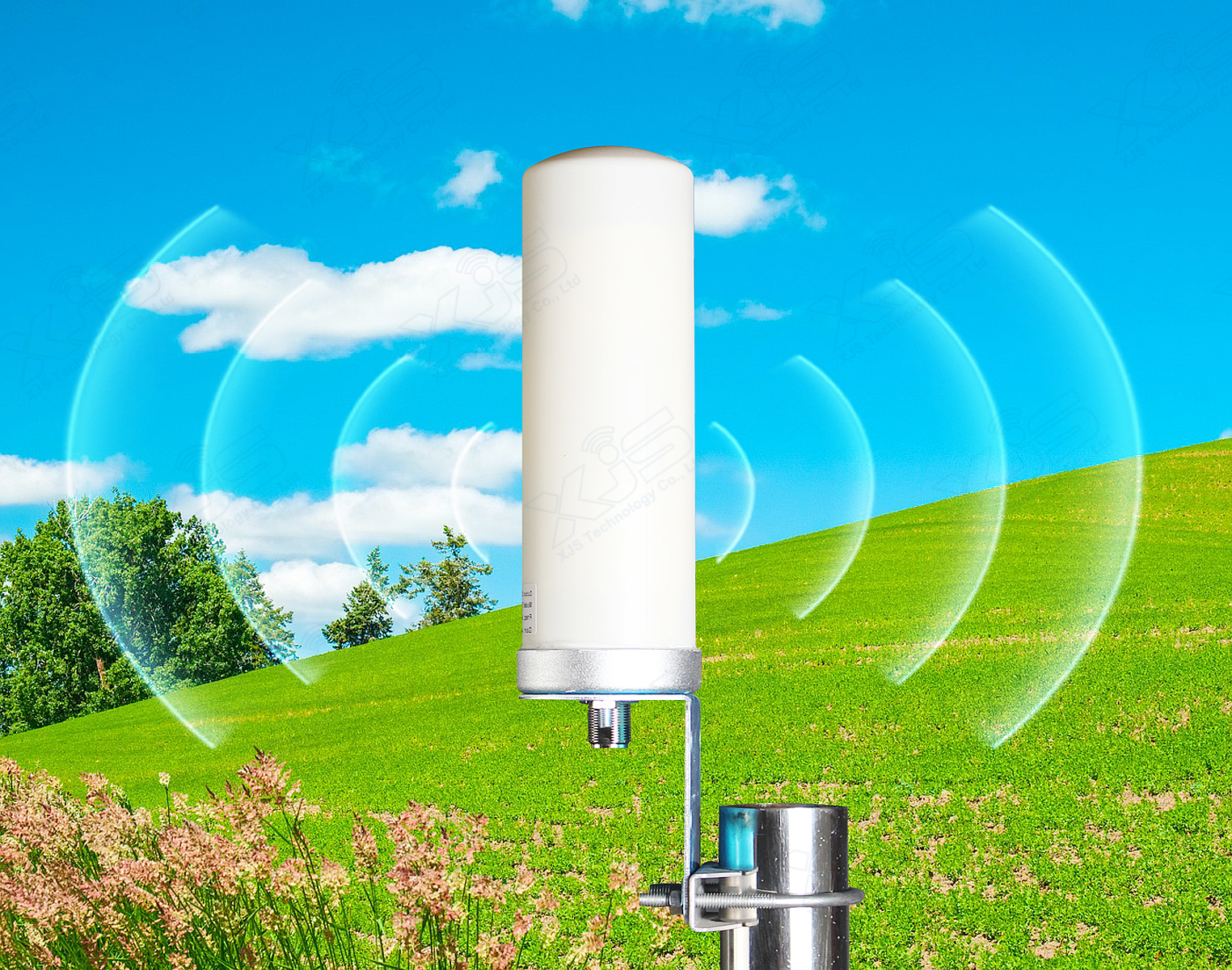

2G 3G 4G LTE GSM WiFi RFID 698-2700MHz Outdoor omni Antenna

It is a professional grade omni-directional antenna specifically designed for DAS (Distributed Antenna Systems). It is ideal for LPWAN/IoT/M2M applications inclluding LoRA, LTE-M, and NB-IoT. This outdoor all weather antenna helps wireless carriers to quickly increase capacity as well as deploy new spectrum in zoning challenged locations.

Applications:

  • Integral N-Female connector
  • All weather operation
  • Frequency coverage for 700 MHz, 850 MHz, AWS and PCS bands
  • Cellular networks
  • DAS (Distributed Antenna Systems)
  • Public safety
  • 802.11 applications
  • LPWAN, LoRA, LTE-M, NB-IoT, IoT, M2M applications

Electrical Specifications

Frequency Range 698-960 1700-2700
Gain (dBi) 4 dBi 5 dBi
Horizontal Beamwidth 360°
Vertical Beamwidth 80°/35°
VSWR <1.7
Polarization Vertical
Impedance 50Ω

Mechanical Specifications

Connector N type or Customized
Dimensions Φ60*220mm
Weight (Kg) 0.4 kg
Lightning Protection Dc Ground
