Specifications
application :
Beverage
packaging type :
Bottles
packaging material :
Glass
automatic grade :
Automatic
driven type :
Electric
Voltage :
Customized
Place of Origin :
Jiangsu, China
Brand Name :
HENGYU
dimension(l*w*h) :
4850*3800*2750 customized
warranty :
2 years
key selling points :
High Productivity
filling material :
Soft drink
filling accuracy :
0.1%
machinery test report :
Provided
video outgoing-inspection :
Provided
core components :
motor, Pressure vessel, Pump, PLC, Gear, Bearing, Gearbox, Engine
Weight (KG) :
1500
Function :
Washing Filling Capping
Bottle type :
Glass bottle
Material :
SUS304/316
Control :
PLC+HMI
Electrical equipments :
International brands
Processing Types :
Isobaric Pressure Filling
Feature :
No foaming
Filling range :
200-1500ml
Liquid feeding :
Membrane valve
Key words :
carbonated water filling machine
Description
High Speed Carbonated Drinks Making Machine Soft Drinks Co2 Beverage Mixer for Filling Production Line
High Speed Carbonated Drinks Making Machine Soft Drinks Co2 Beverage Mixer for Filling Production Line
\uD83D\uDC46 Click Above Jump to GET SOLUTION! \uD83D\uDC46

2000+ Successful Case


2,000+ top filling production lines during past 18 years.

Original Manufacture


100% guaranteed satisfaction and No Overpay Again!

Money & Cost Saving


1- 1 Vip Custom Solution to support your business.
Product Description
High Speed Carbonated Drinks Making Machine Soft Drinks Co2 Beverage Mixer for Filling Production Line

DCGF40-40-12BH
glass bottle filling machines

Product Capacity:12000BPH@500ml
Glass Bottle/Crown Cap

- Product Features -

1. The whole machine adopts the design of stuck bottleneck suspension operation mode so that the bottle is stable and reliable under high-speed operation, and at the same time, the number of changed parts is greatly reduced, making it more convenient and fast when changing the bottle type.

2. A new generation of stainless steel flip bottle clamp is adopted so that the clamp does not contact the upper part of the thread of the bottle mouth, and a spray head is provided so that the inner wall of the bottle can be rinsed fully without dead corners.

3. Adopting advanced pressure filling process, the filling is fast, stable, and accurate.

4. Adopt advanced capping structure for crown cap without any surface damage of the cap.

5. The whole machine adopts man-machine interface touch screen buttons, PLC computer control, and is equipped with a cover missing and overload protection alarm device, which can find and eliminate faults in time and have a high degree of production automation.

6. The parts in contact with water are made of high-quality stainless steel, and the main electrical components are all products of well-known international manufacturers.

-Technical Parameters-

Model (BCGF)
14/12/5
18/18/6
24/24/6
32/32/8
40/40/12
50/50/12
60/60/15
Washing heads
14
18
24
32
40
50
60
Filling heads
12
18
24
32
40
50
60
Capping heads
5
6
6
8
12
12
15
Capacity (BPH)
2000
3500
5000
8000
12000
16000
20000
Power(kw)
2.2
3.5
4.5
6
7.5
9.5
11.2
Dimension (mm)
2400*1600
*2500
2600*1920
*2550
3100*2300
*2800
3800*2500
*2900
4600*2800
*2900
5450*3300
*2900
6500*4500
*2900
Weight(kg)
2500
3500
4500
5600
8500
9800
12800
-Detailed Images-
High Speed Carbonated Drinks Making Machine Soft Drinks Co2 Beverage Mixer for Filling Production Line
High Speed Carbonated Drinks Making Machine Soft Drinks Co2 Beverage Mixer for Filling Production Line
High Speed Carbonated Drinks Making Machine Soft Drinks Co2 Beverage Mixer for Filling Production Line
Washing Part
1)Into bottle way is flat conveyor cooperated with bottle feeding screw.

2)All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean .

3)304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing

4)304/316 stainless steel washing pump make the machine more durable .
High Speed Carbonated Drinks Making Machine Soft Drinks Co2 Beverage Mixer for Filling Production Line

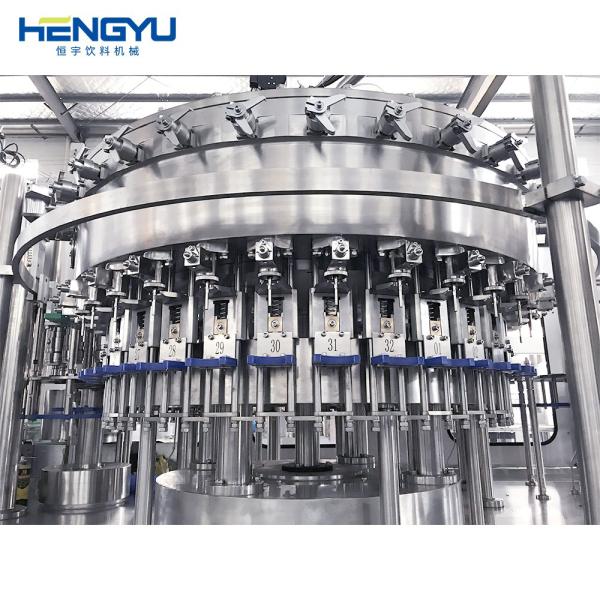

Filling Part
1)304/316 Stainless steel high precision filling nozzle

2) Filling volume adjustable in fine rank, same liquid level after filling

3)All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean

4) 304/316 stainless steel filling pump

5)Efficient spray nozzle rinse thoroughly and save water for flushing

6)Air lifting mechanism makes the running more stable and smooth.
High Speed Carbonated Drinks Making Machine Soft Drinks Co2 Beverage Mixer for Filling Production Line
Capping Part
1) Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping

2)All 304/316 stainless steel construction

3)No bottle no capping

4)Automatic stop when lack of bottle

5)Capping effect is stable and reliable ,Defective rate ≤0.2% .
Auxiliary
High Speed Carbonated Drinks Making Machine Soft Drinks Co2 Beverage Mixer for Filling Production Line
Water Treatment System
1 Raw water tank + Raw water pump
2 Silica sand filter + Active carbon filter + Sodium ion exchanger + Precision filter + Security filter
3 Reverse Osmosis (one level)
4 UV sterilizer
5 Finished water tank + Pure water pump
Pretreatment System
This project is to design for the carbonated drinks preparation to meet the client’s technics, which includes hot water section,sugar melting section, syrup storage section, sterilizing section, carbon mixing section. This design is popular in the modern beverage field worldwide, with the advantages of high efficiency, energy saving, continuous working, etc.
High Speed Carbonated Drinks Making Machine Soft Drinks Co2 Beverage Mixer for Filling Production Line
High Speed Carbonated Drinks Making Machine Soft Drinks Co2 Beverage Mixer for Filling Production Line
CO2 Mixer
Mixer is designed and made for improving the proportion of water, syrup and carbonated dioxide. It adopts foreign advanced technology-static mixer to lighten water layer, increase carbonizing time, ensure mixing efficiency. Adopt carbon dioxide back
flow deoxygenation, which can save carbon dioxide and deoxidize. High quality water pump and SEIMENS electrical equipment and other parts make up a complete automatic control system.
Bottle Depalletizer
Automatic depalletizer is to unload the palletizing aluminum cans and glass bottles from the palletizing plate with each layer as the unit, and automatically transfer them to other equipment of the filling production line. It is an essential part of a high-speed production line to improve the efficiency and save labor cost.
High Speed Carbonated Drinks Making Machine Soft Drinks Co2 Beverage Mixer for Filling Production Line
High Speed Carbonated Drinks Making Machine Soft Drinks Co2 Beverage Mixer for Filling Production Line
Spray Cooling/Warming Tunnel
This machine can reduce the temperature of hot filling drinks to 36 -40 ℃,or increase the temperature of cold filling carbonated drinks to 25-30℃. It is used widely in carbonated drinks,hot tea drinks,juice drinks and production line. After designed.The specially designed tunnel can also have the function of heat preservation and sterilization
Sleeve Labeling Machine
This machine adopts international advanced technology; cover the circle label on the pet bottle. And then hot shrinking to fix on
the position which bottle body designated. This machine's structure is compact, and suitable for the production line of different
direction and different height.
High Speed Carbonated Drinks Making Machine Soft Drinks Co2 Beverage Mixer for Filling Production Line
High Speed Carbonated Drinks Making Machine Soft Drinks Co2 Beverage Mixer for Filling Production Line
Shrink Film Packing Machine
The machine is suitable for wrapping of such products as pop top, mineral water , bottles. beer, drinks etc. It consists of seven actuating motor, through cooperation with 7 actuating motor to form the product packed with plastic film and several bottles as a group out from the hot shrinking packing machine.
Vision Hengyu
High Speed Carbonated Drinks Making Machine Soft Drinks Co2 Beverage Mixer for Filling Production Line
High Speed Carbonated Drinks Making Machine Soft Drinks Co2 Beverage Mixer for Filling Production Line
High Speed Carbonated Drinks Making Machine Soft Drinks Co2 Beverage Mixer for Filling Production Line
High Speed Carbonated Drinks Making Machine Soft Drinks Co2 Beverage Mixer for Filling Production Line
High Speed Carbonated Drinks Making Machine Soft Drinks Co2 Beverage Mixer for Filling Production Line
Service
High Speed Carbonated Drinks Making Machine Soft Drinks Co2 Beverage Mixer for Filling Production Line

1. Installation & debugging
After equipments reached the workshop of customer, place the equipments according to plane layout we offered. We will arrange seasoned technician for equipments installation, debugging and testing production at the same time to make the equipments reach the rated producing capacity of the line.

2. Training
Our company offers technology training to customer. The content of training is structure and maintenance of equipments, control and operation of equipments. Training is in the workshop of customer. Seasoned technician will guide and establish training outline.After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.

3. Quality guarantee
We promise that our goods are all new and not used. They’re made of suitable material, adopts new design. The quality,specification and function all meet the demand of contract.

4. After sales
After checking, we offer 12 months as quality guarantee, free offer wearing parts and offer other parts at the lowest price. After quality guarantee, we offer technology support and after sales service. If you could not solve the problems, we will guide you by phone; if the problems are still can not solve, we will arrange technician to your factory solving the problems.
Packing and delivery
High Speed Carbonated Drinks Making Machine Soft Drinks Co2 Beverage Mixer for Filling Production Line
FAQ
Q1: Are you a trading company or a manufacturer?
A1: We are the direct manufacturer. This allows us to offer factory-direct pricing while maintaining excellent quality standards.Our experienced Engineering Team has over 25 years of expertise. We welcome you to arrange a factory tour!
Q2: How can I be assured of your machine's quality?
A2: For your confidence, we provide a video demonstration of your specific machine undergoing full operational testing prior to shipment. We also encourage you to send us your sample bottles for a trial run on our equipment.
Q3: What warranty and support do you provide with your machines?
A3: We stand behind the quality of our machines with a comprehensive 12-month warranty. Beyond this, we are committed to providing lifelong technical support to ensure your long-term operational success.
Q4: What is the lead time after payment?
A4: The delivery timeframe depends on the specific machine model and configuration you have finalized. We will provide a confirmed schedule upon order confirmation.
Q5: How will the machine be installed upon arrival?
A5: To ensure seamless setup and operation, we will dispatch our qualified engineers to your factory. They will handle the complete installation and provide comprehensive training for your staff on machine operation.
Q6: What about spare parts availability?
A6: Following the finalization of your order, we will furnish you with a detailed spare parts list for your reference and future needs. Essential parts are readily available to minimize downtime.
