Specifications
machinery capacity :
2000BPH
application :
Beverage
packaging type :
CANS
packaging material :
Metal
automatic grade :
Automatic
driven type :
Electric
Voltage :
380V 50Hz
Place of Origin :
Jiangsu, China
Brand Name :
HENGYU
dimension(l*w*h) :
2600*1920*2550mm
warranty :
1 Year
key selling points :
Low ppm
filling material :
Beer
filling accuracy :
96%
machinery test report :
Provided
video outgoing-inspection :
Provided
core components :
motor, PLC, Engine
After-sales Service Provided :
Engineers available to service machinery overseas
Capacity :
2000bph
Name :
beer can filling line
Filling material :
beer or carbonated drinks
Bottle size :
250/330/500/750ml
Air Pressure :
0.7~0.8Mpa
Delivery time :
45 working days
Packing material :
Wood Packing
Warranty :
one year
Bottle type :
Aluminum can
Type :
Filling Machine
Condition :
New
Applicable Industries :
hotels, Food & Beverage Factory, Food & Beverage Shops
Showroom Location :
Canada, France, Viet Nam, Brazil, Indonesia, Kenya, Malaysia
Warranty of core components :
1 Year
Weight :
3500 KG
Description
Product Description

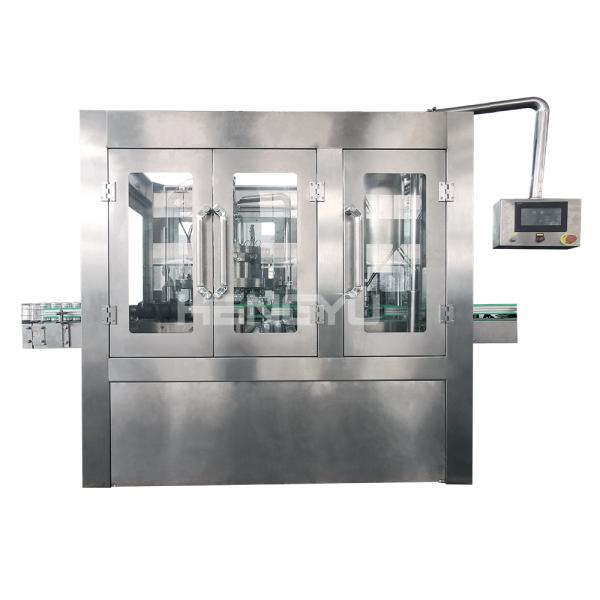

Automatic Rotary Carbonated Drink Can Liquid Filling Machine / Filmatic Filling Machine

YDGF12-1

Product Capacity:3000BPH@330ml
PET Can/Aluminum Can

- Product Features -

1. This equipment is used for filling carbonated beverage in cans , such as beer, cola, energy drinks and soda water.
2. This equipment can be used for different material of cans, such as plastic, iron, aluminum and so on ,and the different size of cans is allowed.We can design the equipment according to your requirements
3. It is applicable for isobaric filler and capper of carbonated drinks in beer and drink industry.
4. It is a pop canned beer in the digestion and absorption of advanced foreign and domestic sealing machine on the basis of independent development of the can filling, sealing unit.
5. Filling and sealing is the overall designed, power system by filling sealing system to Ensure that both the absolute synchronization and coordination.
6. It adopts the advanced machine, electrical equipment, and Pneumatic control technology.
7. It has the characteristics of filling reposefully, high speed, liquid level control, capping reliably, frequency conversion timing, less material loss.
8. It can equip long-distance control system according to the Customers request.
9. It is the preferred equipment for the medium beer and beverage plant.

-Technical Parameters-

Model (YDGF)
12/1
18-4
36-6
Filling heads
12
18
36
Sealing heads
1
4
6
Capacity (BPH)
2000
9000
18000
Power(kw)
2.2
5.0
7.5
Dimension (mm)
2500*1650*1900
2900*1850*1900
3200*2300*1900
Weight(kg)
2500
3500
6500
-Detailed Images-
Automatic Rotary Carbonated Drink Can Liquid Filling Machine / Filmatic Filling Machine

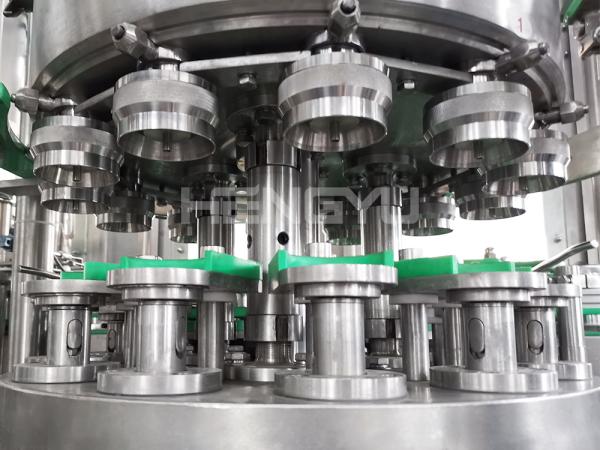

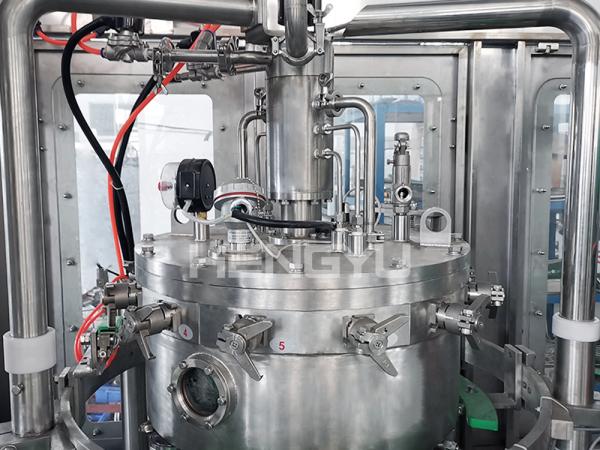

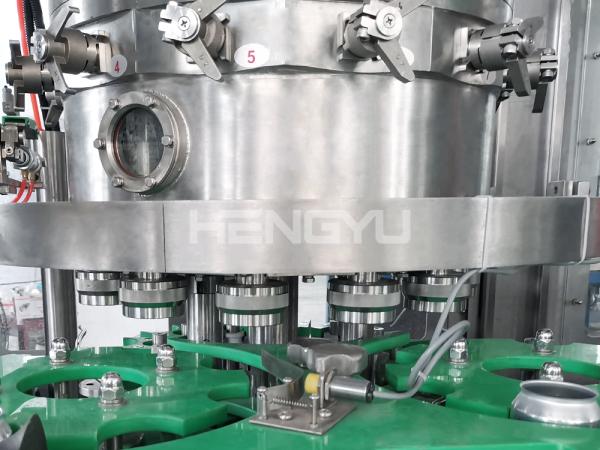

Filling Part
1.It adopts isobaric filling principle and filling valve adopts high precision mechanical valve.
2.It has advantages of fast filling speed, high precision in liquid level and realizing that it only starts to filling when there is a can, otherwise it will stop filling.
3.Using the device structure of filling valve precover device plus supporting can bottom device, it can guarantee the maximum stability of cans when they passing in and out of the filling machine.
4.Filling cylinder braces use worm-gear box going up and down to satisfy cans of different height.
5.Float switches in the filling cylinder ensure a smooth liquid inlet.

Automatic Rotary Carbonated Drink Can Liquid Filling Machine / Filmatic Filling Machine

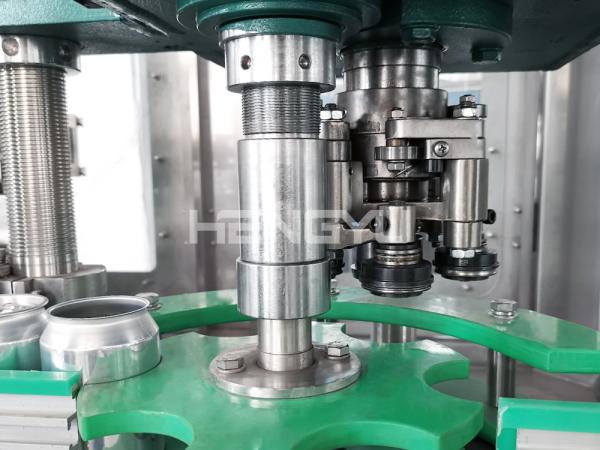

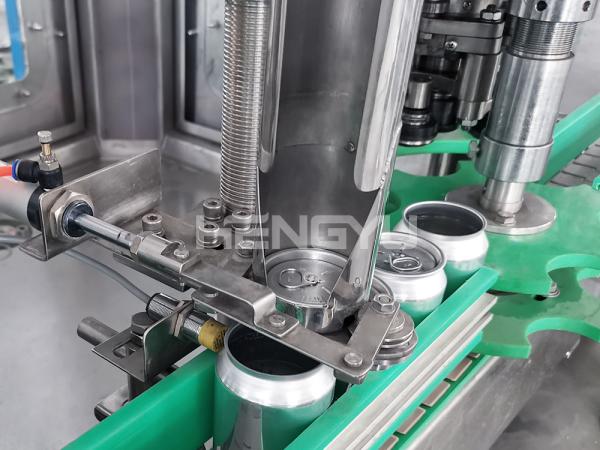

Capping Part
1) Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
2)All 304/316 stainless steel construction
3)No bottle no capping
4)Automatic stop when lack of bottle
5)Capping effect is stable and reliable ,Defective rate ≤0.2% .
Auxiliary
Automatic Rotary Carbonated Drink Can Liquid Filling Machine / Filmatic Filling Machine
Water Treatment System
1 Raw water tank + Raw water pump
2 Silica sand filter + Active carbon filter + Sodium ion exchanger + Precision filter + Security filter
3 Reverse Osmosis (one level)
4 UV sterilizer
5 Finished water tank + Pure water pump
Pretreatment System
This project is to design for the carbonated drinks preparation to meet the client’s technics, which includes hot water section,sugar melting section, syrup storage section, sterilizing section, carbon mixing section. This design is popular in the modern beverage field worldwide, with the advantages of high efficiency, energy saving, continuous working, etc.
Automatic Rotary Carbonated Drink Can Liquid Filling Machine / Filmatic Filling Machine
Automatic Rotary Carbonated Drink Can Liquid Filling Machine / Filmatic Filling Machine
CO2 Mixer
Mixer is designed and made for improving the proportion of water, syrup and carbonated dioxide. It adopts foreign advanced technology-static mixer to lighten water layer, increase carbonizing time, ensure mixing efficiency. Adopt carbon dioxide back
flow deoxygenation, which can save carbon dioxide and deoxidize. High quality water pump and SEIMENS electrical equipment and other parts make up a complete automatic control system.
Can Depalletizer
Automatic depalletizer is to unload the palletizing aluminum cans and glass bottles from the palletizing plate with each layer as the unit, and automatically transfer them to other equipment of the filling production line. It is an essential part of a high-speed production line to improve the efficiency and save labor cost.
Automatic Rotary Carbonated Drink Can Liquid Filling Machine / Filmatic Filling Machine
Automatic Rotary Carbonated Drink Can Liquid Filling Machine / Filmatic Filling Machine

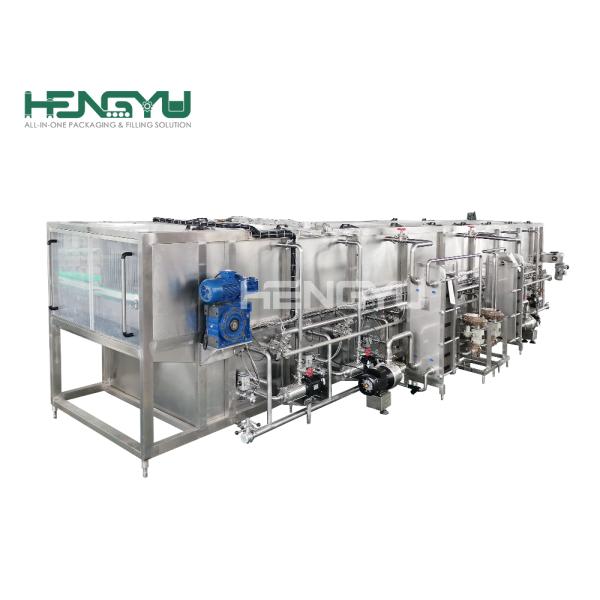

Spray Cooling/Warming Tunnel
This machine can reduce the temperature of hot filling drinks to 36 -40 ℃,or increase the temperature of cold filling carbonated drinks to 25-30℃. It is used widely in carbonated drinks,hot tea drinks,juice drinks and production line. After designed.The specially designed tunnel can also have the function of heat preservation and sterilization
Sleeve Labeling Machine
This machine adopts international advanced technology; cover the circle label on the pet bottle. And then hot shrinking to fix on
the position which bottle body designated. This machine's structure is compact, and suitable for the production line of different
direction and different height.
Automatic Rotary Carbonated Drink Can Liquid Filling Machine / Filmatic Filling Machine
Automatic Rotary Carbonated Drink Can Liquid Filling Machine / Filmatic Filling Machine
Shrink Film Packing Machine
The machine is suitable for wrapping of such products as pop top, mineral water , bottles. beer, drinks etc. It consists of seven actuating motor, through cooperation with 7 actuating motor to form the product packed with plastic film and several bottles as a group out from the hot shrinking packing machine.
