Specifications
Brand Name :
SUBA
Model Number :
60L-1020
Certification :
CE
Place of Origin :
Qingdao,China
MOQ :
1
Payment Terms :
T/T, L/C
Description

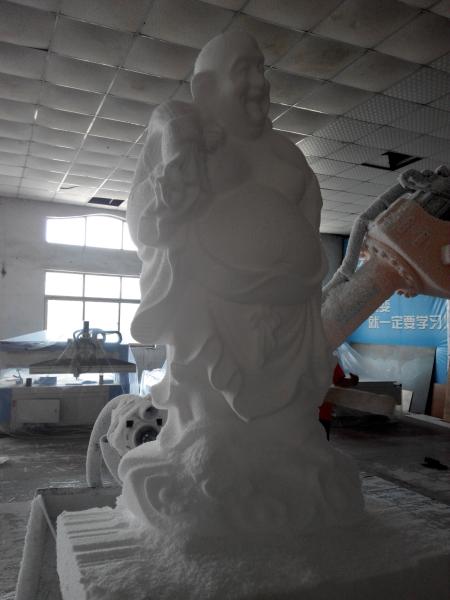

Robot carving crafts

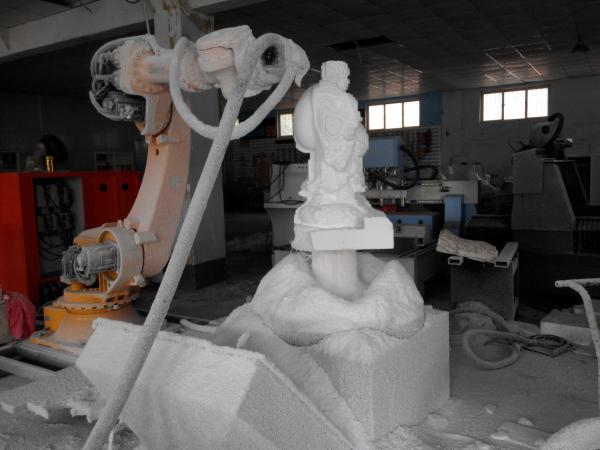

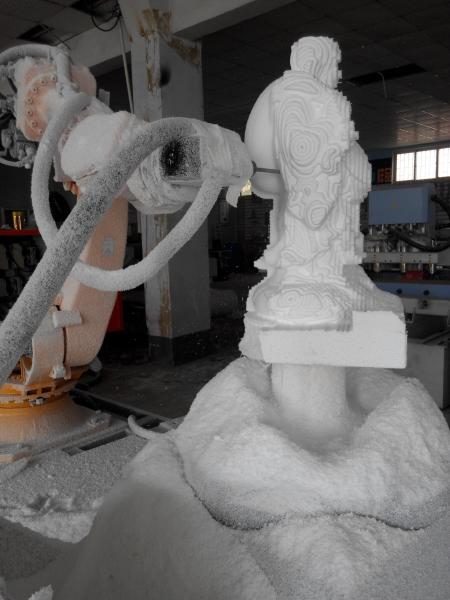

The SUBACNC1020 seven-axis robot engraving machine system is composed of a robot arm controlling an electric spindle (which works at any angle within the machining range of the mechanical arm) and software for controlling the operation of the mechanical arm and the movement of the electric spindle. Under the principle of safety first, it is simple to use and produces high-quality products.
The robot arm has 6 rotational axes. The workpiece is installed on a rotating workbench, which acts as the 7th axis of the robot engraving machine system. The rotating workbench and the mechanical arm are controlled by the system to complete the fine engraving of the three-dimensional art workpiece. In addition, it can realize the linkage with the SUBACNC1026 three-dimensional art wood engraving machine to complete the processing of more complex workpieces. It realizes both high-efficiency and high-precision processing.

It is widely used in medical, sculpture, clothing and architectural professions.

Medical Sculpture Clothing Foam Engraving Machine Robot Carving CraftsMedical Sculpture Clothing Foam Engraving Machine Robot Carving Crafts

Performance Parameters
Model SU-1020
Working area Φ1000mm*H2000mm
Max load (KG) 3000
Rated load (KG) 2000
Reach distance (mm) 2200
Number of axis 7
Reposition ±0.03
Protection class IP65(*67)
Arm weight(KG) 60
Spindle 6KW Italy HSD spindle cooled by water.
Motor/Driver Japan YASKAWA Servo motor and Servo Driver
Inventor 7.5KW imported inventor
Robot controller CS8C
Installation mode Landmark/ hanging/ sticky
Scope of work axis 1 ±180°
Scope of work axis 2 ±127.5°
Scope of work axis 3 ±152.5°
Scope of work axis 4 ±270°
Scope of work axis 5 +132.5°/-122.5°
Scope of work axis 6 ±270°
Max speed of axis 1 435°/s
Max speed of axis 2 385°/s
Max speed of axis 3 500°/s
Max speed of axis 4 995°/s
Max speed of axis 5 1065°/s
Max speed of axis 6 1445°/s
Delivery time 60 working days
Tool Diameter ￠2 ----￠20
Application Mainly used for 3D status.
