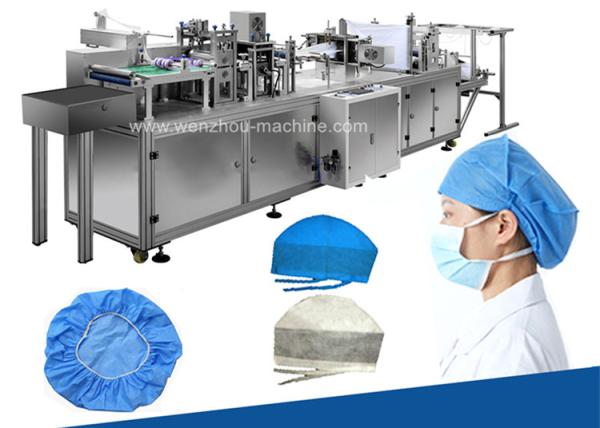

Fully Automatic Non Woven Doctor cap making machine
Fully Automatic Non Woven Doctor cap making machine
Fully Automatic Non Woven Doctor cap making machine
Fully Automatic Non Woven Doctor cap making machine
Fully Automatic Non Woven Doctor cap making machine
Fully Automatic Non Woven Doctor cap making machine
Fully Automatic Non Woven Doctor cap making machine
Fully Automatic Non Woven Doctor cap making machine
Specifications
Brand Name :
RT
Model Number :
DH-GY6
Certification :
CE
Place of Origin :
China
MOQ :
1 unit
Payment Terms :
TT
Delivery Time :
7-15 days
Packaging Details :
Wooden Pallet /wooden case
Material :
both nonwoven & PE
Cap size :
vesatile
Supply Ability :
200 units /month
Machine Frame :
optional: aluminium alloy/painted steel
Aplication :
Hospital, medical, surgial , hotel, Dust-free plant
Product size :
3 sizes on one machine without change mold
Product type :

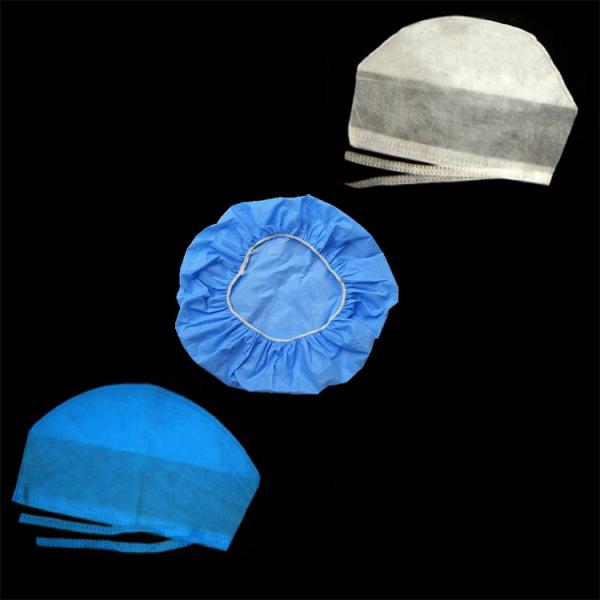

bouffant cap, shower cap,food cover,beard cover, ear cover, micro phone cover
Control system :
Optional : touch screen / button pannel
Packing method :
Optional with automatic packing unit
Elastic type :
double elastic / single elastic
Description


Application
The fully automatic medical cap making machine is made of aluminum alloy frame, which is lighter and firmer. This machine can weld mask earrings. It is a fully automatic production machine from raw material supplying to finished doctor cap output.

Main Features

  • With ultrasonic welding method this machine can make the non-woven fabric folding into a doctor's cap.
  • The man-machine interface operation requires only one person. The inside PLC program control system, make the machine high stability, low failure rate. And the imported deceleration brake motor make it effectively reducing the product's defective rate.
  • Adjustable tension system control ensures the beautiful appearance of the finished product.
  • With the automatic feeding detection system, the machine will automatically stopped when roll material running out, so that the machine will not idling.

Specification

Model DH-GY6
Dimension( mm) 8800×900×1650mmmm (L*W*H)
Speed 90~ 120pcs/min
voltage 220V/380V(can be customized as request)
Total power 11.8kw
weight 1880Kg
Finished product size 3150*1150MM (other size can be customized)

Production Process:

Automatic feeding -import- folding - welding - forming and cutting to output
