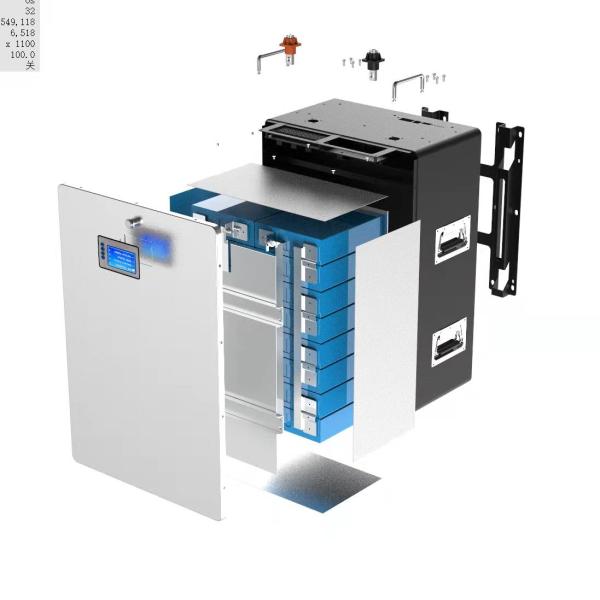

Silk 48V 100Ah Wall Mount LiFePO4 Battery 5KWh Rechargeable Lithium Battery Pack with LED Display for Solar Home ESS
Silk 48V 100Ah Wall Mount LiFePO4 Battery 5KWh Rechargeable Lithium Battery Pack with LED Display for Solar Home ESS
Specifications
Voltage :
48V
Features :
Deep Cycle Battery 12V
Port :
Beijing/Shenzhen/Other
Place of Origin :
Beijing, China
Brand Name :
Silk
Model Number :
SilkLP748-100
Packaging Details :
Carton, Wooden , Customized packing demand also accepts.
Supply Ability :
100000 Unit/Units per Month lifepo4 battery pack 72v 120ah
Price :
$880.00/Units 1-49 Units
Warranty :
3 Years
Capacity :
100AH 150AH 200AH
Color :
Black white or custom
OEM/ODM :
Avaiable
Shell material :
ABS / ABS V0 (optional)
Keywords :
Battery Lithium Lifepo4
Product name :
lifepo4 battery 48v
Application :
Solar storage,telecom ,etc.
Description
Automotive Grade Lithium Battery

Ampere Time lithium iron batteries have exceptiol quality since they are manufactured by Automotive Grade LiFePO4 Cells with higher energy density, more stable performance & greater power. Highest-level safety based on UL Testing Certificate for the cell inside the battery. With no acid in the battery, you're able to safely mount in any position. This makes li-iron batteries perfect for solar home, RV, campers, golf cart, motor homes, off-grid applications.

Wall Mount Lithium Rechargeable Lifepo4 Battery 5KWH 48v 100ah
Item: 51.2V 100AH lifepo4 battery module, Wall mountable, Power wall.
Dimension: 620*370*205mm (Length*Width*Thickness)
Weight: 40KG
Max Charge Current: 100A
Max continuous discharge current: 100A
Max power output: 5.12KWH
Communication port: On demand.
LED Screen: YES
Battery Management System
S/N function name Function setting Cell voltage alarm Settings Value Reference setting range
1 Monomer over-voltage protection Turn on Over-voltage protection voltage 3750mV 3000~6000mV
2 Cell under-voltage protection Turn on Under-voltage protection voltage 2700mV 100~3200mV
3 Battery over-voltage protection Turn on Over-voltage protection voltage 57.6V 40.0V~60.0V
4 Battery under-voltage protection Turn on Under-voltage protection voltage 43.2V 30.0V~60.0V
5 Cell high temperature protection Turn on Cell high temperature protection 65℃ 30℃~90℃
6 Charging low temperature protection Turn on Charging low temperature protection 0℃ -5~5℃
7 Discharge low temperature protection Turn on Discharge low temperature protection -20℃ -40~-10℃
8 Overcurrent protection Turn on Overcurrent protection 105A 0A~110A
ATTENTION:

We can design 12V LiFePO4 with same VRLA case size to replace SLA battery !

Welcome customize shell,weight, size,MBS,technology,etc !

  • Voltage range: 3.2V - 12V – 24V – 48V – 72V – 80V– 96V– 144V – 300V – 720V
  • Capacity range: 7Ah - 100Ah - 200Ah- 300Ah-....1000Ah
Parameter
Item 48V 100AH lifepo4 battery pack (Customizable LCD)
Brand Archibald
Type Lithium Iron Phosphate
Voltage Nominal 48V (Customized 3.2V 12V 24V 36V 48V 72V …720V)
Capacity Nominal 100AH
BMS Specs 50-100A(Customized)
Max Charge Current 50A Or Customized

Max Continuous

Discharge Current

 50A Or Customized
Weight 63kg Or Customized
Dimension 442*410*221mm Or Customized
Operating Temperature Range Charge:0°C to 45°C
Discharge: -20°C to 60℃
Life Cycle More than 2000cycles @1.0C 100% DOD
Package ABS/Metal Case Or Customized
Customized Shell, Size, Weight, Color, Label, Current, Technology,etc can be customized
Performance Curves

Silk 48V 100Ah Wall Mount LiFePO4 Battery 5KWh Rechargeable Lithium Battery Pack with LED Display for Solar Home ESS

Silk 48V 100Ah Wall Mount LiFePO4 Battery 5KWh Rechargeable Lithium Battery Pack with LED Display for Solar Home ESS

Silk 48V 100Ah Wall Mount LiFePO4 Battery 5KWh Rechargeable Lithium Battery Pack with LED Display for Solar Home ESS

Silk 48V 100Ah Wall Mount LiFePO4 Battery 5KWh Rechargeable Lithium Battery Pack with LED Display for Solar Home ESS

Silk 48V 100Ah Wall Mount LiFePO4 Battery 5KWh Rechargeable Lithium Battery Pack with LED Display for Solar Home ESS
