6SE6420-2UD23-0BA1 SIEMENS MICROMASTER 420
6SE6420-2UD23-0BA1 SIEMENS MICROMASTER 420
6SE6420-2UD23-0BA1 SIEMENS MICROMASTER 420
6SE6420-2UD23-0BA1 SIEMENS MICROMASTER 420
Specifications
Brand Name :
SIEMENS
Model Number :
6SE6420-2UD23-0BA1
Place of Origin :
GERMANY
MOQ :
1
Price :
1-99$
Payment Terms :
T/T
Delivery Time :
in stock / 1-3 work days
Supply Ability :
999
Brand :
SIEMENS
Warranty :
1 year
Packaging Details :
Brand New Original
Description

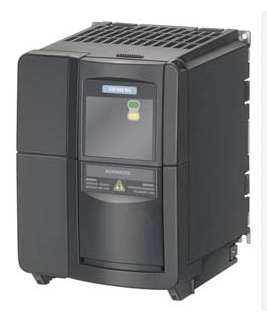

SIEMENS 6SE6420-2UD23-0BA1 MICROMASTER 420 :


MICROMASTER 420 without filter 380-480 V 3 AC +10/-10% 47-63 Hz constant torque 3 kW overload 150% for 60 s square-law torque 3 kW 202x 149x 172 (HxWxD) degree of protection IP20 ambient temperature -10+50 °C without AOP/BOP.


The Siemens 6SE6420-2UD23-0BA0 is a 3.0 kW MicroMaster 420 series frequency inverter designed for three-phase 380-480V AC applications. It offers modular design, IGBT-based technology, and flexible control capabilities, making it suitable for industrial automation tasks such as conveyor systems, fans, pumps, and material handling equipment. The device supports both linear and quadratic V/f control modes, along with programmable multi-point V/f settings, ensuring precise motor control.


Technical Specifications :

Model: 6SE6420-2UD23-0BA1 (MicroMaster 420 Series)

Rated Power: 3.0 kW (constant torque)

Input Voltage: 380-480V AC, three-phase (no built-in filter)

Rated Input Current: 8.6 A

Rated Output Current: 7.7 A

Control Modes: Linear V/f, quadratic V/f, programmable multi-point V/f

Communication Protocols: USS, PROFIBUS, DeviceNet (via optional modules)

Protection Features: Overload, stall, ground fault, short circuit, and overtemperature protection

Dimensions (W x H x D): 149 mm x 202 mm x 172 mm (B-size enclosure, excluding options)

Weight: 3.3 kg

Control Interface: Optional BOP (Basic Operator Panel) or AOP (Advanced Operator Panel) for parameter adjustments

Mounting: Modular design for side-by-side installation



6SE6420-2UD23-0BA1 SIEMENS MICROMASTER 420

6SE6420-2UD23-0BA1 SIEMENS MICROMASTER 420






Packing & Delivery:

1)100% brand New and Original Factory Seal!

2)Warranty: 1 year

3)Package: Original packing with cartons.

4)Delivery time: Shipped in 3-7 days after payment

5) All the goods will be tested before shipment.
