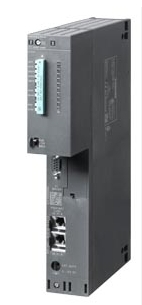

6ES7416-3ES07-0AB0 SIEMENS S7-400, CPU 416-3 PN/DP Central Processing Unit
6ES7416-3ES07-0AB0 SIEMENS S7-400, CPU 416-3 PN/DP Central Processing Unit
6ES7416-3ES07-0AB0 SIEMENS S7-400, CPU 416-3 PN/DP Central Processing Unit
6ES7416-3ES07-0AB0 SIEMENS S7-400, CPU 416-3 PN/DP Central Processing Unit
6ES7416-3ES07-0AB0 SIEMENS S7-400, CPU 416-3 PN/DP Central Processing Unit
6ES7416-3ES07-0AB0 SIEMENS S7-400, CPU 416-3 PN/DP Central Processing Unit
6ES7416-3ES07-0AB0 SIEMENS S7-400, CPU 416-3 PN/DP Central Processing Unit
6ES7416-3ES07-0AB0 SIEMENS S7-400, CPU 416-3 PN/DP Central Processing Unit
6ES7416-3ES07-0AB0 SIEMENS S7-400, CPU 416-3 PN/DP Central Processing Unit
6ES7416-3ES07-0AB0 SIEMENS S7-400, CPU 416-3 PN/DP Central Processing Unit
Specifications
Brand Name :
SIEMENS
Model Number :
6ES7416-3ES07-0AB0
Place of Origin :
GERMANY
MOQ :
1
Price :
1-99$
Payment Terms :
T/T
Delivery Time :
in stock / 1-3 work days
Supply Ability :
999
Brand :
SIEMENS
Warranty :
1 year
Packaging Details :
Brand New Original
Description

SIEMENS 6ES7416-3ES07-0AB0 S7-400, CPU 416-3 PN/DP Central Processing Unit :


SIMATIC S7-400, CPU 416-3 PN/DP Central processing unit with: Work memory 16 MB, (8 MB code, 8 MB data), interfaces 1st interface MPI/DP 12 Mbit/s, (X1), 2nd interface Ethernet/PROFINET (X5) 3rd interface IF 964-DP plug-in (IF1).


Technical Specifications :

Model: 6ES7416-3ES07-0AB0 (SIMATIC S7-400 CPU 416-3 PN/DP)

Processor Type: 32-bit microprocessor

Main Memory: 16 MB (8 MB code, 8 MB data)

Interface:

1 x MPI/DP interface (12 Mbit/s)

2 x PROFINET interfaces (with integrated switch for daisy-chaining)

1 x IF 964-DP interface (pluggable)

Power Supply: 24 V DC (operating range: 20.4–28.8 V DC)

Current Consumption: 720 mA (max at 24 V DC), 11.7 A inrush current at 28.8 V

Data Backup: Integrated supercapacitor for 10 ms power backup

Redundancy: Support for S2 system redundancy

Mounting: Direct integration into S7-400 rack

Dimensions (W x H x D): 90 mm x 100 mm x 81 mm

Weight: 1.108 kg

Operating Temperature: 0°C to +60°C

Storage Temperature: -20°C to +80°C

Humidity: 5–95% RH (non-condensing)

Protection Class: IP30

Approvals: UL, CE, C-Tick, and marine certifications



6ES7416-3ES07-0AB0 SIEMENS S7-400, CPU 416-3 PN/DP Central Processing Unit
