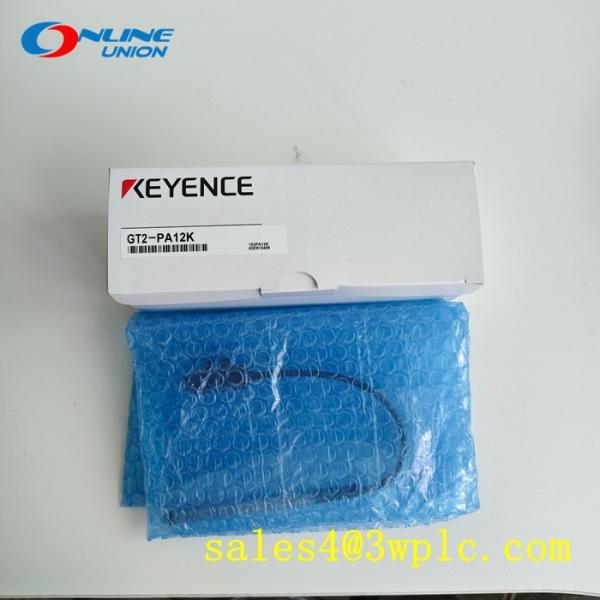

GT2-PA12K KEYENCE Stylus type Air cylinder type High-precision Sensor head
GT2-PA12K KEYENCE Stylus type Air cylinder type High-precision Sensor head
GT2-PA12K KEYENCE Stylus type Air cylinder type High-precision Sensor head
GT2-PA12K KEYENCE Stylus type Air cylinder type High-precision Sensor head
Specifications
Brand Name :
KEYENCE
Model Number :
GT2-PA12K
Place of Origin :
Japan
MOQ :
1
Price :
$99
Payment Terms :
T/T
Supply Ability :
10
Delivery Time :
In stock/1-3days
Description

KEYENCE GT2-PA12K Stylus type Air cylinder type High-precision Sensor head:


The Keyence GT2-PA12K is a high-precision contact digital sensor designed for industrial automation applications requiring precise displacement measurement. It features a compact "pencil-type" design for use in narrow spaces and supports contact-based measurement to ensure data accuracy.



Technical Specifications:

Parameter Specification
Model GT2-PA12K
Brand Keyence
Detection System Scale pulse system II, absolute type (no tracking error)
Measurement Range 12 mm
Resolution 0.1 μm
Accuracy 1 μm (p-p) at 20°C ambient temperature
Measuring Force - Downward installation: 1.2 N
- Lateral installation: 1.15 N
- Upward installation: 1.1 N (at 0.25 MPa)
Sampling Cycle 4 ms
Operating Indicators 2-color LED (red/green)
Enclosure Rating IP67 (IEC standard)
Pressure Resistance 0.5 MPa
Operating Pressure Range 0.24–0.26 MPa
Ambient Temperature 0–55°C (non-freezing)
Relative Humidity 35–85% RH (non-condensing)
Vibration Resistance 10–55 Hz, 1.5 mm double amplitude, 2 hours each in X/Y/Z directions
Shock Resistance 1,000 m/s² (IEC 60068-2-27 standard)
Materials - Body: SUS303
- Indicator lens: PET
- Cable: PUR
- Relay connector: PBT
- Spindle: SUS430 (fluorine-coated)
Contact Parts SUS304, SUS440C
Sensor Head Cable Sold separately (requires relay connector)




GT2-PA12K KEYENCE Stylus type Air cylinder type High-precision Sensor head
