500V AC Allen Bradley 2080-SERIALISOL Isolation Voltage High Stability
500V AC Allen Bradley 2080-SERIALISOL Isolation Voltage High Stability
500V AC Allen Bradley 2080-SERIALISOL Isolation Voltage High Stability
500V AC Allen Bradley 2080-SERIALISOL Isolation Voltage High Stability
Specifications
Brand Name :
AB
Model Number :
2080-SERIALISOL
Place of Origin :
US
MOQ :
1
Price :
$99
Payment Terms :
T/T
Supply Ability :
5000
Delivery Time :
In stock/1-3days
Packaging Details :
New sealed
Applicantions :
Industrial Automation
Brand :
Allen Bradley
Rated voltage :
220V
Protection level :
IP65
Product certification :
CCC, UL
Description

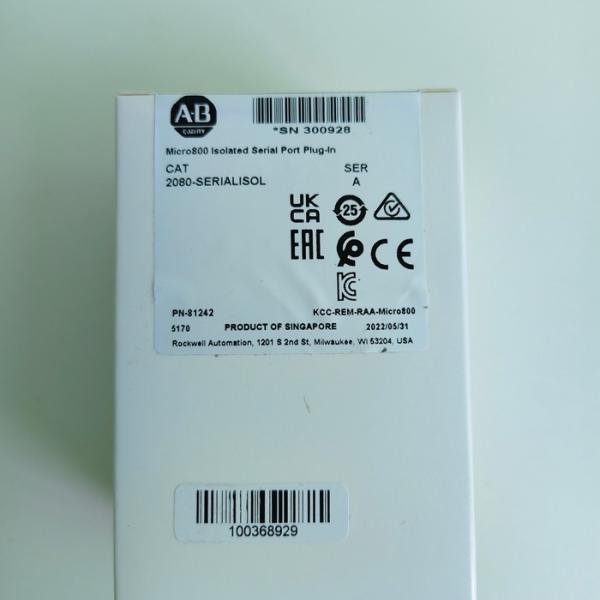

2080-SERIALISOL ALLEN BRADLEY Relay Module

This module has a 500V AC isolation voltage, which can effectively isolate serial communication lines and controllers, prevent damage to equipment or controllers caused by grounding loops, electrical interference, and other issues, improve system stability and reliability. The working temperature range is -20 ℃ to 65 ℃, the storage temperature range is -40 ℃ to 85 ℃, the relative humidity is 5% to 95% (non condensing), and the size is 62mm × 31.5mm × 20mm (height × width × depth). It is compact in size and can be easily inserted into the Micro800 controller's plug-in slot. It is installed through DIN rails, and the installation process is simple and fast, making it easy to debug and maintain on site. At the same time, it has passed C-UL-US certification, CE certification, RCM certification, KC certification, etc., which meets international safety and quality standards and can be widely used worldwide. Used in various regions to meet the regulatory requirements of different countries and regions.
Technical specifcations for 2080-SERIALISOL
Communication port: 1 isolated RS232/RS485 port, which can flexibly choose RS232 or RS485 communication mode
Supports Modbus RTU protocol (in RS232 and RS485 modes), ASCII and CIP serial protocols
Installation method: Insert the Micro800 controller into any available plug-in slot and install it through a DIN rail
The circuit specification module uses 1.5mm ² (16AWG) multi stranded wire and 1mm ² (18AWG) solid wire
The torque parameter installation torque is 0.2N · m, and the terminal screw torque is 0.22-0.25N · m
Electrical isolation provides 500V AC voltage isolation, effectively protecting controllers and other equipment from electrical interference and grounding issues
Working temperature range -20 ℃ to 65 ℃
Storage temperature range -40 ℃ to 85 ℃
Relative humidity 5%~95% (non condensing)
Certified by C-TICK, CE, and cUL us, in compliance with international safety and quality standards
More Products In Stock:
20F1ANC205JN0 25B-D030N114 150-C43NBD 1762-IQ16

Our Services:

1,All our products are new and orginal, and of good quality

2,Our prices are very competitive.

3, We have a large quantity in stock, so we could help the customers to get the components which are dificult to get.

4,All inquiries will be valued and will reply in 24.

Packing & Delivery:

1,100% brand New and Original Factory Seal!

2,Warranty:1 year

3,Package: Original packing with cartons.

4,Delivery time: Shipped in 3-7 days after payment

5,All the goods will be tested before shipment
