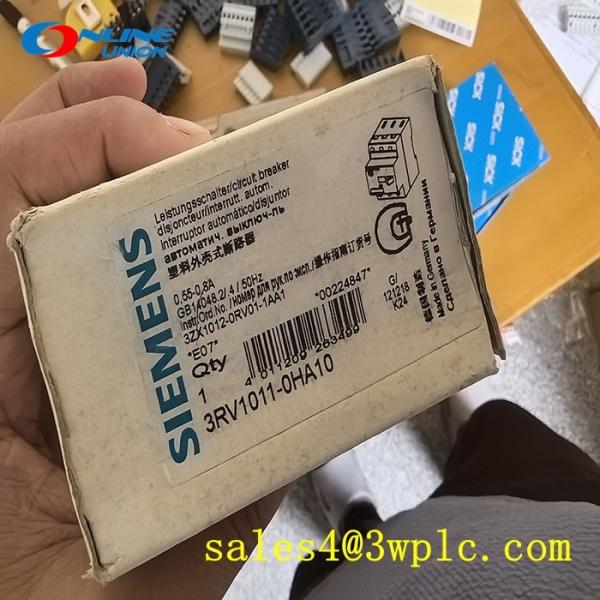

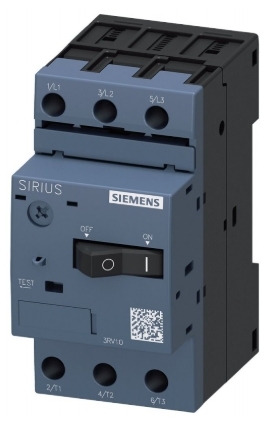

3RV1011-0HA10 SIEMENS Circuit Breaker
3RV1011-0HA10 SIEMENS Circuit Breaker
Specifications
Brand Name :
SIEMENS
Model Number :
3RV1011-0HA10
Place of Origin :
GERMANY
MOQ :
1
Price :
1-99$
Payment Terms :
T/T
Delivery Time :
in stock / 1-3 work days
Supply Ability :
999
Rated Power :
1.5 kW
Cooling :
Internal air cooling
Brand :
SIEMENS
rated :
IP20 protection
Warranty :
1 year
Packaging Details :
Brand New Original
Description

SIEMENS 3RV1011-0HA10 Circuit Breaker :


Circuit breaker size S00 for motor protection, CLASS 10 A-release 0.55...0.8 A N-release 10 A Screw terminal Standard switching capacity

The Siemens 3RV1011-0HA10 is a compact and reliable motor protection circuit breaker that provides comprehensive protection for motors against overloads, short circuits, and phase failures. It is part of Siemens' SIRIUS series of low-voltage control products, known for their high performance and durability. The 3RV1011-0HA10 is suitable for a wide range of industrial applications, including motor control centers, conveyor systems, pumps, fans, and other machinery.


Key Specifications

Parameter Details
Brand & Model Siemens 3RV1011-0HA10
Type Motor protection circuit breaker
Poles Typically 3-pole (3P) configuration
Rated Current (In) 0.55-0.8 A (adjustable setting for motor protection)
Rated Voltage (Ue) 690 V AC (for insulation); 380 V AC (rated operational voltage under AC-3)
Rated Frequency 50/60 Hz
Breaking Capacity (Icu) High short-circuit breaking capacity (specific value depends on standards)
Trip Characteristics Thermal-magnetic trip unit for overload and short-circuit protection
Connection Method Screw-type terminals for secure wiring
Mounting Style Fixed mounting (can be installed on DIN rail or panel)
Protection Functions Overload, short-circuit, and phase-loss protection
Approvals & Standards CE, IEC, VDE, and other relevant international standards
Auxiliary Contacts Optional auxiliary contacts for signaling and control
Application Motor protection, motor control centers, industrial machinery


Features & Benefits

Compact Design: Space-saving design for easy installation in control panels.

Adjustable Trip Settings: Allows precise tuning of protection parameters to match motor requirements.

High Reliability: Long mechanical and electrical life, ensuring minimal maintenance.

Complete Protection: Protects motors against overloads, short circuits, and phase failures.

Easy Installation: Screw-type terminals and modular design simplify wiring and integration.

Safety Compliance: Meets international safety standards, ensuring reliable operation in industrial environments.




3RV1011-0HA10 SIEMENS Circuit Breaker

3RV1011-0HA10 SIEMENS Circuit Breaker
