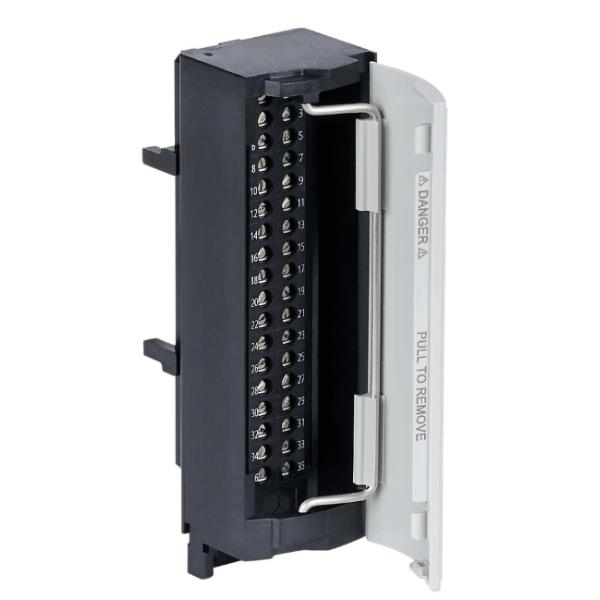

1756-TBCH Allen Bradley ControlLogix 36 Pin Screw Terminal Block
1756-TBCH Allen Bradley ControlLogix 36 Pin Screw Terminal Block
Specifications
Brand Name :
Allen Bradley
Model Number :
1756-TBCH
Place of Origin :
USA
MOQ :
1
Price :
1-99$
Payment Terms :
T/T
Supply Ability :
999
Delivery Time :
in stock / 1-3 work days
Packaging Details :
Brand New Original
Module Type :
Terminal Block
Clamp Type :
Screw-Clamp
Pins :
36-Pin Connection
Screw Torque :
0.5 Nm (4.4 lb/in)
Wire Type :
Solid or Stranded Wire
Max. Wire Insulation :
90 °C (194 °F) or greater, 1.2 mm (3/64 in.)
Applicantions :
Industrial Automation
Brand :
Allen Bradley
Rated voltage :
220V
Protection level :
IP65
Product certification :
CCC, UL
Description

Description

The Allen-Bradley 1756-TBCH is a Removable Terminal Block (RTB) for 1756 I/O modules. It is an I/O module accessory and must be ordered separately. The 1756-TBCH provides flexibility in interconnecting 1756 I/O modules and industrial plant wiring. It plugs into the front of an I/O module.


The 1756-TBCH removable terminal block is a 36-pin cage-clamp with standard housing (wiring arm depth of 2.5 mm. sq.). When terminating signal to the RTB, the required Torque is 0.5 Nm screw torque. It is recommended to use a screwdriver with width of 3.2 mm (1/8 in.) Screwdriver width. It has dimensions of 5.51 x 4.41 x 5.71 in. and weighs 0.3 pounds. For wiring, use solid or stranded copper wire rated at 90 deg. Celsius (194 °. Fahrenheit) or greater with a gauge 1.2 mm (3/64 in.) maximum insulation must be used. In case of a single wire connection, the wire size must be 0.33 - 2.1 mm sq. (22 - 14 AWG), and for a double wire connection, the wire size must be 0.33 - 1.3 mm sq. (22 - 16 AWG). On any single terminal, do not wire more than two conductors.


1756-TBCH Allen Bradley ControlLogix 36 Pin Screw Terminal Block
