Product Introduction

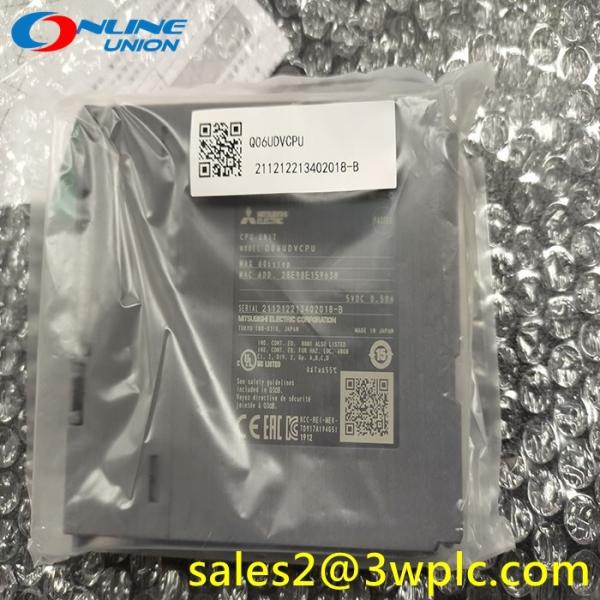

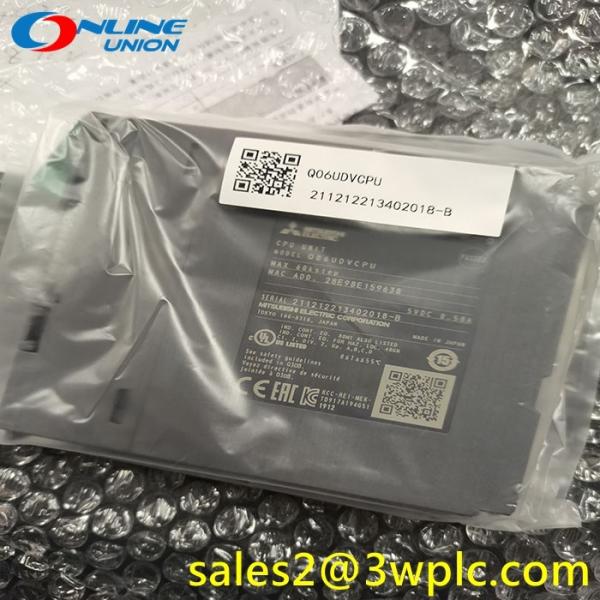

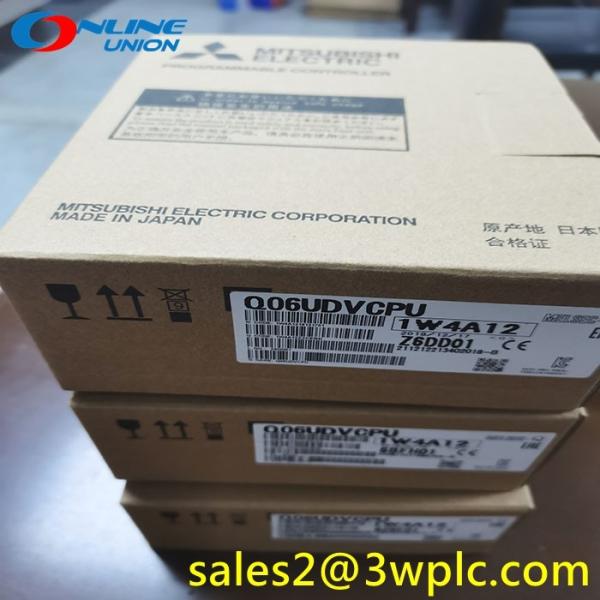

The Q06UDVCPU is a high-performance, general-purpose CPU module from Mitsubishi Electric’s Q series PLC family. Designed for industrial automation, it combines high-speed processing, extensive I/O capabilities, and robust communication features to handle complex control tasks efficiently. Its advanced architecture ensures real-time performance, making it ideal for applications requiring precision, speed, and scalability.

Key Features

1. High-Speed Processing:

   • Basic operation speed of 1.9ns (LD X0) and 3.9ns (MOV D0 D1) ensures rapid response to control commands.

2. Large Program Capacity:

   • 60K-step program capacity and 240K-byte program memory accommodate complex control logic.

3. Extensive I/O Support:

   • 4096 I/O points and 8192 device points provide flexibility for system expansion.

4. Multi-CPU Communication:

   • Enables high-speed data exchange between multiple Q series CPUs for coordinated control.

5. Data Recording & Analysis:

   • Supports CSV-format data recording to SD/SDHC cards for troubleshooting and performance analysis.

6. Compact & Lightweight:

   • Small footprint (98mm x 27.4mm x 115mm) and lightweight design (0.2kg) simplify integration.

Typical Applications

1. Motion Control:

   • High-speed positioning and synchronization in CNC machines, robots, and packaging lines.

2. Process Automation:

   • Real-time monitoring and control of manufacturing processes (e.g., chemical, pharmaceutical).

3. Material Handling:

   • Conveyor systems, sorting machines, and automated warehouses.

4. Test & Measurement:

   • Data acquisition and control in testing equipment and quality inspection systems.

5. Energy Management:

   • Monitoring and optimization of power consumption in factories and buildings.
