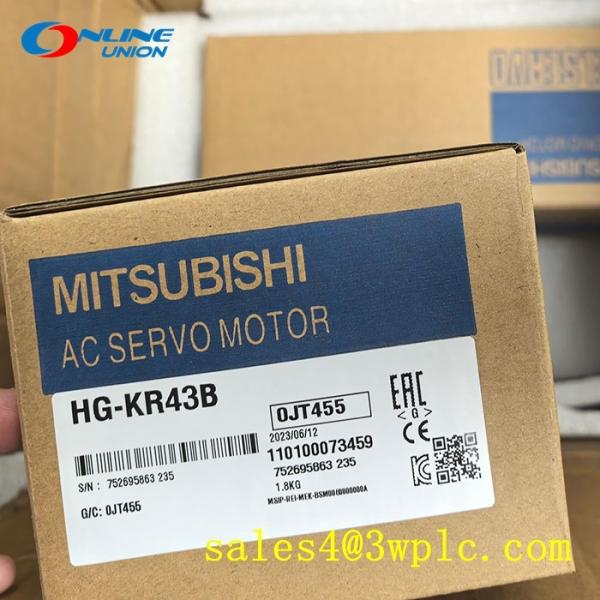

HG-KR43B MITSUBISHI Servomotor HG Series, Power 400 W
HG-KR43B MITSUBISHI Servomotor HG Series, Power 400 W
Specifications
Brand Name :
MITSUBISHI
Model Number :
HG-KR43B
Place of Origin :
Japan
MOQ :
1
Price :
1-99$
Payment Terms :
T/T
Supply Ability :
9999
Delivery Time :
In stock/1-3days
Packaging Details :
Brand New Original
Series :
MELSERVO-J4
Type :
HG-KR
Power Supply (V) :
200
Rated Capacity (kW) :
0,4
Inertia :
LOW INERTIA
Rated Torque (Nm) :
1,3
Maximum Torque (Nm) :
4,5
Rated Speed (rpm) :
3.000
Inertia (kg*cm2) :
0,393
Brake :
YES
Shaft Type :
STRAIGHT SHAFT
Current Type :
AC
Encoder Resolution (p/rev) :
4.194.304
Maximum Speed (rpm) :
6.000
Protection Class :
IP65
Encoder Type :
22-BIT
Description

MITSUBISHI HG-KR43B Servomotor HG Series, Power 400 W


Servomotor HG Series, Power 400 W; Torque 1.3 Nm, Max. Torque 4.5 Nm, Brake.


The MITSUBISHI HG-KR43B is a low-inertia, small-capacity AC servo motor from the MR-J4 series, designed for high-precision industrial automation applications. It features a compact design, IP65 protection rating, and advanced control functions, making it suitable for scenarios requiring rapid acceleration/deceleration and precise positioning, such as insertion machines, label printers, and small robots.



Technical Specifications

Electrical Ratings

Rated Power: 400 W (continuous output)

Rated Voltage: AC 200 V (compatible with AC 110/220 V or DC 24/12 V input)

Rated Current: 2.6 A (Maximum Current: 9.1 A)

Rated Torque: 1.3 N·m (Maximum Torque: 4.5 N·m, Instantaneous Allowable Speed: 6,900 r/min)

Speed Range: Rated Speed 3,000 r/min, Maximum Speed 6,000 r/min

Encoder Resolution: 22-bit absolute/incremental hybrid encoder (4,194,304 pulses/rev)


Mechanical Specifications

Protection Class: IP65 (Totally enclosed fan-cooled, resistant to oil mist/dust)

Moment of Inertia: 0.371 × 10⁻⁴ kg·m² (Low-inertia design for high-frequency start/stop)

Recommended Load Inertia Ratio: ≤25 times (consult for higher ratios)

Shaft Load Capacity: Radial 245 N, Thrust 98 N

Weight: 1.4 kg (standard), 1.8 kg (with electromagnetic brake)



HG-KR43B MITSUBISHI Servomotor HG Series, Power 400 W
