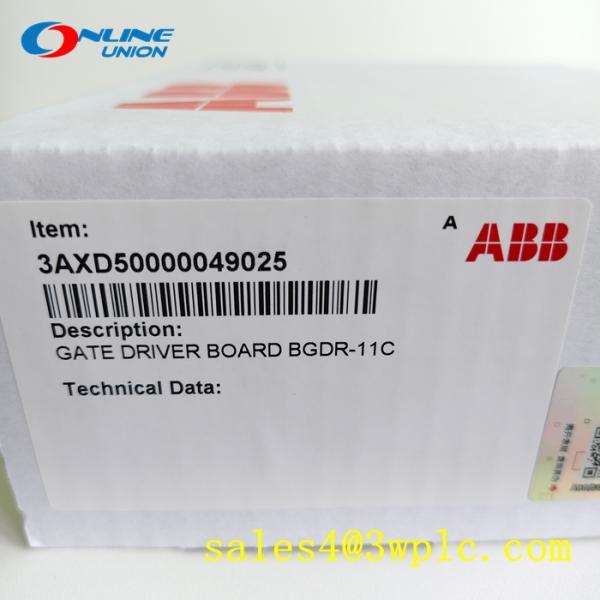

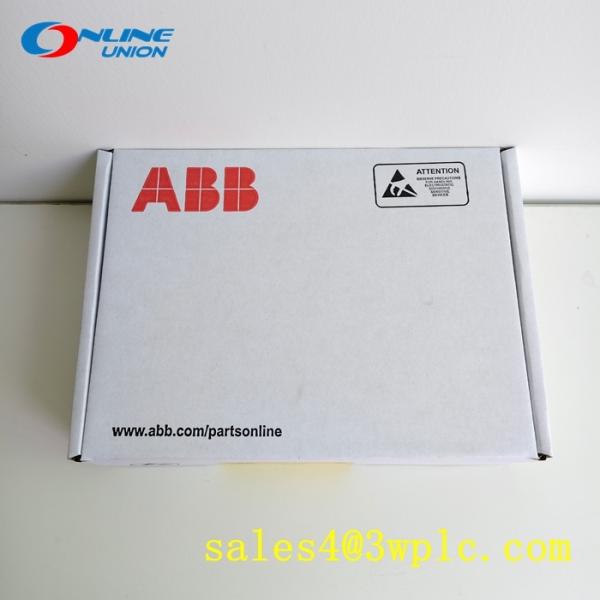

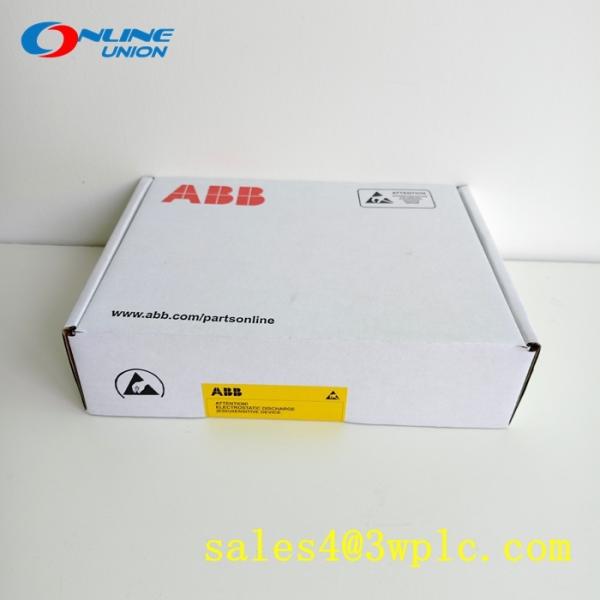

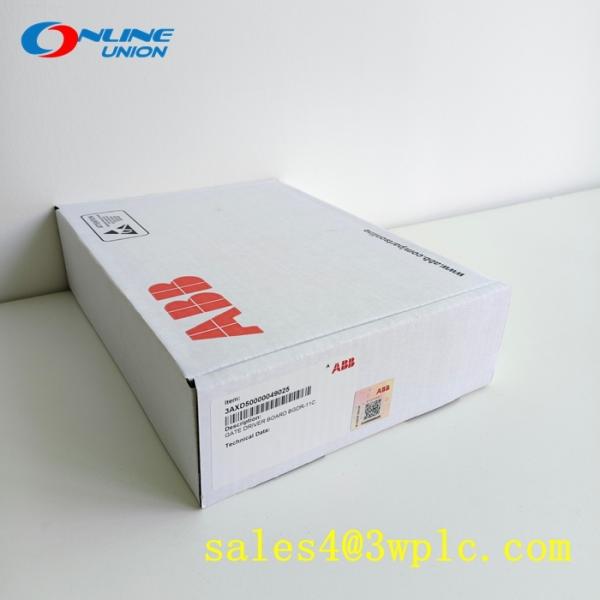

ABB 3AXD50000049025 Analog Signal Control Module

The BGDR-11C 3AXD50000049025 is an ABB analog signal control module designed for high-precision signal conversion and isolation in industrial automation systems. It serves as a critical component for collecting and processing analog signals (voltage/current) in sectors such as metallurgy, chemical engineering, and renewable energy. The module supports adaptive input configuration, enabling seamless switching between voltage and current modes without hardware modifications, and features robust electrical isolation to resist electromagnetic interference (EMI) in harsh environments.

Technical Specifications:

1. Model: BGDR-11C 3AXD50000049025
2. Function: Analog signal acquisition and isolation processing
3. Input Channels: 4 independent channels (configurable for voltage/current signals)
4. Input Ranges:
   • Voltage: ±10 V, 0–10 V
   • Current: 0–20 mA, 4–20 mA
5. Resolution: 16-bit ADC conversion
   • Voltage precision: ±0.05%
   • Current precision: ±0.1%
6. Isolation:
   • Channel-to-channel: 2500 VDC electrical isolation
   • Power-to-signal: 3000 VDC isolation
7. Environmental Adaptability:
   • Operating temperature: -25°C to +70°C
   • Storage temperature: -40°C to +85°C
8. Protection Rating: IP20 (standard), optional IP67 enclosure
9. Installation: DIN rail mounting, supports hot-swapping
10. Power Supply: 24 VDC (±15% tolerance), power consumption ≤3 W
