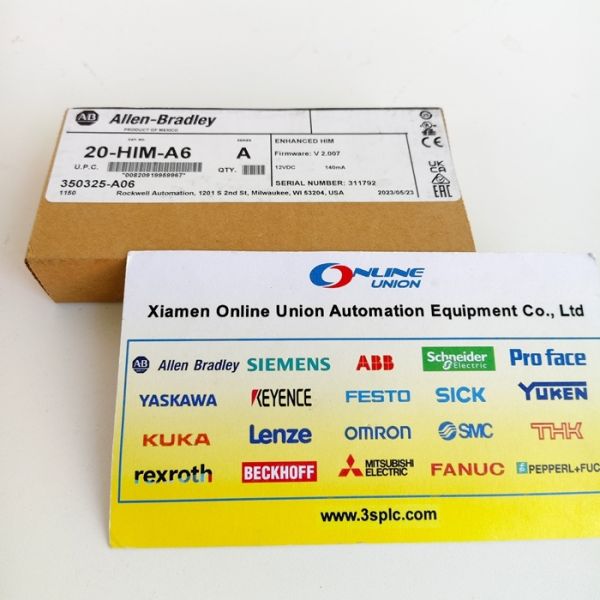

20-HIM-A6 Allen Bradley Human Interface Module
20-HIM-A6 Allen Bradley Human Interface Module
20-HIM-A6 Allen Bradley Human Interface Module
20-HIM-A6 Allen Bradley Human Interface Module
20-HIM-A6 Allen Bradley Human Interface Module
20-HIM-A6 Allen Bradley Human Interface Module
Specifications
Brand Name :
Allen Bradley
Model Number :
20-HIM-A6
Place of Origin :
USA
MOQ :
1
Price :
1-99$
Payment Terms :
T/T
Supply Ability :
999
Delivery Time :
in stock / 1-3 work days
Packaging Details :
Brand New Original
Current Consumption :
140 mA
Product Line :
PowerFlex 700
Protocol :
Drive Peripheral Interface (DPI)
Protection Rating :
NEMA 1 (when mounted)
Operating Temperature :
0–50 °C (32–122 °F)
Data Rate :
125 / 500 Kbps
Vibration Resistance :
2.5 G @ 5 Hz–2 kHz
Storage Temperature :
–40–85 °C (–40–185 °F)
Supply Voltage :
12 VDC
Description

Allen Bradley 20-HIM-A6 Human Interface Module:


The 20-HIM-A6 is a Human Interface Module (HIM) for Allen-Bradley PowerFlex drives. This is a NEMA Type 1 / IP20 rated device designed as an operator interface for configuring, controlling, and monitoring compatible PowerFlex variable frequency drives directly from the drive's front panel or via a handheld connection




Technical Specifications

Primary Function: Human Interface Module (HIM) for drive configuration and monitoring.

Display: Single-color LCD with a resolution of 128 x 64 pixels.

Interface: Features a full numeric keypad with integrated navigation and dynamic soft keys whose functions change based on the on-screen data.

Communication Protocol: Supports the Drive Peripheral Interface (DPI) protocol with selectable transmission speeds of 125 Kbps or 500 Kbps.

Power Supply: Powered by the host drive at 12V DC, with a typical current consumption of 140 mA.

Physical Dimensions (Approx.): 6.50 mm (H) x 11.00 mm (W) x 1.00 mm (D).

Key Features: Multi-language support (English, Spanish, French, German, Italian, etc.), real-time trending graphs, fault diagnostics, and user-defined shortcuts.


20-HIM-A6 Allen Bradley Human Interface Module



Packing & Delivery:

1)100% brand New and Original Factory Seal!

2)Warranty: 1 year

3)Package: Original packing with cartons.

4)Delivery time: Shipped in 3-7 days after payment

5) All the goods will be tested before shipment.
