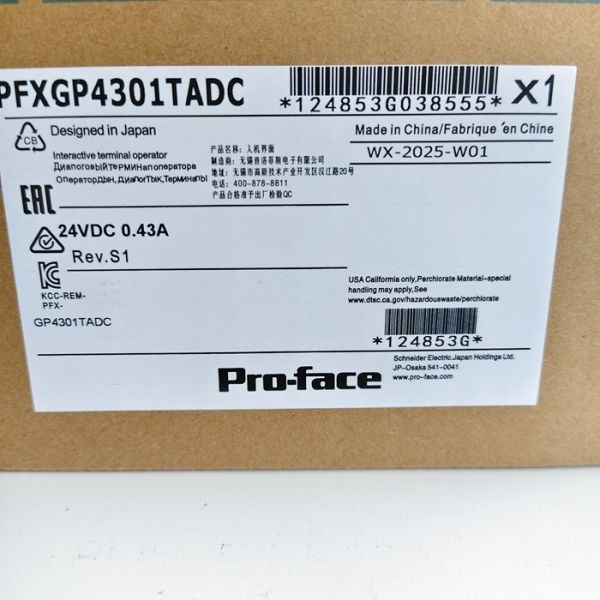

Proface PFXGP4301TADC Rugged, Panel-mounted HMI:

The PFXGP4301TADC is a rugged, panel-mounted HMI with a TFT color LCD display and a resistive analog touch panel. It serves as an operator interface for monitoring and controlling industrial processes, offering high reliability and durability in harsh environments. The device features conformal coating on its PCB, enhancing its resistance to dust, moisture, and chemical exposure, making it suitable for a wide range of industrial applications, including factory automation, process control, and machinery operation.

Technical Specifications:

Display

Type: TFT color LCD

Size: 5.7 inches

Resolution: 320 x 240 pixels (QVGA)

Effective Display Area: 115.2 mm (width) x 86.4 mm (height) [4.54 x 3.40 inches]

Colors: 65,536 colors (non-blinking) / 16,384 colors (blinking)

Backlight: White LED (non-user-replaceable; rated for 50,000+ hours of continuous operation at 25°C before brightness decreases to 50%)

Brightness Control: 16 levels (adjustable via touch panel or software)

Touch Panel

Type: Resistive film (analog)

Resolution: 1,024 x 1,024

Lifetime: 1,000,000+ touches

Languages and Fonts

Japanese: 6,962 characters (JIS Standards 1 & 2, including 607 non-kanji characters)

ANK (Alphanumeric): 158 characters

Additional Languages: Korean, Traditional Chinese, Simplified Chinese, and Cyrillic (can be added via screen editor font settings)

Font Sizes: Standard fonts (8x8, 8x16, 16x16, 32x32 pixels), stroke fonts (6 to 127 pixels), and image fonts (8 to 72 pixels). Standard fonts can be expanded up to 8x in width and height.

Electrical Specifications

Rated Input Voltage: 24 VDC

Input Voltage Range: 19.2 to 28.8 VDC

Allowable Voltage Drop: 7 ms or less

Power Consumption: 6.8 W or less

Inrush Current: 30 A or less

Noise Immunity: 2 kV (power port), 1 kV (signal ports) via IEC61000-4-4

Voltage Endurance: 1,000 VAC, 20 mA for 1 minute (between power terminal and FG terminals)

Insulation Resistance: 500 VDC, 10 MΩ or more (between power terminal and FG terminals)

Environmental Specifications

Operating Temperature: 0°C to 50°C (some sources indicate 0°C to 55°C)

Storage Temperature: -20°C to 60°C

Operating Humidity: 85% RH (non-condensing, wet bulb temperature: 39°C or less)

Storage Humidity: 85% RH (non-condensing, wet bulb temperature: 39°C or less)

Ingress Protection: IP65F (dust-tight and protected against water jets; equivalent to NEMA 4X, 12, and 13 ratings)

Altitude: Up to 2,000 meters (800 to 1,114 hPa)

Mechanical Specifications

Weight: Approximately 0.62 kg (main unit only)

Dimensions: 315 mm (width) x 241 mm (height) x 56 mm (depth)

Panel Cutout Dimensions: 301.5 mm (width) x 227.5 mm (height) (panel thickness: 1.6 to 5 mm)

Interfaces

Serial Ports: 2x RS-232C/RS-422/RS-485 (configurable)

Ethernet: 1x 10BASE-T/100BASE-TX (RJ-45 connector)

USB: 1x USB Type-A (for peripheral devices) and 1x USB Mini-B (for programming and data transfer)

SD Card Slot: For storage expansion and data logging

Memory

Application Memory: 16 MB FLASH EPROM (for storing programs and data)

Backup Memory: 320 KB SRAM with battery backup (for retaining data during power failures)

Packing & Delivery:

1)100% brand New and Original Factory Seal!

2)Warranty: 1 year

3)Package: Original packing with cartons.

4)Delivery time: Shipped in 3-7 days after payment

5) All the goods will be tested before shipment.
