5000 Lumen WUXGA Resolution Ultra Short Laser Projector For Home Cinema TV Experience
5000 Lumen WUXGA Resolution Ultra Short Laser Projector For Home Cinema TV Experience
5000 Lumen WUXGA Resolution Ultra Short Laser Projector For Home Cinema TV Experience
5000 Lumen WUXGA Resolution Ultra Short Laser Projector For Home Cinema TV Experience
5000 Lumen WUXGA Resolution Ultra Short Laser Projector For Home Cinema TV Experience
5000 Lumen WUXGA Resolution Ultra Short Laser Projector For Home Cinema TV Experience
5000 Lumen WUXGA Resolution Ultra Short Laser Projector For Home Cinema TV Experience
5000 Lumen WUXGA Resolution Ultra Short Laser Projector For Home Cinema TV Experience
5000 Lumen WUXGA Resolution Ultra Short Laser Projector For Home Cinema TV Experience
5000 Lumen WUXGA Resolution Ultra Short Laser Projector For Home Cinema TV Experience
Specifications
Brand Name :
SMX
Model Number :
MX-WPL500U
Certification :
ISO, SGS
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T,Western Union
Supply Ability :
20000 pcs/ monthly
Delivery Time :
10-20 days
Packaging Details :
Carton
Product Name :
UST Laser Projector
Brightness :
5000 Lumen
Resolution :
WUXGA(1920x1200)
Ligh Source :
Laser
Throw Laser :
0.235:1
Display Tecnology :
3LCD
Contrast Ratio :
5000000:1
Lifetime :
20000-30000hrs
Description

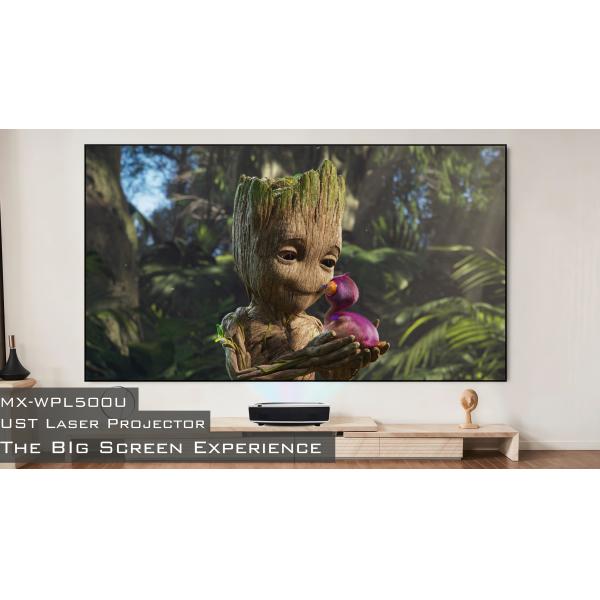

Ultra Short Throw 5000 Lumen Laser Projector – WUXGA Resolution Home Cinema TV Experience



Unveil a new dimension of home entertainment.
SMX MX-WPL UST Laser Projector engineered for the discerning viewer who refuses to compromise, it combines a brilliant 5000-lumen laser engine with spectacular WUXGA resolution to deliver a breathtakingly bright and incredibly detailed picture. Place it inches from your wall and transform any room into a stunning, large-scale cinema.


Key Features & Benefits:

  • 5000 Lumen Laser Brightness: Enjoy vibrant colors and deep contrasts in any lighting, perfect for films, sports, and games without needing complete darkness.
  • WUXGA Resolution (1920x1200): Experience stunning precision and clarity with 1.2 million pixels and a 16:10 aspect ratio, showcasing every detail in your content.
  • Ultra Short Throw Design: Project a 120-inch image from just 6.2 inches away, eliminating the need for mounts and wires while enhancing modern aesthetics.
  • Laser Phosphor Technology: Benefit from up to 20,000 hours of maintenance-free viewing with consistent brightness and color accuracy, far surpassing traditional projectors.


Specifications Summary:​​

  • Display Technology:​​ 3LCD
  • Brightness:​​ 5,000 ANSI Lumens
  • Native Resolution:​​ WUXGA (1920 x 1200)
  • Light Source:​​ Laser (20,000 hours to half brightness)
  • Throw Ratio:​​ 0.235:1 (Ultra Short Throw)
  • Contrast Ratio:​​ Dynamic Contrast: 5,000,000:1
  • Key Connectivity:​​ HDMI 2.1 (x2 with eARC), USB, Optical Audio Out, VGA, RS232

Application

  • Home Cinema
  • Business and Professional Environment
  • Education
  • Museum
  • Immersive Projection


5000 Lumen WUXGA Resolution Ultra Short Laser Projector For Home Cinema TV Experience

5000 Lumen WUXGA Resolution Ultra Short Laser Projector For Home Cinema TV Experience

5000 Lumen WUXGA Resolution Ultra Short Laser Projector For Home Cinema TV Experience

5000 Lumen WUXGA Resolution Ultra Short Laser Projector For Home Cinema TV Experience

5000 Lumen WUXGA Resolution Ultra Short Laser Projector For Home Cinema TV Experience

UST Projection Distance for reference


5000 Lumen WUXGA Resolution Ultra Short Laser Projector For Home Cinema TV Experience


Specification of the Laser Projector


Model No. MX-WPL500U
　 Brightness(Lumen) 5000
Overall Spec
Panel Display Panel 3x0.6" with MLA
Display Technology Liquid Crystal Display
Native Resolution WUXGA (1920 x 1200)
Light Source Lifetime Normal mode 20000hrs
ECO mode 30000hrs
Projection Lens F F1.7
f 2.94mm
Lens Vendor RICOH
Zoom/Focus Manual
Throw Ratio 0.235:1
Screen size 80-150"
CR Contrast Ratio 5,000,000:1
Noise Noise(dB) 37dB(Normal)/30dB(ECO1
Uniformity Uniformity 80%
AR Aspect Ratio Native:16:10
Compatible: 4:3/16:9
Terminal(I/O port)
Input VGA *1
HDMI 1.4B(IN) *2
USB-A *1
USB-B *1(Display)
RJ45 *1(Display)
Audio in
(mini jack,3.5mm)		 *1
Output VGA *1
Audio out
(mini-jack,3.5mm)		 *1
Control RS232 *1
RJ45 *1 (Control)
USB-B *1 (For upgrade)
General Spec
Audio Speaker 16W*1
Keystone Keystone Correction
(Lens@center)		 V: ±5°
H:±5°
Pincushion/Barrel Correction
6 Corner Geometry correction
Grid image tune
LAN Control LAN Control-RoomView
(Crestron)		 Yes
LAN Control--AMX Discovery Yes
LAN Control--PJ Link Yes
Others 360° projection Yes
Dimension&Weight
　 Product Size
(WxHxD mm)		 520x435x168
Net. Weight (KG) 11
Accessory
　 Manual Languages Chinese, English
Standard Accessaries Power cord, Remote, HDMI Cable
