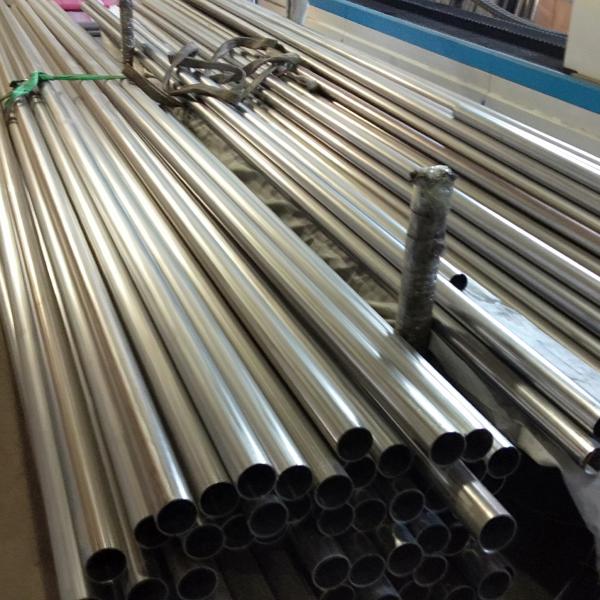

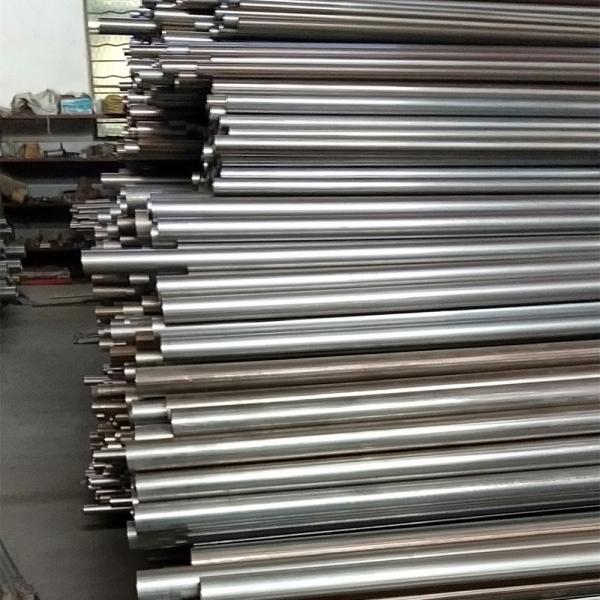

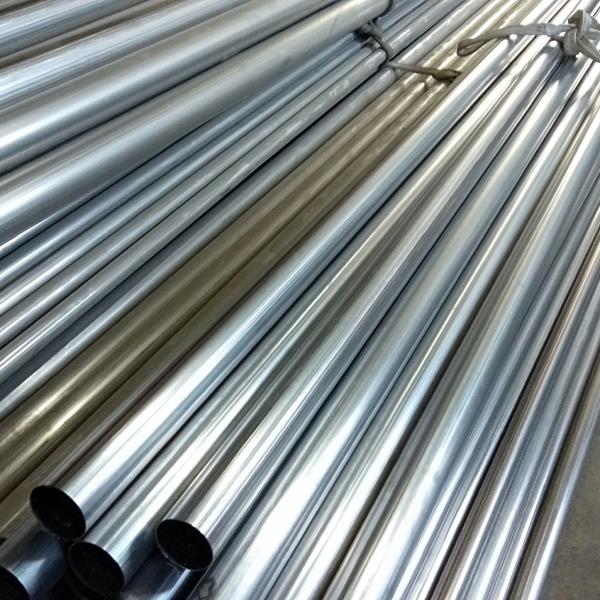

409L Stainless Steel Welded Tube 2D Polished SUH409L SS Pipe 60*1.5*6000 Auto Parts
409L Stainless Steel Welded Tube 2D Polished SUH409L SS Pipe 60*1.5*6000 Auto Parts
409L Stainless Steel Welded Tube 2D Polished SUH409L SS Pipe 60*1.5*6000 Auto Parts
409L Stainless Steel Welded Tube 2D Polished SUH409L SS Pipe 60*1.5*6000 Auto Parts
409L Stainless Steel Welded Tube 2D Polished SUH409L SS Pipe 60*1.5*6000 Auto Parts
409L Stainless Steel Welded Tube 2D Polished SUH409L SS Pipe 60*1.5*6000 Auto Parts
Specifications
Brand Name :
TISCO
Model Number :
409L
Place of Origin :
China
MOQ :
2 tons
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
500 tons/month
Delivery Time :
15 work days
Packaging Details :
Seaworthy Package
Certification :
ASTM,AISI,JIS,SUS,DIN,EN
Name :
409 Stainless Steel Tube
Type :
Welded
400 Series :
436L 430 409L 439 444 441
Specification :
Polished
Price Term :
EXW,FOB,CIF
Delivery :
7-15 Days
Description

409L Stainless Steel Welded Tube 2D Polished SUH409L SS Pipe 60*1.5*6000 Auto Parts

Basic information:

Nominal Outside Diameter Sch 5S Sch 10S Sch-40S Sch-80S Sch-160S Sch-XXS
mm inch mm WT mm Weight (Kg/mt) WT mm Weight (Kg/mt) WT mm Weight (Kg/mt) WT mm Weight (Kg/mt) WT mm Weight (Kg/mt) WT mm Weight (Kg/mt)
3 1/8 10.3 1.24 0.276 1.24 0.28 1.73 0.37 2.41 0.47 - - - -
6 1/4 13.7 1.24 0.390 1.65 0.49 2.24 0.631 3.02 0.80 - - - -
10 3/8 17.1 1.24 0.490 1.65 0.63 2.31 0.845 3.20 1.10 - - - -
15 1/2 21.3 1.65 0.800 2.11 1.00 2.77 1.27 3.75 1.62 4.75 1.94 7.47 2.55
20 3/4 26.7 1.65 1.03 2.11 1.28 2.87 1.68 3.91 2.20 5.54 2.89 7.82 3.63
25 1 33.4 1.65 1.30 2.77 2.09 3.38 2.50 4.55 3.24 6.35 4.24 9.09 5.45
32 1 1/4 42.2 1.65 1.65 2.77 2.70 3.56 3.38 4.85 4.47 6.35 5.61 9.70 7.77
40 1 1/2 48.3 1.65 1.91 2.77 3.11 3.68 4.05 5.08 5.41 7.14 7.25 10.16 9.54
50 2 60.3 1.65 2.40 2.77 3.93 3.91 5.44 5.54 7.48 8.74 11.1 11.07 13.44
65 2 1/2 73.0 2.11 3.69 3.05 5.26 5.16 8.63 7.01 11.4 9.53 14.9 14.2 20.39
80 3 88.9 2.11 4.51 3.05 6.45 5.49 11.30 7.62 15.2 11.1 21.3 15.24 27.65
100 4 114.3 2.11 5.84 3.05 8.36 6.02 16.07 8.56 22.3 13.49 33.54 17.12 41.03
125 5 141.3 2.77 9.47 3.40 11.57 6.55 21.8 9.53 31.97 15.88 49.11 19.05 57.43
150 6 168.3 2.77 11.32 3.40 13.84 7.11 28.3 10.97 42.7 18.2 67.56 21.95 79.22
200 8 219.1 2.77 14.79 3.76 19.96 8.18 42.6 12.7 64.6 23.0 111.2 22.23 107.8
250 10 273.1 3.40 22.63 4.19 27.78 9.27 60.5 12.7 96.0 28.6 172.4 25.40 155.15
300 12 323.9 3.96 31.25 4.57 36.00 9.52 73.88 12.7 132.0 33.32 238.76 25.40 186.97
350 14 355.6 3.96 34.36 4.78 41.3 11.13 94.59 19.05 158.08 35.71 281.70 - -
400 16 406.4 4.19 41.56 4.78 47.29 12.7 123.30 21.41 203.33 40.46 365.11 - -
450 18 457.2 4.19 46.80 4.78 53.42 14.27 155.80 23.8 254.36 45.71 466.40 - -
500 20 508.0 4.78 59.25 5.54 68.71 15.09 183.42 26.19 311.2 49.99 564.68 - -
600 24 609.6 5.54 82.47 6.35 94.45 17.48 255.41 30.96 442.08 59.54 808.22 - -

More:

Destructive Testing
• Tensile Test • Flaring Test • IGC Test - Prac A,B,C&E
• Hardness Test • Flange Test • Reverse Flattening Test
• Flattening Test • Reverse Test - Bend Test • Impact Test
Non- Destructive Testing
• Hydrostatic Test • P.M.I Test • Dye Penetrant Test
• Eddy Current Test • Spectro Test • Baroscopic Test
• Air Under Water Test • Ultrasonic Test

About us:

We supply every kind of stainless steel pipes which are widely used at different fields.
Pipes can be by seamless(Hot rolled/Cold rolled) or welded (ERW).
Common application for stainless tubes is for fluid pipe, construction pipe, decoration/ornamental pipe
and special mechanical purpose.
Pipe size: small diameter from 3mm to 18mm, normal size from 21mm to 219mm, big size pipe from 273mm to 406mm, even bigger.

Useage:

1.Pipeline Transport,

2.Boiler Pipe,

3.Hydraulic/Automobile Pipe,

4.Oil/Gas Drilling,

5.Food/Beverage/Dairy Products,

6.Machinery Industry,

7.Chemical Industry, Mining,

8.Construction & Decoration,

9.Special Purpose


About us:

TSING SHAN is your premium supplier and processor of specialty stainless steel,

high temperature stainless grades, corrosion resistant stainless grades and duplex materials - in multiple product forms,

including stainless steel plate, bar, tubular and structural forms. In the past, we have been assiduously surpassing our goals

step by step in the stainless steel industry. Over the years, perseverance and ardor in our work helped us to carve out

a path of success for us and our venerated clients. With state-of-the-art manufacturing processes, contemporary technologies,

and proficient services, we consider: offering finest quality-best in class products-at the most advantageous rates, as our forte.
