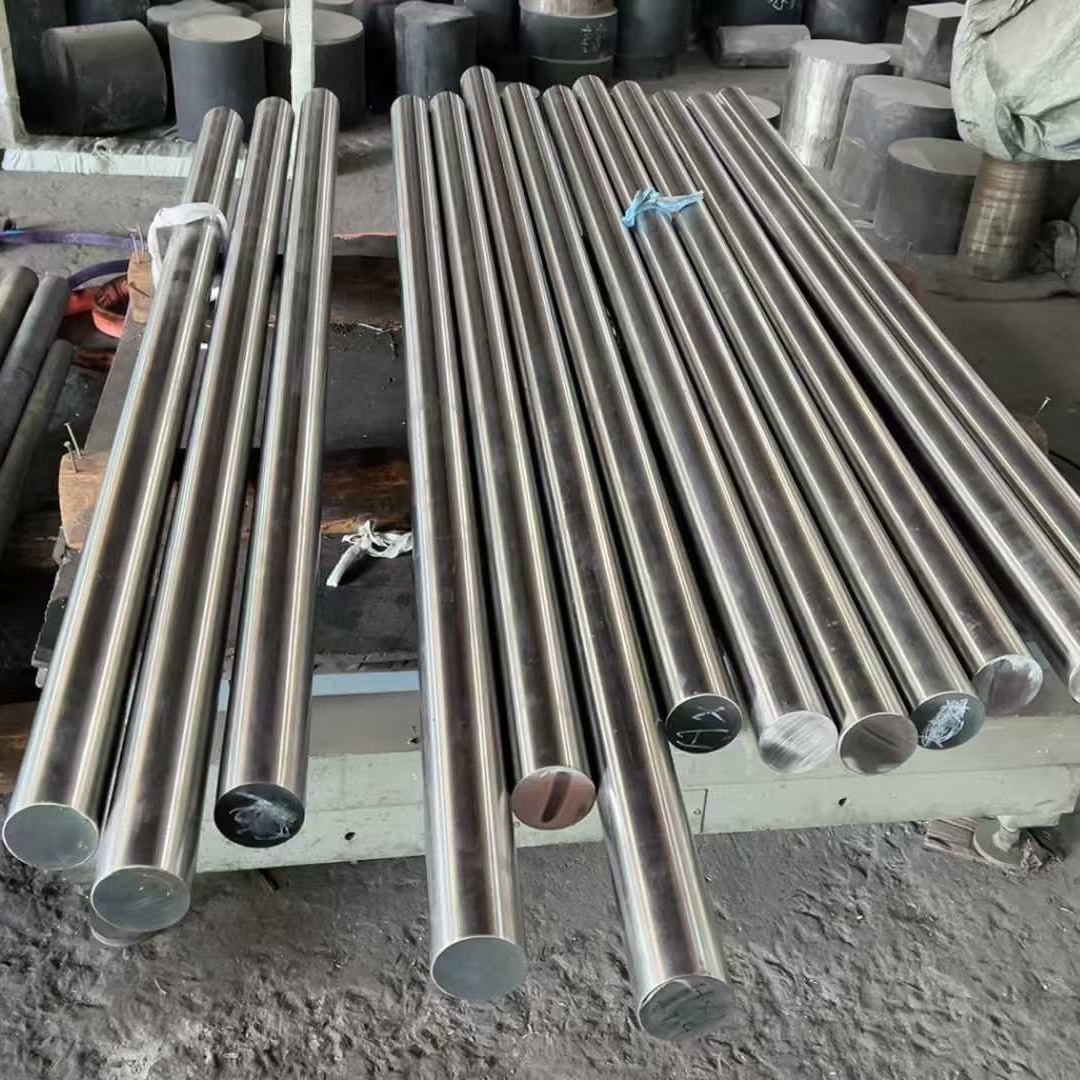

Permalloy 1J80 Rod High Permeability Soft Magnetic Alloy Bar
Permalloy 1J80 Rod High Permeability Soft Magnetic Alloy Bar
Permalloy 1J80 Rod High Permeability Soft Magnetic Alloy Bar
Permalloy 1J80 Rod High Permeability Soft Magnetic Alloy Bar
Permalloy 1J80 Rod High Permeability Soft Magnetic Alloy Bar
Permalloy 1J80 Rod High Permeability Soft Magnetic Alloy Bar
Specifications
Brand Name :
TSING SHAN
Model Number :
1J50
Certification :
ISO SGS MTC
Place of Origin :
China
MOQ :
10KGS
Price :
25-32.65 USD/KG
Payment Terms :
L/C, T/T
Supply Ability :
50000KGS
Delivery Time :
7 Days
Packaging Details :
Export Packing
Surface Finish :
Smooth
Ppi :
15~120
Mechanicalstrength :
High tensile and yield strength
Shape Form :
Strip/ Sheet/ Plate/ Disk/ Washer
Feature :
high resistance
Standard :
ASTM EN
Color :
Silver grey
Resistancetooxidation :
Excellent at high temperatures
Powder Or Not :
not powder
Size :
0.025-0.6
Width :
1330mm Max.
Service :
Laser Cutting
Conductor Type :
solid
Version :
3.0.33
Cost :
Relatively high compared to standard steels
Description

Permalloy 1J80 Rod High Permeability Soft Magnetic Alloy Bar

Name
Soft magnetic alloy wire
Grade
Soft magnetic alloy
1J06,1J12,1J17,1J18 ,1J30,1J76 ,1J51,1J54,1J46,1J80,1J87
Permalloy
1J50, 1J79 ,1J85, 1J77
Fe-cobalt alloy
1J22 ,1J36 ,1J38 ,1J55
Size
Sheet
3.5-40/mm
Strip
0.2-3.5/mm
Pipe
8.0-180/mm
Bar
8.0-180/mm
Wire
Custom
Density
8.2 g/cm3
Thermal Expansion Coefficient (20~100ºC)
8.2*10-6 /ºC
Curie Point
498ºC
Volume Resistivity (20ºC)
45μΩ.cm
Thermal Conductivity
16.5W/m. ºC
InitialMagnetic Permeability
Min.8.0mH/m
MaximumMagneticPermeability
Min.50mH/m
CoerciveForce
Max.10A/m
SaturationMagneticFluxDensity
1.5T
Chemical Composition
C
P
S
Cu
Mn
Si
Mo
Ni
Fe
≤0.03
≤0.020
≤0.020
≤0.020
0.30-0.60
0.15-0.30
4.8-5.2
79.0-81.0
margin
MEAN COEFFICIENT OF LINEAR EXPANSION
20-100ºC
20-200ºC
20-300ºC
20-400ºC
20-500ºC
20-600ºC
20-700ºC
20-800ºC
20-900ºC
12.8-13.0
12.5-12.7
13.1-13.4
13.4-13.8
13.9-14.4
14.2-14.8
14.5-15.2
15.0-15.6
15.5-15.6


Permalloy 1J80 Rod High Permeability Soft Magnetic Alloy BarPermalloy 1J80 Rod High Permeability Soft Magnetic Alloy BarPermalloy 1J80 Rod High Permeability Soft Magnetic Alloy Bar

FAQ

1. Who are we?
We are based in shandong, wuxi , start from 2016,sell to Western Europe,Southeast Asia,South America,Southern Europe,North America,Oceania,Domestic Market,Africa,Northern Europe,Central America,Mid East,Eastern Europe,South Asia,Eastern Asia.
2. What's your terms of payment?
30%TT as the deposit, 70% before delivery. We will show you the photos, videos and package before you pay the balance.
3.What's your delivery time?
For stocks, we could transport the goods to loading port within 7 work days after we received the despoit.
For production period, it usually takes about 15 days to 30 days after we received the despoit
4. What's the terms of packing?
Standard export package. We pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers' requirement.
5. Could you provide the samples?
Yes, we could provide the free samples on conditons it is available in stocks, however, the the transportation fee is borne by buyer.
6. How could you guarantee your products?
Each piece of products is manufactured by certified workshops, inspected by Lenser piece by piece according to national QA/QC standard. We also could issue the warranty to customer to guarantee the quality.
Always a pre-production sample before mass production;
Always final Inspection before shipment;
Looking forward to your inquiry anytime(7*24hours online service-Always for you)
