Specifications
Certification :
ISO, AISI, ASTM
MOQ :
50
Price :
1.35
Model NO. :
304 316L 310S
Shape :
Flat
Technique :
Cold Rolled
Surface Treatment :
Bright
Cr Content :
18%
Ni Content :
8%
Specification :
1220*2440, 1500*3000, 1500*6000, 2000*6000mm
Production Capacity :
50000kgs
Tensile Strength :
≥ 520 MPa
Yield Strength :
≥ 205 MPa
Elongation :
≥40%
Section Shrinkage :
≥ 60%
Hardness :
≤ 187HB; ≤ 90HRB; ≤ 200HV
Melting Point :
1398 ~ 1454 ºC
Thermal Conductivity :
16.3 ~ 21.5 W/m.K
Description
304 Stainless Steel Metal Sheet
ASTM A240 304 stainless steel sheet available in various surface finishes including 2B, NO.1, NO.4, HL, BA, and 8K mirror finishes.
Surface Treatments & Characteristics
Surface Finish Characteristics and Applications
NO.2B Superior brightness and flatness compared to NO.2D. Enhanced mechanical properties through special surface treatment for comprehensive applications.
NO.1 Heat treatment and pickling finish after hot rolling process.
NO.4 Polished with #150-#180 grit abrasive belt. Features better brightness with discontinuous coarse striations. Used for bathtubs, building ornaments, appliances, kitchen utensils, and food processing equipment.
HL Polished with #150-#320 grit abrasive belt on NO.4 finish with continuous streaks. Ideal for building ornaments, elevators, doors, and frontal plates.
BA Cold rolled, bright annealed, and skin-passed. Excellent brightness and mirror-like reflectivity for kitchen apparatus and decorative applications.
8K Excellent brightness and superior mirror-like reflectivity.
Chemical Composition
Carbon (C): ≤0.08% | Silicon (Si): ≤1.0% | Manganese (Mn): ≤2.0%
Chromium (Cr): 18.0-20.0% | Nickel (Ni): 8.0-10.0%
Sulfur (S): ≤0.03% | Phosphorus (P): ≤0.045%
Physical Properties
Property Value
Tensile Strength σb (MPa) ≥ 520
Yield Strength σ0.2 (MPa) ≥ 205
Elongation δ5 (%) ≥ 40
Section Shrinkage ψ (%) ≥ 60
Hardness ≤ 187HB; ≤ 90HRB; ≤ 200HV
Melting Point (°C) 1398 - 1454
Specific Heat Capacity (0-100°C, KJ/kgK) 0.50
Thermal Conductivity (W/m·K) 16.3 (100°C), 21.5 (500°C)
Linear Expansion Coefficient 17.2 (0-100°C), 18.4 (0-500°C)
Resistivity (20°C, 10⁻⁶ Ω·m) 0.73
Longitudinal Elastic Modulus (20°C, KN/mm²) 193
Corrosion Resistance
Stainless steel's exceptional resistance to corrosion and staining, combined with low maintenance requirements and attractive luster, makes it ideal for numerous applications. This alloy is widely used in cookware, cutlery, household hardware, surgical instruments, major appliances, industrial equipment, and automotive and construction components for large buildings. It is particularly suitable for commercial kitchens and food processing plants, as it can be steam-cleaned and sterilized without requiring paint or other surface finishes.
Applications
  • Food preparation equipment, especially in chloride environments
  • Chemical processing equipment
  • Laboratory benches and equipment
  • Rubber, plastics, pulp & paper machinery
  • Pollution control equipment
  • Boat fittings, valves and pump trim

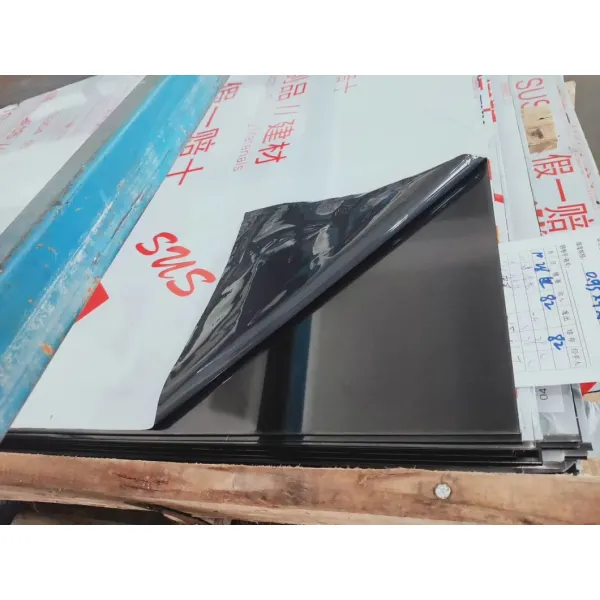

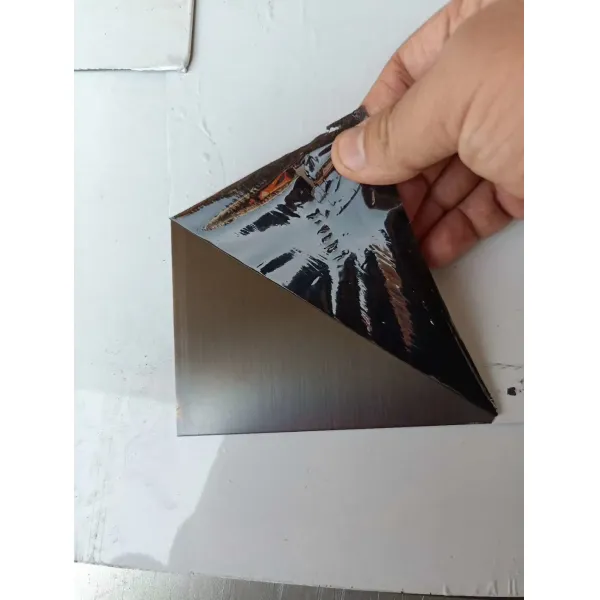

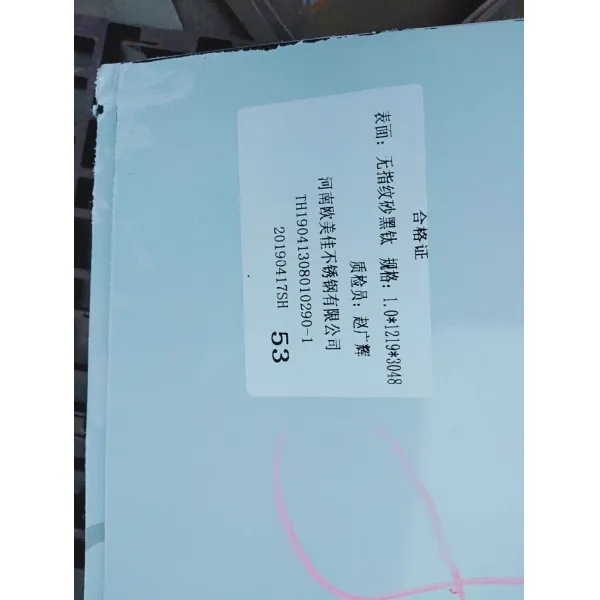

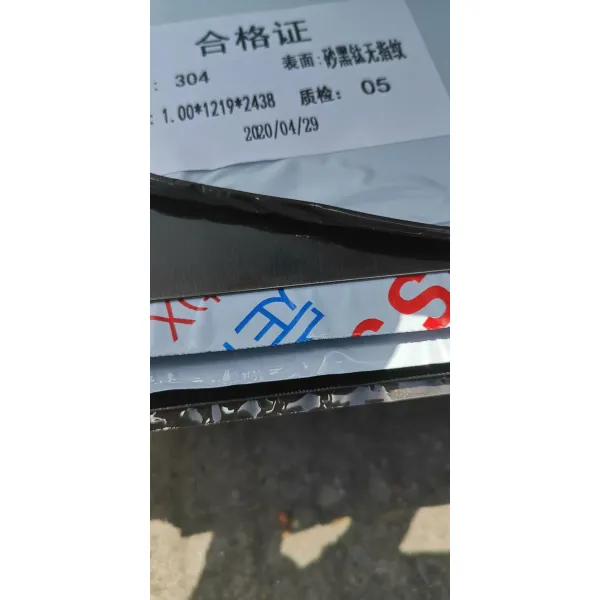

Product Images
304 Stainless Steel Sheet with Bright Surface and 1220*2440mm Size Cold Rolled Metal Sheet 304 Stainless Steel Sheet with Bright Surface and 1220*2440mm Size Cold Rolled Metal Sheet 304 Stainless Steel Sheet with Bright Surface and 1220*2440mm Size Cold Rolled Metal Sheet 304 Stainless Steel Sheet with Bright Surface and 1220*2440mm Size Cold Rolled Metal Sheet
