304 Stainless Steel Sheet 0.5 mm Thickness Bright Surface Cold Rolled SS Sheet
304 Stainless Steel Sheet 0.5 mm Thickness Bright Surface Cold Rolled SS Sheet
304 Stainless Steel Sheet 0.5 mm Thickness Bright Surface Cold Rolled SS Sheet
304 Stainless Steel Sheet 0.5 mm Thickness Bright Surface Cold Rolled SS Sheet
304 Stainless Steel Sheet 0.5 mm Thickness Bright Surface Cold Rolled SS Sheet
304 Stainless Steel Sheet 0.5 mm Thickness Bright Surface Cold Rolled SS Sheet
304 Stainless Steel Sheet 0.5 mm Thickness Bright Surface Cold Rolled SS Sheet
304 Stainless Steel Sheet 0.5 mm Thickness Bright Surface Cold Rolled SS Sheet
304 Stainless Steel Sheet 0.5 mm Thickness Bright Surface Cold Rolled SS Sheet
304 Stainless Steel Sheet 0.5 mm Thickness Bright Surface Cold Rolled SS Sheet
Specifications
Certification :
ISO, AISI, ASTM
MOQ :
50
Price :
1.95
Thickness :
0.5, 0.6, 0.8, 1.2, 1.5, 2, 2.5, 3.0 mm
Model NO. :
304
Shape :
Flat
Technique :
Cold Rolled
Surface Treatment :
Bright
Chromium Content :
18%
Nickel Content :
8%
Specification :
1220*2440, 1500*3000, 1500*6000, 2000*6000mm
Tensile Strength :
≥ 520 MPa
Yield Strength :
≥ 205 MPa
Elongation :
≥40%
Section Shrinkage :
≥ 60%
Hardness :
≤ 187HB; ≤ 90HRB; ≤ 200HV
Melting Point :
1398 ~ 1454 ºC
Thermal Conductivity :
16.3 ~ 21.5 W/m.K
Description
304 & 316L Stainless Steel Sheets
Available in thicknesses: 0.5, 0.6, 0.8, 1.2, 1.5, 2, 2.5, 3.0 mm
Surface Treatments & Characteristics
Surface Finish Characteristics and Applications
NO.2B Better brightness and flatness than NO.2D, with improved mechanical properties for comprehensive applications
NO.1 Heat treated and pickled surface after hot rolling process
NO.4 Polished with #150-#180 grit abrasive belt, used for bathtubs, building ornaments, appliances, kitchen utensils, and food processing equipment
HL Polished with #150-#320 grit on NO.4 finish with continuous streaks, ideal for building ornaments, elevators, doors, and frontal plates
BA Cold rolled, bright annealed with excellent mirror-like brightness, suitable for kitchen apparatus and decorations
8K Excellent brightness and superior reflectivity, can be used as mirror
Chemical Composition
C: ≤0.08%, Si: ≤1.0%, Mn: ≤2.0%, Cr: 18.0-20.0%, Ni: 8.0-10.0%, S: ≤0.03%, P: ≤0.045%
Physical Properties
Property Value
Tensile Strength σb (MPa) ≥ 520
Yield Strength σ0.2 (MPa) ≥ 205
Elongation δ5 (%) ≥ 40
Section Shrinkage ψ (%) ≥ 60
Hardness ≤ 187HB; ≤ 90HRB; ≤ 200HV
Melting Point (°C) 1398 - 1454
Specific Heat Capacity (0-100°C, KJ/kgK) 0.50
Thermal Conductivity (W/m·K) 16.3 (100°C), 21.5 (500°C)
Linear Expansion Coefficient 17.2 (0-100°C), 18.4 (0-500°C)
Resistivity (20°C, 10⁻⁶ Ω·m) 0.73
Longitudinal Elastic Modulus (20°C, KN/mm²) 193
Corrosion Resistance
Stainless steel's exceptional resistance to corrosion and staining, combined with low maintenance requirements and attractive appearance, makes it ideal for numerous applications. The alloy is widely used in cookware, cutlery, household hardware, surgical instruments, major appliances, industrial equipment, and automotive and construction materials for large buildings. It is particularly suitable for commercial kitchens and food processing plants, as it can be steam-cleaned and sterilized without requiring paint or other surface finishes.
Applications
  • Food preparation equipment, especially in chloride environments
  • Chemical processing equipment
  • Laboratory benches and equipment
  • Rubber, plastics, pulp & paper machinery
  • Pollution control equipment
  • Boat fittings, valves and pump trim

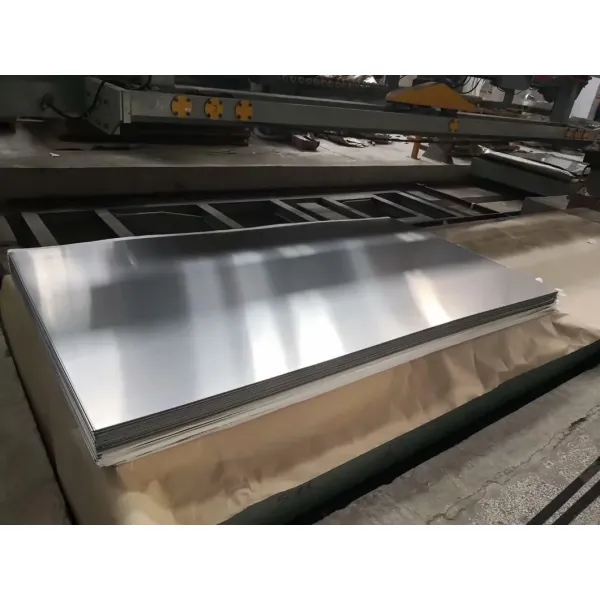

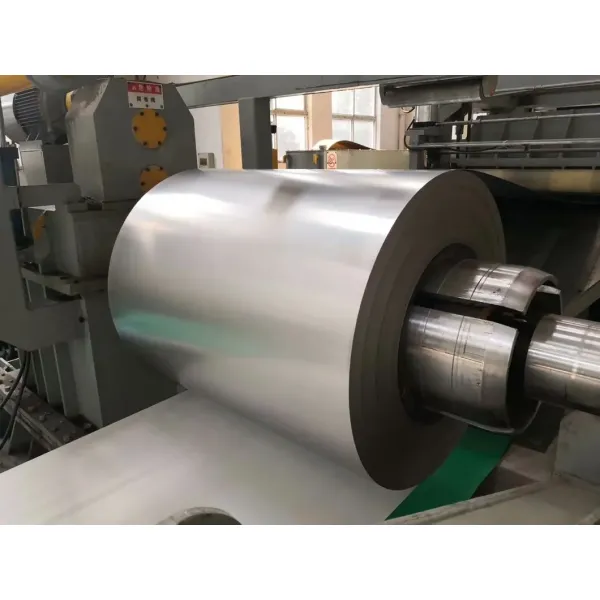

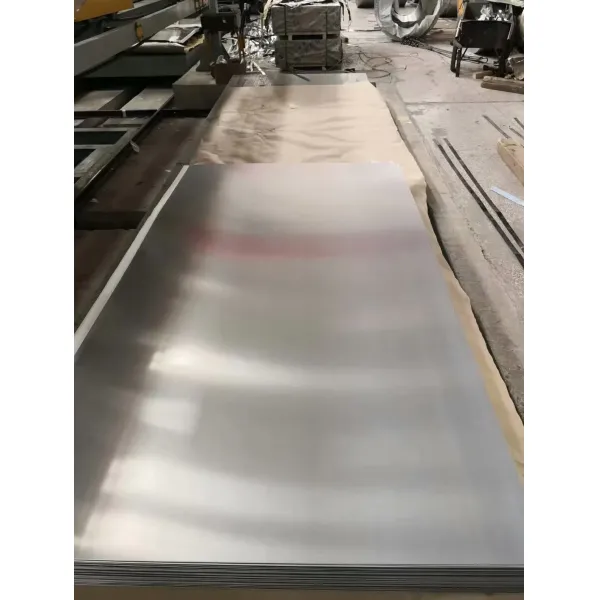

Product Images
304 Stainless Steel Sheet 0.5 mm Thickness Bright Surface Cold Rolled SS Sheet 304 Stainless Steel Sheet 0.5 mm Thickness Bright Surface Cold Rolled SS Sheet 304 Stainless Steel Sheet 0.5 mm Thickness Bright Surface Cold Rolled SS Sheet 304 Stainless Steel Sheet 0.5 mm Thickness Bright Surface Cold Rolled SS Sheet
