304 Stainless Steel Perforated Sheet with 0.1-10mm Hole Cold Rolled for Industrial Use
304 Stainless Steel Perforated Sheet with 0.1-10mm Hole Cold Rolled for Industrial Use
304 Stainless Steel Perforated Sheet with 0.1-10mm Hole Cold Rolled for Industrial Use
304 Stainless Steel Perforated Sheet with 0.1-10mm Hole Cold Rolled for Industrial Use
304 Stainless Steel Perforated Sheet with 0.1-10mm Hole Cold Rolled for Industrial Use
304 Stainless Steel Perforated Sheet with 0.1-10mm Hole Cold Rolled for Industrial Use
304 Stainless Steel Perforated Sheet with 0.1-10mm Hole Cold Rolled for Industrial Use
304 Stainless Steel Perforated Sheet with 0.1-10mm Hole Cold Rolled for Industrial Use
304 Stainless Steel Perforated Sheet with 0.1-10mm Hole Cold Rolled for Industrial Use
304 Stainless Steel Perforated Sheet with 0.1-10mm Hole Cold Rolled for Industrial Use
304 Stainless Steel Perforated Sheet with 0.1-10mm Hole Cold Rolled for Industrial Use
304 Stainless Steel Perforated Sheet with 0.1-10mm Hole Cold Rolled for Industrial Use
Specifications
Certification :
ISO, AISI, ASTM
MOQ :
50
Price :
2.15
Model NO. :
304 316L 904L 310S
Shape :
Flat
Technique :
Cold Rolled
Surface Treatment :
Bright
Cr Content :
18%
Ni Content :
8%
Specification :
1220*2440, 1500*3000, 1500*6000, 2000*6000mm
Production Capacity :
50000kgs
Tensile Strength :
≥ 520 MPa
Yield Strength :
≥ 205 MPa
Elongation :
≥40%
Section Shrinkage :
≥ 60%
Hardness :
≤ 187HB; ≤ 90HRB; ≤ 200HV
Melting Point :
1398 ~ 1454 ºC
Thermal Conductivity :
16.3 ~ 21.5 W/m.K
Description
Stainless Steel Perforated Sheet - 304, 316L, 904L, 310S Grades
High-quality stainless steel perforated sheets available in various grades including 304, 316L, 904L, and 310S with hole sizes ranging from 0.1mm to 10mm.
Surface Treatments and Characteristics
Surface Finish Characteristics and Applications
NO.2B Superior brightness and flatness compared to NO.2D. Enhanced mechanical properties through special surface treatment, suitable for comprehensive applications.
NO.1 Heat treatment and pickling finish after hot rolling process.
NO.4 Polished with #150-#180 grit abrasive belt. Features better brightness with discontinuous coarse striations. Ideal for bathtubs, building ornaments, electrical appliances, kitchen utensils, and food processing equipment.
HL Polished with #150-#320 grit abrasive belt on NO.4 finish with continuous streaks. Primarily used for building ornaments, elevators, architectural doors, and frontal plates.
BA Cold rolled, bright annealed, and skin-passed. Excellent brightness and mirror-like reflectivity. Suitable for kitchen apparatus and decorative applications.
8K Exceptional brightness and superior mirror-like reflectivity.
Chemical Composition
Carbon (C): ≤0.08% | Silicon (Si): ≤1.0% | Manganese (Mn): ≤2.0%
Chromium (Cr): 18.0-20.0% | Nickel (Ni): 8.0-10.0%
Sulfur (S): ≤0.03% | Phosphorus (P): ≤0.045%
Physical Properties
Property Value
Tensile Strength (σb) ≥ 520 MPa
Yield Strength (σ0.2) ≥ 205 MPa
Elongation (δ5) ≥ 40%
Section Shrinkage (ψ) ≥ 60%
Hardness ≤ 187HB; ≤ 90HRB; ≤ 200HV
Melting Point 1398-1454°C
Specific Heat Capacity (0-100°C) 0.50 KJ/kg·K
Thermal Conductivity 16.3 W/m·K (100°C), 21.5 W/m·K (500°C)
Linear Expansion Coefficient 17.2 (0-100°C), 18.4 (0-500°C)
Resistivity (20°C) 0.73 × 10⁻⁶ Ω·m
Longitudinal Elastic Modulus (20°C) 193 KN/mm²
Corrosion Resistance
Stainless steel offers excellent resistance to corrosion and staining, requires low maintenance, and maintains its characteristic luster, making it ideal for numerous applications. This alloy is widely used in cookware, cutlery, household hardware, surgical instruments, major appliances, industrial equipment, and as construction material in large buildings. It is particularly suitable for commercial kitchens and food processing plants due to its steam-cleanability, sterilizability, and elimination of need for paint or other surface finishes.
Applications
  • Food preparation equipment, especially in chloride environments
  • Chemical processing equipment
  • Laboratory benches and equipment
  • Rubber, plastics, pulp & paper machinery
  • Pollution control equipment
  • Boat fittings, valves and pump trim

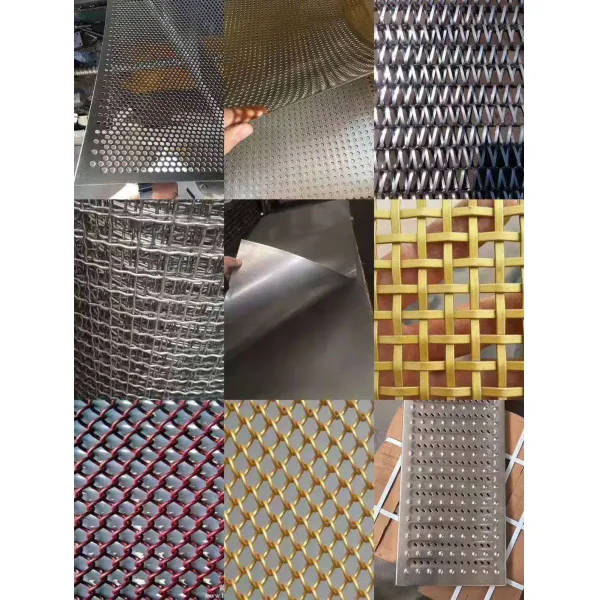

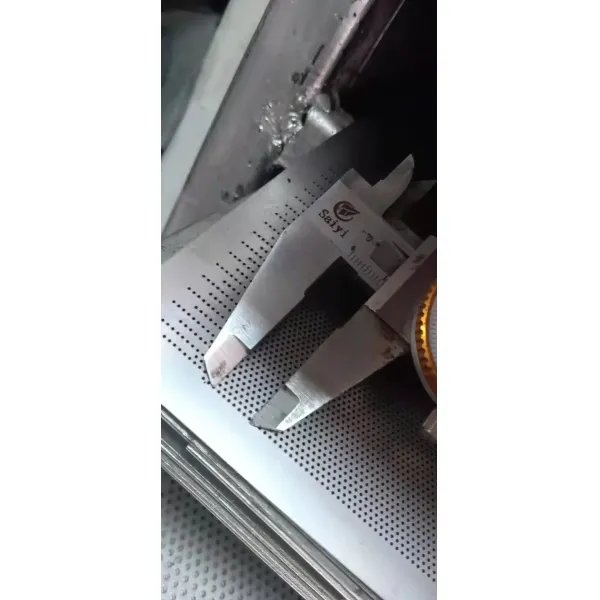

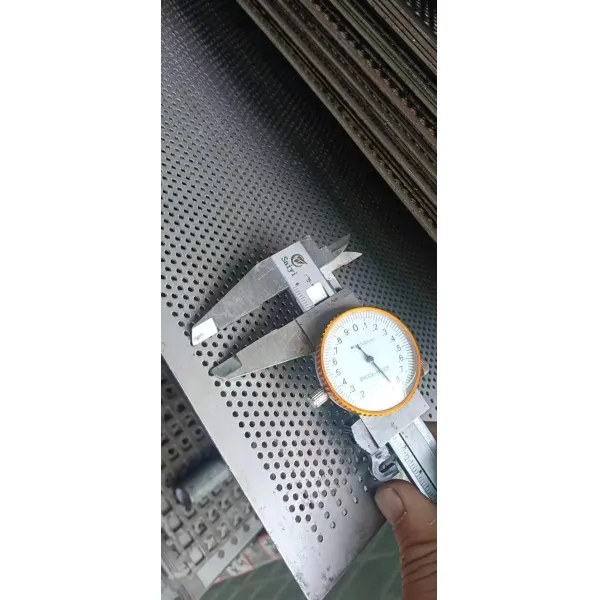

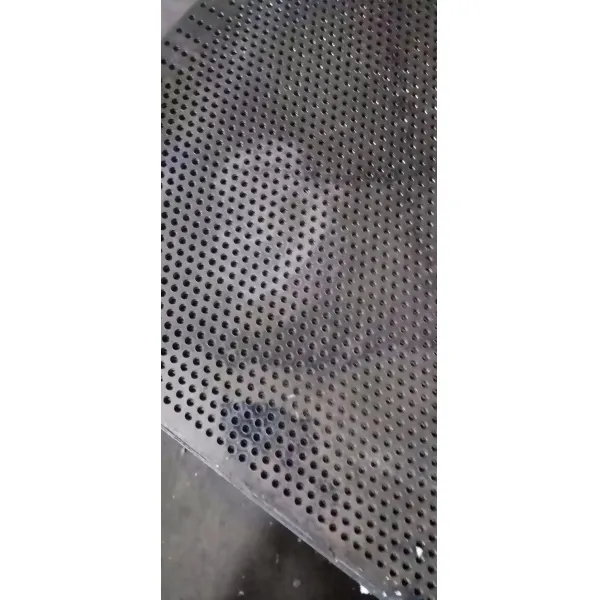

Product Images
304 Stainless Steel Perforated Sheet with 0.1-10mm Hole Cold Rolled for Industrial Use 304 Stainless Steel Perforated Sheet with 0.1-10mm Hole Cold Rolled for Industrial Use 304 Stainless Steel Perforated Sheet with 0.1-10mm Hole Cold Rolled for Industrial Use 304 Stainless Steel Perforated Sheet with 0.1-10mm Hole Cold Rolled for Industrial Use
