Hot Rolled No. 1 Finish Grade 430 Stainless Steel Plate 3.0 - 10.0mm SS 430 Plate from TISCO
Hot Rolled No. 1 Finish Grade 430 Stainless Steel Plate 3.0 - 10.0mm SS 430 Plate from TISCO
Hot Rolled No. 1 Finish Grade 430 Stainless Steel Plate 3.0 - 10.0mm SS 430 Plate from TISCO
Hot Rolled No. 1 Finish Grade 430 Stainless Steel Plate 3.0 - 10.0mm SS 430 Plate from TISCO
Hot Rolled No. 1 Finish Grade 430 Stainless Steel Plate 3.0 - 10.0mm SS 430 Plate from TISCO
Hot Rolled No. 1 Finish Grade 430 Stainless Steel Plate 3.0 - 10.0mm SS 430 Plate from TISCO
Specifications
Certification :
AISI, ASTM
MOQ :
100KGS
Price :
1.45-2.65 USD/KG
Brand Name :
TSING SHAN
Model Number :
430 1.4006
Place of Origin :
China
Payment Terms :
L/C, T/T
Supply Ability :
800000KGS
Delivery Time :
7 Days
Packaging Details :
Export Packing
Model NO. :
430
Shape :
Flat
Technique :
Hot Rolled
Surface Treatment :
NO.1
Thickness Range :
0.3 - 10.0mm
Standard Size :
1000*2000mm, 1219*2438mm, 1500*6000mm
Surface Finish :
2B, BA, NO.4, Hairline, Mirror, 8K
Tensile Strength :
483 MPa min
Yield Strength :
310 MPa min
Elongation :
22% min
Hardness :
85 HRB max, 183 HB max
Density :
7750 kg/m3
Elastic Modulus :
200 GPa
Thermal Conductivity :
26.1 W/m.K at 100°C, 26.3 W/m.K at 500°C
Electrical Resistivity :
600 nΩ.m
Description
Hot Rolled No. 1 Finish Grade 430 Stainless Steel Plate 3.0 - 10.0mm SS 430 Plate from TISCO
Hot Rolled NO.1 Finish Grade 430 Stainless Steel Plate 3.0 - 10.0mm SS Plate from TISCO
Product Specifications
Products 430 Stainless Steel Sheet
Thickness Cold Rolled 0.3 - 3.0mm, Hot Rolled 3.0 - 10.0mm
Standard Size Cold Rolled 1000×2000mm, 1219×2438mm
Hot Rolled 1500×6000mm
Surface 2B, BA, NO.4, Hairline, Mirror 8K, etc.
Brand TISCO, JISCO, POSCO, BAOSTEEL
Standard ASTM A240 / JIS G4305 / EN 10088-2
Other Grades 201, 202, 301, 304, 304L, 309S, 310S, 316L, 316Ti, 317L, 321, 347, 410, 420, 430, 440, 441, 443, 444, 2205, 2507, etc.
Our Service Slit Cutting, Surface Processing
Introduction to 430 Stainless Steel
Stainless steel grade 430 is a non-hardenable steel containing straight chromium, belonging to the ferritic group of steels. This steel is known for its good corrosion resistance and formability, coupled with practical mechanical properties. It can be used in certain chemical applications.
Grade 430F stainless steel is usually provided in bar form for use in automatic screw machines. Grade 434 has similar properties to grade 430, although it is a molybdenum-bearing version that enhances corrosion resistance.
Chemical Composition
Chemical compositions of grade 430 stainless steels:
Grade C Mn Si P S Cr Mo Ni N
430 - 0.12 - 1 - 1 - 0.04 - 0.030 16 - 18 - - 0.50 -
430F - 0.12 - 1.25 - 1 - 0.06 0.15 - 16 - 18 - - -
Mechanical Properties
Grade Tensile Strength (MPa) min Yield Strength 0.2% Proof (MPa) min Elongation (% in 50mm) min Rockwell B (HR B) max Brinell (HB) max
430 483 310 22 85 183
430F 552 typical 379 typical 25 typical - 262
Physical Properties
Grade Density (kg/m³) Elastic Modulus (GPa) Mean Coefficient of Thermal Expansion (μm/m/°C) Thermal Conductivity (W/m.K) Specific Heat 0-100°C (J/kg.K) Electrical Resistivity (nΩ.m)
430 7750 200 10.4 (0-100°C)
11.0 (0-315°C)
11.4 (0-538°C)		 26.1 (at 100°C)
26.3 (at 500°C)		 460 600
430F 7750 200 10.4 (0-100°C)
11.0 (0-315°C)
11.4 (0-538°C)		 26.1 (at 100°C)
26.3 (at 500°C)		 460 600
Applications
  • Dish washer linings
  • Refrigerator cabinet panels
  • Element supports and fasteners
  • Stove trim rings and chimney liners
  • Automotive trim and lashing wires

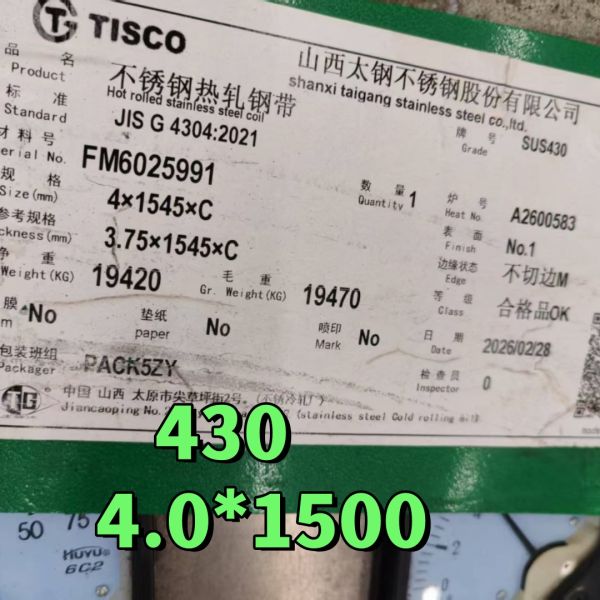

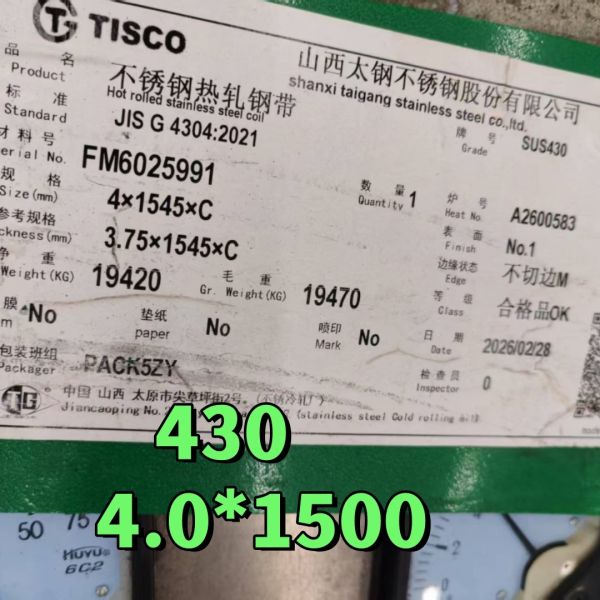

Product Photos
Hot Rolled No. 1 Finish Grade 430 Stainless Steel Plate 3.0 - 10.0mm SS 430 Plate from TISCOHot Rolled No. 1 Finish Grade 430 Stainless Steel Plate 3.0 - 10.0mm SS 430 Plate from TISCO
